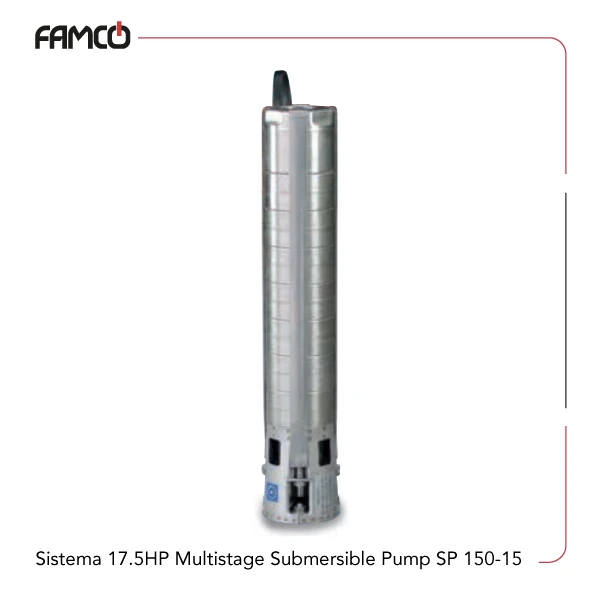

Sistema 17.5 HP Multistage Submersible Water Pump SP 150-15 Specifications
Sistema 17.5 HP multistage submersible water pump SP 150-15 is powered by a 13 kW (17.5 HP) motor, designed to handle demanding water transfer tasks. It can move between 150 and 700 liters per minute (9 to 42 cubic meters per hour), making it adaptable for different needs. The pump works across a range of heads from 65 to 166 meters, allowing it to perform well at varying depths. Its cast iron body is paired with a mechanical seal made of ceramic and graphite, which helps reduce wear during operation. The pump can be submerged up to 350 meters, making it suitable for deep well installations. This Sistema submersible pump handles liquids up to 35°C and comes with insulation class B and an IP68 rating, so it’s safe to operate underwater. Weighing 30.4 kg, it’s straightforward to install and remains stable during operation. This pump is a practical choice for water supply systems, irrigation, and industrial processes where consistent water movement is needed.
| Specification | Value |
| Power (kW) | 13 |
| Power (HP) | 17.5 |
| Flow rate (l/min) | 150-700 |
| Flow rate (m3/h) | 9-42 |
| Head Range (m) | 65-166 |
| DNM (“) | 3 |
| Weight (kg) | 30.4 |
| Maximum immersion depth (mt) | 350 |
| Liquid temperature (°C) | 35 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Mechanical seal | ceramic/graphite |
| Suitable for | 6″ deep wells (DN 150 mm) |

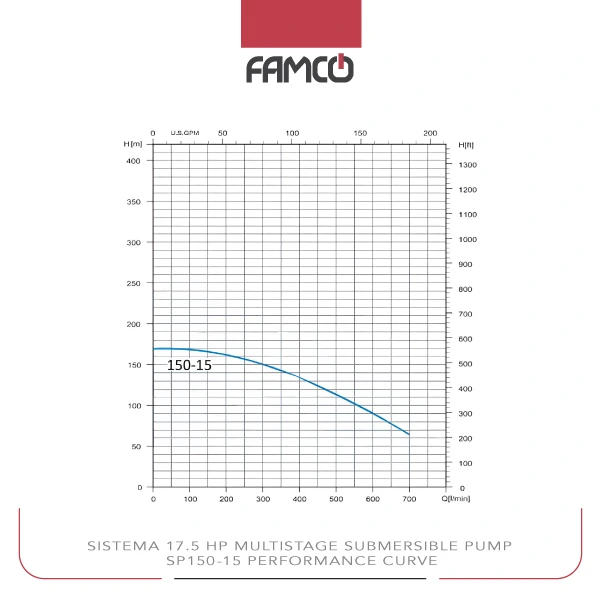

Sistema 17.5 HP Multistage Submersible Water Pump SP 150-15 Performance Data
| Flow rate (m3/h) | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 42 |
| Flow rate (L/min) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| Head (m) | 166 | 162 | 157 | 150 | 142 | 134 | 124 | 113 | 102 | 90 | 77 | 65 |
Sistema 17.5 HP Multistage Submersible Water Pump SP 150-15 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Sistema 17.5 HP Multistage Submersible Water Pump SP 150-15 Benefits
- High power for demanding tasks
- Durable cast iron body for longevity
- Wide flow rate and head range
- Reliable operation at great depths
Sistema 17.5 HP Multistage Submersible Water Pump SP 150-15 Price List
| No. | Name | Price |
| 1 | Sistema 17.5 HP Multistage Submersible Water Pump SP 150-15 Price | Contact us |
