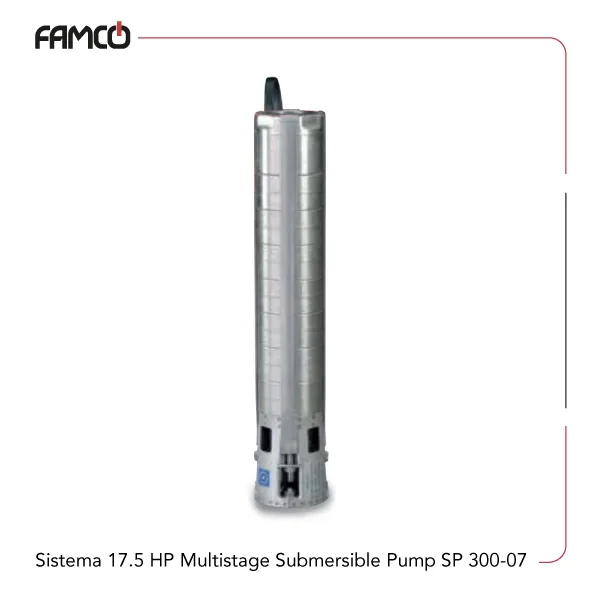

Sistema 17.5 HP Multistage Submersible Pump SP 300-07

13 kW (17.5 HP)

Single- and three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Sistema 17.5 HP Multistage Submersible Pump SP 300-07

Sistema 17.5 HP multistage submersible pump SP 300-07 delivers a commanding 13 kW (17.5 HP) of power, engineered to move impressive volumes of water with grace and consistency. Capable of handling flow rates from 18 to 78 m³/h (300 to 1300 l/min), it adapts seamlessly to shifting demands, whether for steady supply or high-capacity transfer. Its head range of 29 to 94 meters gives it the strength to rise to challenging applications, ensuring water is lifted and delivered with precision. More than numbers, this pump is about turning raw energy into a smooth, dependable flow where it’s needed most.

Sistema 17.5 HP Multistage Submersible Pump SP 300-07 Specifications

Sistema 17.5 HP multistage submersible pump SP 300-07 is powered by a 13 kW (17.5 HP) motor, delivering flow rates between 18 and 78 cubic meters per hour (300 to 1300 liters per minute). It produces a head range of 29 to 94 meters, making it well-suited for jobs that call for steady pressure. This Sistema submersible pump can handle liquids up to 35°C and operate with sand concentrations of up to 50 grams per cubic meter. Its cast iron body gives it solid construction, while insulation class B helps manage heat during operation. With an IP68 rating, it is fully protected against dust and water. Despite its strength, the pump weighs only 20.6 kilograms, which makes it easier to handle compared to others in its class. Altogether, it’s built for environments where consistent output and dependable performance are important.

Sistema 17.5 HP Multistage Submersible Pump SP 300-07

Specification Value
Power (kW) 13
Power (HP) 17.5
Flow rate (m3/h) 18-78
Flow rate (l/min) 300-1300
Head Range (m) 29-94
Maximum Liquid Temperature (°C) 35
Maximum Sand Content 50 g/m3
Insulation Class B
Protection degree IP68
Pump Body Cast iron
Weight (kg) 20.6

Sistema 17.5 HP Multistage Submersible Pump SP 300-07 Performance Data

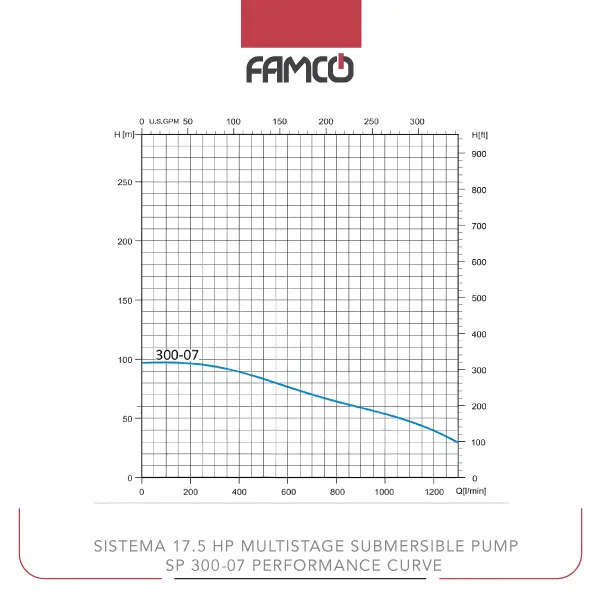

Sistema 17.5 HP Multistage Submersible Pump SP 300-07 Performance Curve

Flow rate (m3/h) 18 21 24 27 30 36 42 48 54 60 66 72 78
Flow rate (l/min) 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300
Head (m) 94 92 88 86 84 77 70 64 59 54 47 40 29

Sistema 17.5 HP Multistage Submersible Pump SP 300-07 Applications

  • Water transfer in industrial settings
  • Irrigation systems for agriculture
  • Drainage and flood control
  • Construction site water management



Sistema 17.5 HP Multistage Submersible Pump SP 300-07 Benefits

  • High power for demanding tasks
  • Durable cast iron body ensures longevity
  • Wide flow and head range for versatility
  • IP68 protection for reliable operation in harsh environments



Sistema 17.5 HP Multistage Submersible Pump SP 300-07 Price List

No. Name Price
1 Sistema 17.5 HP Multistage Submersible Pump SP 300-07 Price Contact us
