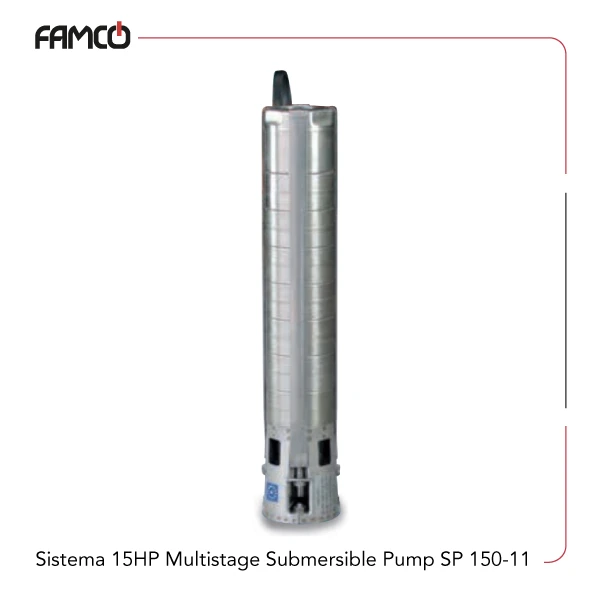

Sistema 15 HP Multistage Submersible Water Pump SP 150-11

11 kW (15 HP)

Single- and three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Sistema 15 HP Multistage Submersible Water Pump SP 150-11

With 11 kW of power (15 HP) driving it, Sistema 15 HP multistage submersible water pump SP 150-11 delivers a strong and steady performance underwater. It moves between 150 and 700 liters per minute (9–42 m³/h), making it adaptable whether the job demands a gentle stream or a powerful surge. Its head range of 47 to 120 meters gives it the lift needed to keep water flowing with purpose, whether for irrigation, supply, or demanding fieldwork. A solid partner in motion, it transforms raw energy into smooth, efficient flow where it matters most.

Related Products

Sistema 15 HP Multistage Submersible Water Pump SP 150-11 Specifications

 Sistema 15 HP multistage submersible water pump SP 150-11 is equipped with an 11 kW (15 HP) motor, built to move water efficiently in a wide range of applications. It delivers flow rates between 150 and 700 liters per minute (9 to 42 cubic meters per hour), making it a practical choice for anything from lighter pumping needs to larger water transfer jobs. This Sistema submersible pump can generate a head from 47 up to 120 meters, giving it flexibility for different pumping depths. Its cast iron body provides solid construction for demanding conditions, while the ceramic and graphite mechanical seal helps prevent leaks and keeps maintenance to a minimum. It can operate at immersion depths of up to 350 meters, making it well-suited for deep well use. The pump works within a liquid temperature limit of 35°C and carries insulation class B for electrical safety. With an IP68 protection rating, it is fully guarded against dust and water entry, ensuring it can run continuously while submerged. The discharge connection is 3 inches (DNM), fitting common pipe systems, and the pump weighs about 23.6 kg, which keeps installation and handling manageable.

Sistema 15 HP Multistage Submersible Pump SP 150-11

Specification Value
Power (kW) 11
Power (HP) 15
Flow rate (l/min) 150-700
Flow rate (m3/h) 9-42
Head Range (m) 47-120
DNM (“) 3
Weight (kg) 23.6
Maximum immersion depth (mt) 350
Liquid temperature (°C) 35
Insulation class B
Protection degree IP68
Body Cast iron
Mechanical seal ceramic/graphite
Suitable for 6″ deep wells (DN 150 mm)

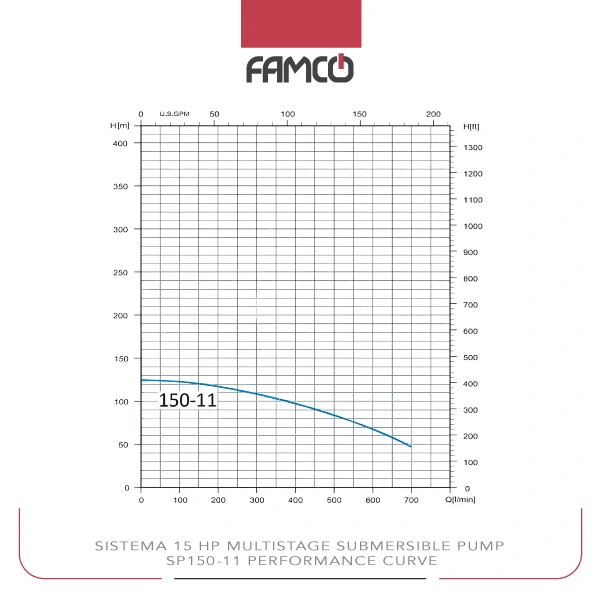

Sistema 15 HP Multistage Submersible Water Pump SP 150-11 Performance Curve

Sistema 15 HP Multistage Submersible Pump SP 150-11 Performance Curve

Flow rate (m3/h) 9 12 15 18 21 24 27 30 33 36 39 42
Flow rate (L/min) 150 200 250 300 350 400 450 500 550 600 650 700
Head (m) 120 117 112 108 102 97 90 83 76 67 57 47

Sistema 15 HP Multistage Submersible Water Pump SP 150-11 Applications

  • Deep well water extraction
  • Irrigation systems
  • Industrial water transfer
  • Municipal water supply



Sistema 15 HP Multistage Submersible Water Pump SP 150-11 Benefits

  • High efficiency with powerful motor
  • Durable cast iron construction
  • Suitable for deep well applications
  • Fully protected against dust and water ingress



Sistema 15 HP Multistage Submersible Water Pump SP 150-11 Price List

No. Name Price
1 Sistema 15 HP Multistage Submersible Water Pump SP 150-11 Price Contact us
