Sistema 15 HP Multistage Submersible Pump SP 90-20 Specifications
Sistema 15 HP multistage submersible pump SP 90-20 features a powerful 11 kW (15 HP) motor, suitable for demanding applications. It can handle flow rates from 50 to 383 liters per minute, which translates to 3 to 23 cubic meters per hour. The head range varies from 95 meters up to 216 meters, making it capable of lifting liquids over long distances or high elevations. The pump has a DNM connection size of 2.5 inches, ensuring compatibility with various piping systems. This Sistema submersible pump weighs 32.5 kilograms, making it relatively lightweight for its power. It can operate at a maximum immersion depth of 350 meters, ideal for deep well or sump applications. The maximum liquid temperature it can handle is 35°C, suitable for most water and light liquid applications. It is designed to work with liquids containing up to 50 grams of sand per cubic meter, which is common in groundwater or untreated water sources. The pump’s body is made of durable cast iron, providing strength and longevity, while the motor shaft is crafted from stainless steel AISI 304, offering corrosion resistance and reliability. The insulation class IP68 ensures the pump is dust-tight and protected against continuous immersion in water, making it suitable for harsh environments and outdoor use.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Flow rate range (l/min) | 50-383 |
| Flow rate range (m3/h) | 3-23 |
| Head range (m) | 95-216 |
| DNM | 2″½ |
| Weight (kg) | 32.5 |
| Maximum immersion depth (mt) | 350 |
| Max Liquid temperature (°C) | 35 |
| Sand content (g/m3) | 50 |
| Insulation class | IP68 |
| Body | Cast iron |
| Motor shaft | stainless steel AISI 304 |

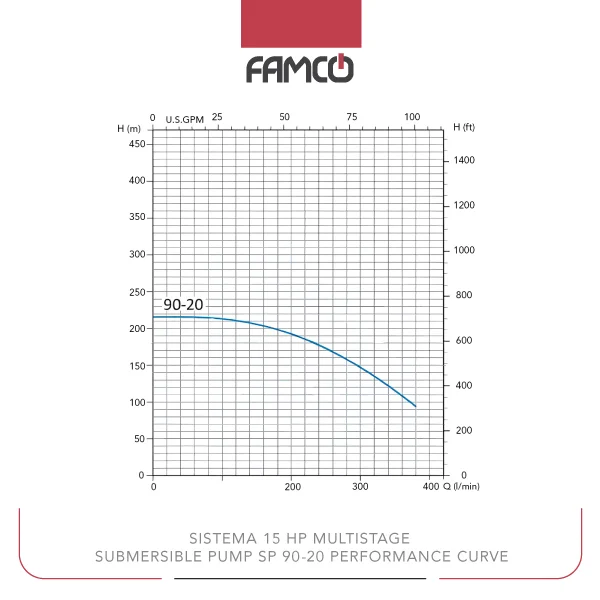

Sistema 15 HP Multistage Submersible Pump SP 90-20 Performance Curve
| Flow rate (l/min) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| Flow rate (m3/h) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| Head (m) | 216 | 213 | 206 | 192 | 173 | 147 | 116 | 95 |
Sistema 15 HP Multistage Submersible Pump SP 90-20 Applications
- Deep well water extraction
- Irrigation systems
- Industrial liquid transfer
- Sump and drainage systems
Sistema 15 HP Multistage Submersible Pump SP 90-20 Benefits
- High power for demanding tasks
- Durable cast iron body for longevity
- Corrosion-resistant stainless steel shaft
- Suitable for deep immersion and high head applications
Sistema 15 HP Multistage Submersible Pump SP 90-20 Price List
| No. | Name | Price |
| 1 | Sistema 15 HP Multistage Submersible Pump SP 90-20 Price | Contact us |
