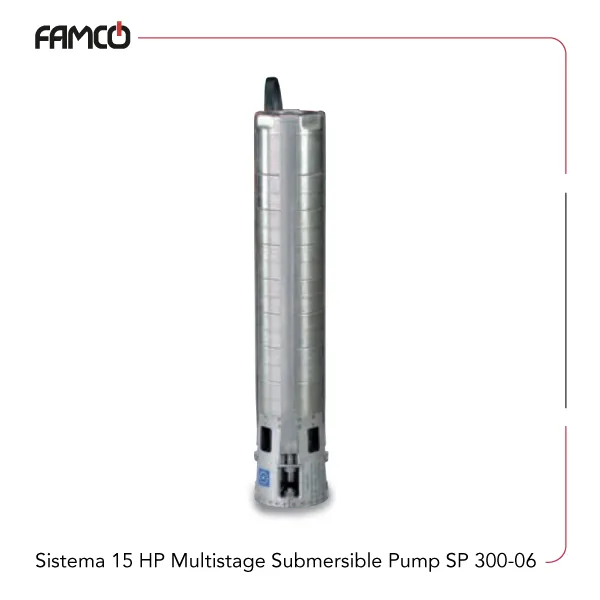

Sistema 15 HP Multistage Submersible Pump SP 300-06

11 kW (15 HP)

Single- and three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Sistema 15 HP Multistage Submersible Pump SP 300-06

With 11 kW (15 HP) of drive behind it, Sistema 15 HP multistage submersible pump SP 300-06 is built to move water with purpose; shifting anywhere between 300 and 1300 liters per minute, depending on demand. Its flow adapts with ease, covering a range of 18 to 78 cubic meters per hour, while delivering lift across heads from 23 to 79 meters. More than just numbers, this machine works like a steady heartbeat beneath the surface, channeling energy into motion and ensuring that water always finds its way forward.

Related Products

Sistema 15 HP Multistage Submersible Pump SP 300-06 Specifications

Sistema 15 HP multistage submersible pump SP 300-06 runs on a strong 11 kW (15 HP) motor and can move between 18 and 78 cubic meters of water per hour, or 300 to 1300 liters per minute. It can push water to heights ranging from 23 to 79 meters, making it useful in setups where higher pressure is needed. This Sistema submersible pump works with liquids up to 35°C and can handle sand concentrations of up to 50 grams per cubic meter without issue. Its cast iron body gives it solid construction for regular use. With insulation class B, the motor is well protected against overheating, and the IP68 rating means it’s completely sealed against dust and water. At 18.3 kilograms, it’s relatively light for its output, which makes handling, installation, and maintenance more manageable.

Sistema 15 HP Multistage Submersible Pump SP 300-06

Specification Value
Power (kW) 11
Power (HP) 15
Flow rate (m3/h) 18-78
Flow rate (l/min) 300-1300
Head Range (m) 23-79
Maximum Liquid Temperature (°C) 35
Maximum Sand Content 50 g/m3
Insulation Class B
Protection degree IP68
Pump Body Cast iron
Weight (kg) 18.3

Sistema 15 HP Multistage Submersible Pump SP 300-06 Performance Data

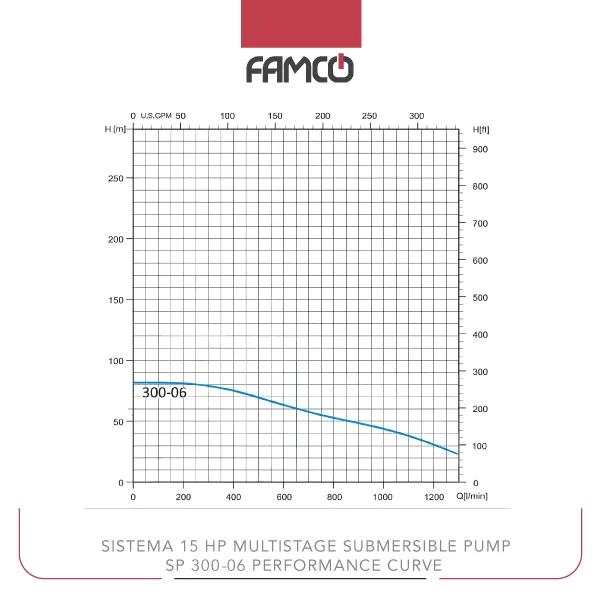

Sistema 15 HP Multistage Submersible Pump SP 300-06 Performance Curve

Flow rate (m3/h) 18 21 24 27 30 36 42 48 54 60 66 72 78
Flow rate (l/min) 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300
Head (m) 79 78 76 73 70 64 58 53 48 44 38 32 23

Sistema 15 HP Multistage Submersible Pump SP 300-06 Applications

  • Water transfer in industrial settings
  • Irrigation systems for agriculture
  • Flood control and drainage
  • Municipal water supply systems



Sistema 15 HP Multistage Submersible Pump SP 300-06 Benefits

  • High power for demanding tasks
  • Durable cast iron construction
  • Protection against dust and water
  • Efficient operation with sand content



Sistema 15 HP Multistage Submersible Pump SP 300-06 Price List

No. Name Price
1 Sistema 15 HP Multistage Submersible Pump SP 300-06 Price Contact us
