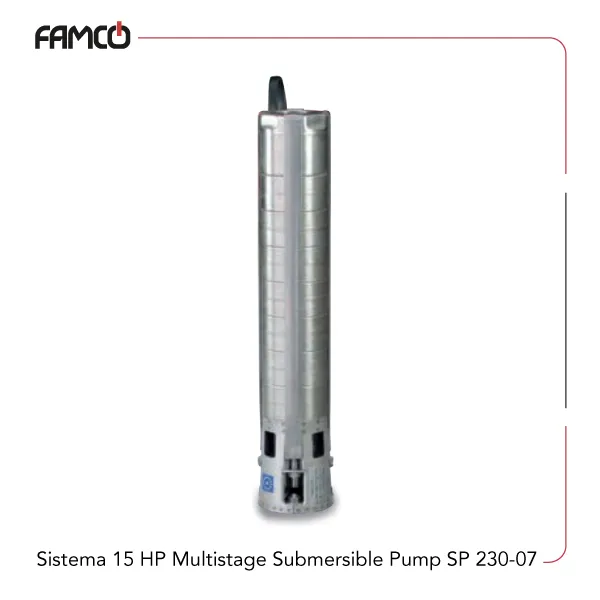

Sistema 15 HP Multistage Submersible Pump SP 230-07 Specifications
Sistema 15 HP multistage submersible pump SP 230-07 is equipped with an 11 kW (15 HP) motor, giving it the strength to handle demanding jobs. It delivers a flow rate between 200 and 1000 liters per minute (12 to 60 cubic meters per hour), making it adaptable to different fluid transfer tasks. The head range spans 37 to 94 meters, providing the pressure needed for a wide range of operations. This Sistema submersible pump comes with a 3-inch DNM connection, making it easy to integrate with common piping systems. The pump weighs about 20.6 kg and has a cast iron body. It can run with liquids up to 35°C and manages sand content up to 50 grams per cubic meter. For safety in operation, it is built with insulation class B and carries an IP68 protection rating, meaning it’s sealed against dust and resistant to water; well suited for challenging environments.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Flow rate range (l/min) | 200-1000 |
| Flow rate range (m3/h) | 12-60 |
| Head Range (m) | 37-94 |
| DNM | 3″ |
| Weight (kg) | 20.6 |
| Liquid temperature | 35°C |
| Sand content | 50 g/m3 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | cast iron |

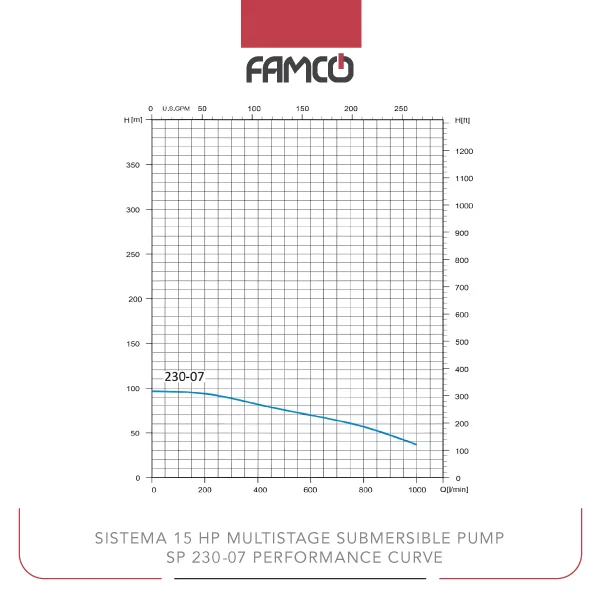

Sistema 15 HP Multistage Submersible Pump SP 230-07 Performance Data
| Flow rate (m3/h) | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 36 | 42 | 48 | 54 | 60 |
| Flow rate (l/min) | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) | 94 | 92 | 88 | 85 | 82 | 79 | 76 | 70 | 64 | 57 | 47 | 37 |
Sistema 15 HP Multistage Submersible Pump SP 230-07 Applications
- Water supply systems
- Irrigation and agriculture
- Industrial fluid transfer
- Construction site water management
Sistema 15 HP Multistage Submersible Pump SP 230-07 Benefits
- High power for demanding tasks
- Durable cast iron body for longevity
- Wide flow and head ranges for versatility
- Excellent protection against dust and water
Sistema 15 HP Multistage Submersible Pump SP 230-07 Price List
| No. | Name | Price |
| 1 | Sistema 15 HP Multistage Submersible Pump SP 230-07 Price | Contact us |
