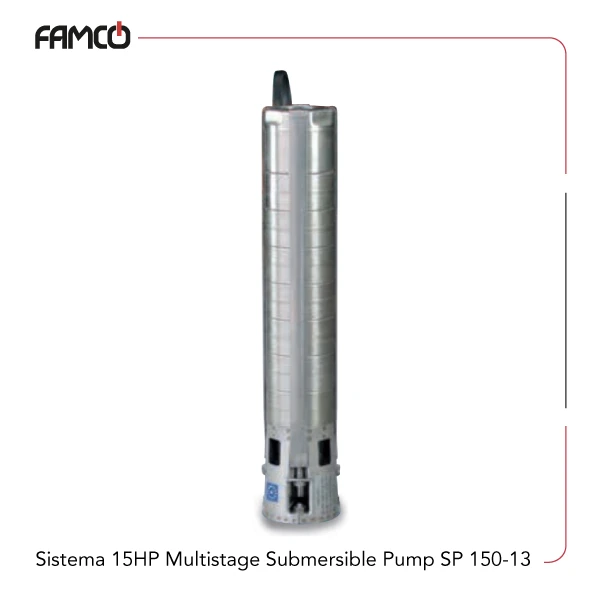

Sistema 15 HP Multistage Submersible Pump SP 150-13 Specifications
Sistema multistage submersible pump SP 150-13 is a 15 HP (11 kW) multistage submersible pump built for strong performance in water extraction. It can move between 150 and 700 liters per minute (9 to 42 cubic meters per hour) and works within a head range of 55 to 140 meters, making it a solid option for deep well applications. With a 3-inch DNM outlet, it connects easily to standard piping systems. Despite its power, this Sistema submersible pump weighs just 27 kg, which makes it easier to handle and install. It can operate at depths of up to 350 meters and is designed to run efficiently with water temperatures up to 35°C. The pump’s body is made of cast iron, and its mechanical seal combines ceramic and graphite for effective sealing. The motor uses class B insulation for thermal protection, and its IP68 rating allows it to run fully submerged without concern for water or dust ingress. Designed for 6-inch wells with a 150 mm diameter, the SP 150-13 is a practical choice for water supply and irrigation projects that need a consistent output.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Flow rate (l/min) | 150-700 |
| Flow rate (m3/h) | 9-42 |
| Head Range (m) | 55-140 |
| DNM (“) | 3 |
| Weight (kg) | 27 |
| Maximum immersion depth (mt) | 350 |
| Liquid temperature (°C) | 35 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Mechanical seal | ceramic/graphite |
| Suitable for | 6″ deep wells (DN 150 mm) |
Sistema 15 HP Multistage Submersible Pump SP 150-13 Performance Data
| Flow rate (m3/h) | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 42 |
| Flow rate (L/min) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| Head (m) | 140 | 137 | 132 | 127 | 120 | 113 | 105 | 97 | 87 | 77 | 66 | 55 |
Sistema 15 HP Multistage Submersible Pump SP 150-13 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water projects
Sistema 15 HP Multistage Submersible Pump SP 150-13 Benefits
- High efficiency with powerful motor
- Suitable for deep well installations up to 350 meters
- Durable cast iron body for long-term use
- Resistant to dust and water with IP68 rating
Sistema 15 HP Multistage Submersible Pump SP 150-13 Price List
| No. | Name | Price |
| 1 | Sistema 15 HP Multistage Submersible Pump SP 150-13 Price | Contact us |
