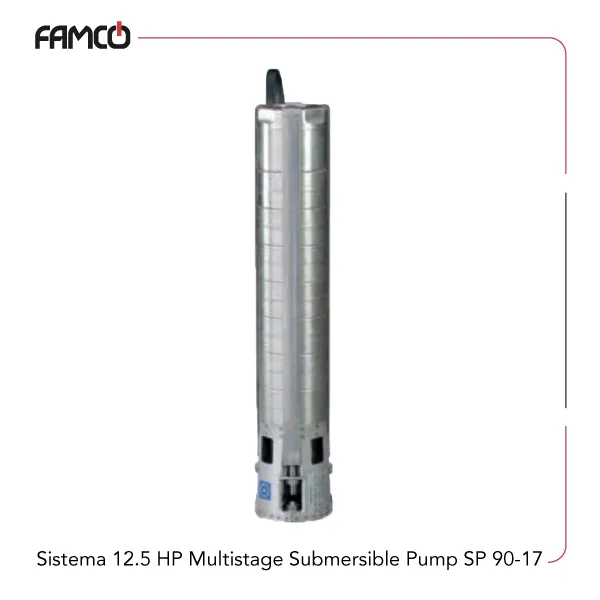

Sistema 12.5 HP Multistage Submersible Pump SP 90-17 Specifications
Sistema 12.5 HP multistage submersible pump SP 90-17 features a powerful 9.3 kW (12.5 HP) motor, designed for demanding applications. It can handle flow rates from 50 to 383 liters per minute, equivalent to 3 to 23 cubic meters per hour. The pump’s head ranges from 80 meters up to 184 meters, making it suitable for various lifting needs. This Sistema submersible pump has a DNM connection size of 2.5 inches, and weighs approximately 28.2 kilograms, ensuring durability and portability. The maximum immersion depth is 350 meters, allowing deep submersion in water sources. It operates efficiently with a maximum liquid temperature of 35°C and can tolerate sand content up to 50 grams per cubic meter. The pump’s body is made of cast iron, providing strength and corrosion resistance, while the motor shaft is crafted from stainless steel AISI 304 for durability and corrosion resistance. The insulation class IP68 ensures the pump is well-protected against dust and water ingress, suitable for continuous operation in harsh environments.
| Specification | Value |
| Power (kW) | 9.3 |
| Power (HP) | 12.5 |
| Flow rate range (l/min) | 50-383 |
| Flow rate range (m3/h) | 3-23 |
| Head range (m) | 80-184 |
| DNM | 2″½ |
| Weight (kg) | 28.2 |
| Maximum immersion depth (mt) | 350 |
| Max Liquid temperature (°C) | 35 |
| Sand content (g/m3) | 50 |
| Insulation class | IP68 |
| Body | Cast iron |
| Motor shaft | stainless steel AISI 304 |
Sistema 12.5 HP Multistage Submersible Pump SP 90-17 Performance Curve
| Flow rate (l/min) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| Flow rate (m3/h) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| Head (m) | 184 | 182 | 175 | 163 | 147 | 126 | 100 | 80 |
Sistema 12.5 HP Multistage Submersible Pump SP 90-17 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
Sistema 12.5 HP Multistage Submersible Pump SP 90-17 Benefits
- High power for demanding tasks
- Durable cast iron construction
- Corrosion-resistant stainless steel shaft
- Suitable for deep immersion and tough environments
Sistema 12.5 HP Multistage Submersible Pump SP 90-17 Price List
| No. | Name | Price |
| 1 | Sistema 12.5 HP Multistage Submersible Pump SP 90-17 Price | Contact us |
