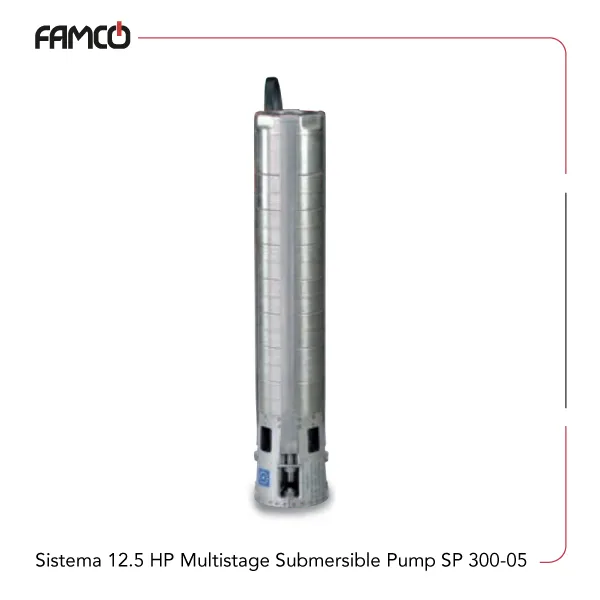

Sistema 12.5 HP Multistage Submersible Pump SP 300-05

9.3 kW (12.5 HP)

Single- and three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Sistema 12.5 HP Multistage Submersible Water Pump SP 300-05

Sistema 12.5 HP multistage submersible water pump SP 300-05 is built with the strength to move vast volumes of water with ease, offering a flow range from 300 to 1300 liters per minute. With a head span of 19 to 67 meters, it balances force and reach, ensuring water is lifted and delivered precisely where it’s needed. Driven by 9.3 kW (12.5 HP) of power, it channels raw energy into steady performance, making it a reliable partner in demanding applications where consistency and capacity matter most.

Related Products

Sistema 12.5 HP Multistage Submersible Water Pump SP 300-05 Specifications

Sistema 12.5 HP multistage submersible water pump SP 300-05 is powered by a 9.3 kW (12.5 HP) motor, delivering flow rates from 18 to 78 cubic meters per hour, or 300 to 1300 liters per minute. It can push water to heights between 19 and 67 meters, making it a good fit for demanding jobs. This Sistema submersible pump can handle liquid temperatures up to 35°C and manage sand content of up to 50 grams per cubic meter, which means it can keep working even in sandy water. Its cast iron body gives it a solid build, while the insulation class B and IP68 protection rating ensure safe use and protection against dust and water—ideal for outdoor and heavy-use environments.

Sistema 12.5 HP Multistage Submersible Pump SP 300-05

Specification Value
Power (kW) 9.3
Power (HP) 12.5
Flow rate (m3/h) 18-78
Flow rate (l/min) 300-1300
Head Range (m) 19-67
Maximum Liquid Temperature (°C) 35
Maximum Sand Content 50 g/m3
Insulation Class B
Protection degree IP68
Pump Body Cast iron
Weight (kg) 16

Sistema 12.5 HP Multistage Submersible Water Pump SP 300-05 Performance Data

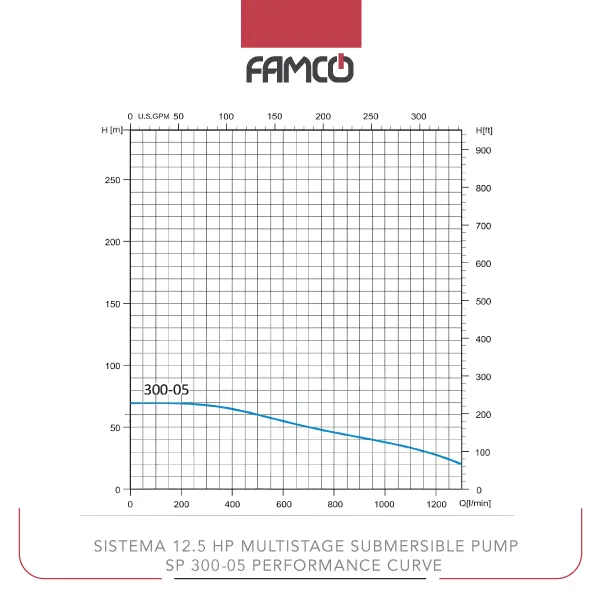

Sistema 12.5 HP Multistage Submersible Pump SP 300-05 Performance Curve

Flow rate (m3/h) 18 21 24 27 30 36 42 48 54 60 66 72 78
Flow rate (l/min) 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300
Head (m) 67 66 64 62 60 55 50 46 42 38 33 27 19

Sistema 12.5 HP Multistage Submersible Water Pump SP 300-05 Applications

  • Water transfer in industrial plants
  • Irrigation systems for agriculture
  • Flood control and drainage
  • Construction site water management



Sistema 12.5 HP Multistage Submersible Water Pump SP 300-05 Benefits

  • High power for demanding tasks
  • Durable cast iron construction
  • Resistant to dust and water ingress
  • Flexible flow and head options



Sistema 12.5 HP Multistage Submersible Water Pump SP 300-05 Price List

No. Name Price
1 Sistema 12.5 HP Multistage Submersible Water Pump SP 300-05 Price Contact us
Applications

, ,

Brand

Power (HP)

Power (kW)

Maximum Liquid Temperature (°C)

Insulation Class

Degree of Protection

Pump Body

Weight (kg)
