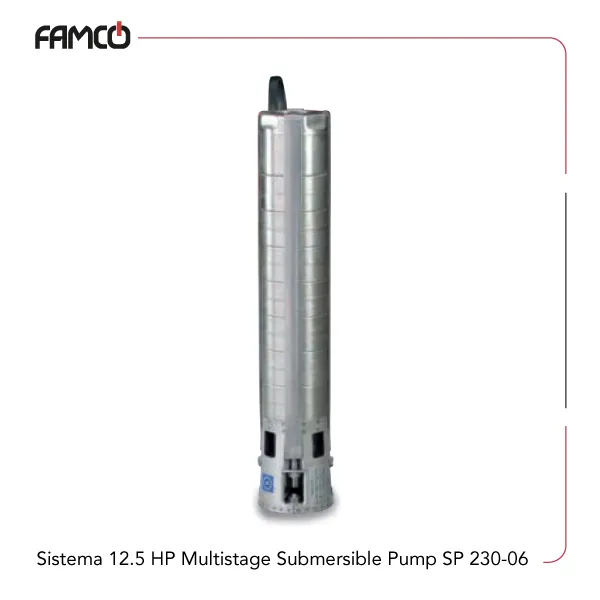

Sistema 12.5 HP Multistage Submersible Pump SP 230-06 Specifications
Sistema 12.5 HP multistage submersible pump SP 230-06 is powered by a 9.3 kW (12.5 HP) motor, delivering flow rates between 200 and 1000 liters per minute; that’s about 12 to 60 cubic meters per hour. It works well within a head range of 30 to 80 meters, giving it the flexibility to cover a wide range of demanding tasks. This Sistema submersible pump body is made from cast iron and has an IP68 rating, meaning it’s completely sealed against dust and can run while fully submerged in water. With insulation class B, it maintains safe thermal performance during operation. It’s built to handle liquids up to 35°C and can manage sand content up to 50 grams per cubic meter, making it a practical choice even in water that isn’t perfectly clean. The pump has a 3-inch DNM size and weighs about 18.3 kilograms, keeping it relatively light compared to its output power.
| Specification | Value |
| Power (kW) | 9.3 |
| Power (HP) | 12.5 |
| Flow rate range (l/min) | 200-1000 |
| Flow rate range (m3/h) | 12-60 |
| Head Range (m) | 30-80 |
| DNM | 3″ |
| Weight (kg) | 18.3 |
| Liquid temperature | 35°C |
| Sand content | 50 g/m3 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | cast iron |

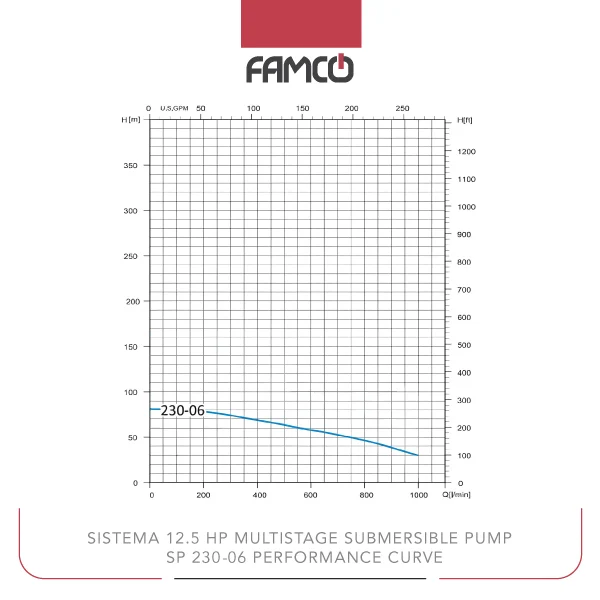

Sistema 12.5 HP Multistage Submersible Pump SP 230-06 Performance Data
| Flow rate (m3/h) | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 36 | 42 | 48 | 54 | 60 |
| Flow rate (l/min) | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) | 80 | 78 | 75 | 72 | 70 | 68 | 65 | 59 | 54 | 48 | 40 | 30 |
Sistema 12.5 HP Multistage Submersible Pump SP 230-06 Applications
- Irrigation systems in agriculture
- Industrial water transfer
- Drainage and flood control
- Water supply for construction sites
Sistema 12.5 HP Multistage Submersible Pump SP 230-06 Benefits
- High power output for demanding tasks
- Durable cast iron construction
- Fully protected against dust and water (IP68)
- Flexible flow and head range for various needs
Sistema 12.5 HP Multistage Submersible Pump SP 230-06 Price List
| No. | Name | Price |
| 1 | Sistema 12.5 HP Multistage Submersible Pump SP 230-06 Price | Contact us |
