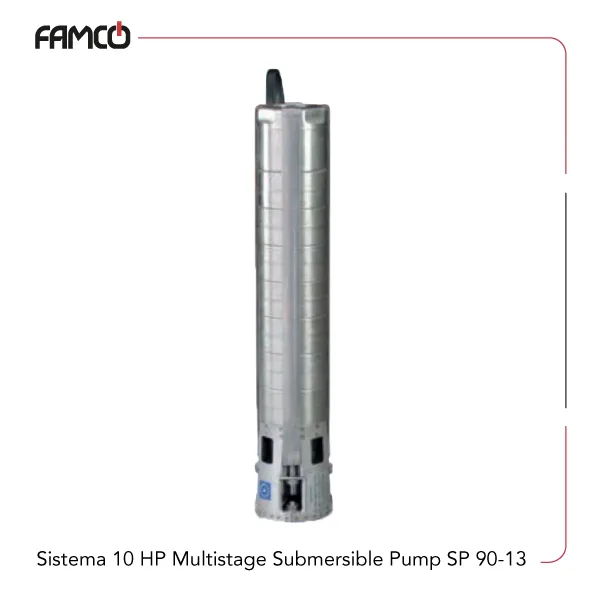

Sistema 10 HP Multistage Submersible Pump SP 90-13 Specifications
Sistema 10 HP multistage submersible pump SP 90-13 features a powerful 7.5 kW (10 HP) motor, designed for efficient water transfer and pumping tasks. It can handle flow rates from 50 to 383 liters per minute, equivalent to 3 to 23 cubic meters per hour, making it suitable for various applications. The head range varies from 60 to 141 meters, providing strong lifting capabilities. The pump’s body is made of durable cast iron, ensuring longevity and resistance to corrosion. Its motor shaft is crafted from stainless steel AISI 304, offering high strength and corrosion resistance. The device supports a maximum immersion depth of 350 meters, allowing deep submersion in water sources. This Sistema submersible pump can operate with liquid temperatures up to 35°C and can handle sand content up to 50 grams per cubic meter. The pump is rated with an IP68 insulation class, making it suitable for harsh environments and prolonged exposure to water. The inlet diameter (DNM) is 2.5 inches, facilitating efficient water intake. The overall weight of the pump is 22.4 kilograms, making it relatively easy to install and maintain.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Flow rate range (l/min) | 50-383 |
| Flow rate range (m3/h) | 3-23 |
| Head range (m) | 60-141 |
| DNM | 2″½ |
| Weight (kg) | 22.4 |
| Maximum immersion depth (mt) | 350 |
| Maximum Liquid temperature (°C) | 35 |
| Sand content (g/m3) | 50 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Motor shaft | stainless steel AISI 304 |

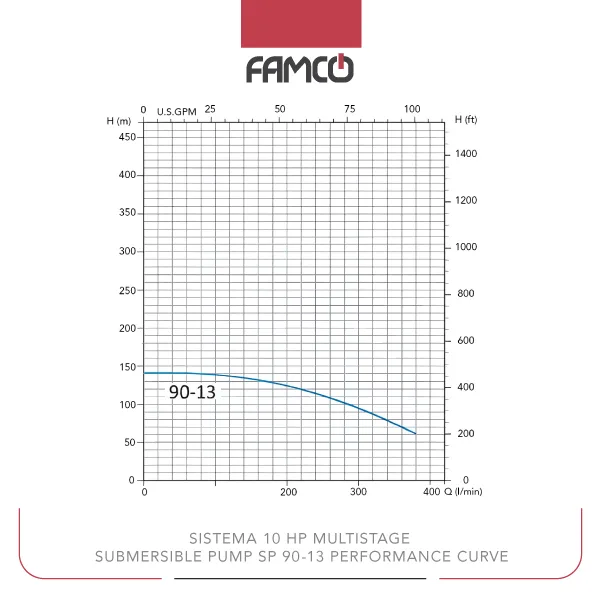

Sistema 10 HP Multistage Submersible Pump SP 90-13 Performance Curve
| Flow rate (l/min) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| Flow rate (m3/h) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| Head (m) | 141 | 139 | 133 | 124 | 112 | 95 | 75 | 60 |
Sistema 10 HP Multistage Submersible Pump SP 90-13 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Sistema 10 HP Multistage Submersible Pump SP 90-13 Benefits
- High efficiency with powerful motor
- Durable cast iron construction
- Corrosion-resistant stainless steel shaft
- Suitable for deep immersion and harsh environments
Sistema 10 HP Multistage Submersible Pump SP 90-13 Price List
| No. | Name | Price |
| 1 | Sistema 10 HP Multistage Submersible Pump SP 90-13 Price | Contact us |
