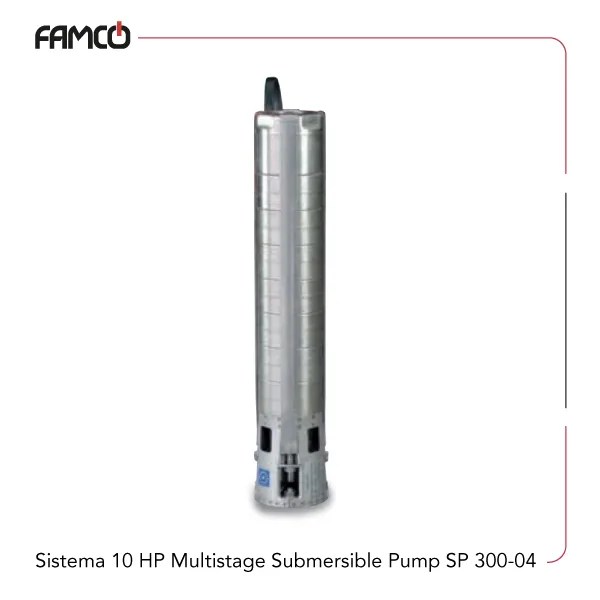

Sistema 10 HP Multistage Submersible Pump SP 300-04 Specifications
Sistema 10 HP multistage submersible pump SP 300-04 is powered by a 7.5 kW (10 HP) motor, delivering a flow rate between 18 and 78 cubic meters per hour, or 300 to 1,300 liters per minute. It can lift liquids to heights ranging from 14 to 53 meters. This Sistema submersible pump works efficiently with liquids up to 35°C and can handle sand content up to 50 grams per cubic meter, which is useful for slightly contaminated fluids. Its cast iron body provides solid construction, while insulation class B offers thermal protection. With an IP68 rating, the pump is protected against dust and water, so it can be used in outdoor or challenging conditions.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Flow rate (m3/h) | 18-78 |
| Flow rate (l/min) | 300-1300 |
| Head Range (m) | 14-53 |
| Maximum Liquid Temperature (°C) | 35 |
| Maximum Sand Content | 50 g/m3 |
| Insulation Class | B |
| Protection degree | IP68 |
| Pump Body | Cast iron |

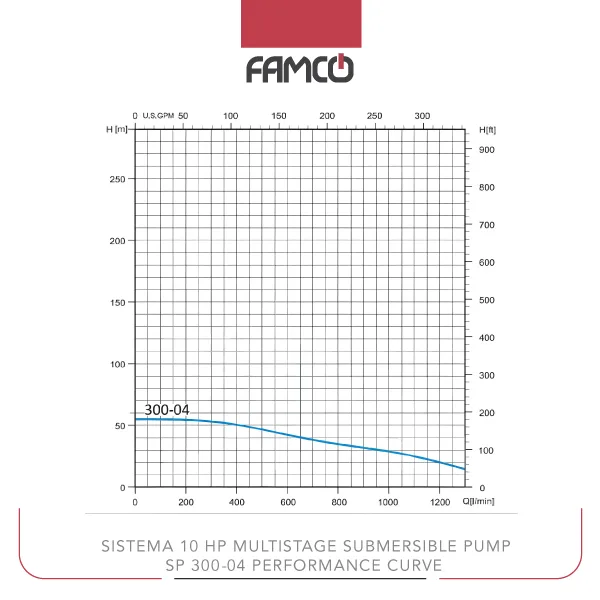

Sistema 10 HP Multistage Submersible Pump SP 300-04 Performance Data
| Flow rate (m3/h) | 18 | 21 | 24 | 27 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 78 |
| Flow rate (l/min) | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
| Head (m) | 53 | 52 | 51 | 48 | 47 | 43 | 38 | 35 | 32 | 28 | 25 | 20 | 14 |
Sistema 10 HP Multistage Submersible Pump SP 300-04 Applications
- Water supply systems
- Irrigation for agriculture
- Industrial fluid transfer
- Drainage and flood control
Sistema 10 HP Multistage Submersible Pump SP 300-04 Benefits
- High efficiency with adjustable flow and head
- Durable cast iron construction for longevity
- Resistant to dust and water ingress (IP68)
- Handles sand content up to 50 g/m3 for versatile use
Sistema 10 HP Multistage Submersible Pump SP 300-04 Price List
| No. | Name | Price |
| 1 | Sistema 10 HP Multistage Submersible Pump SP 300-04 Price | Contact us |
