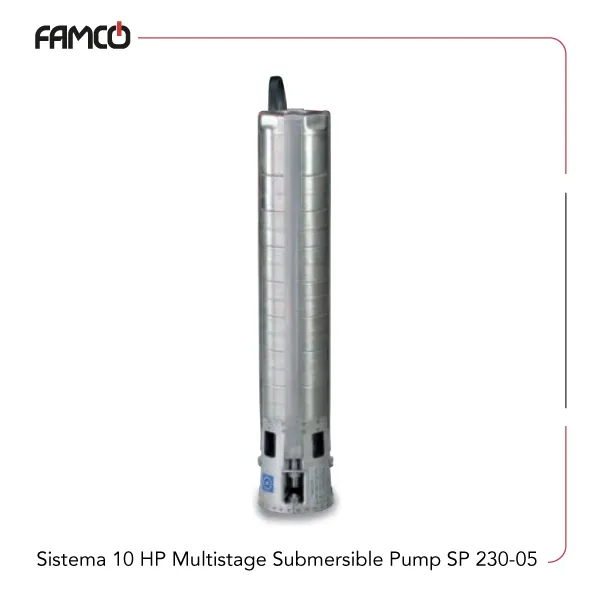

Sistema 10 HP Multistage Submersible Pump SP 230-05 Specifications
Sistema 10 HP multistage submersible pump SP 230-05 is powered by a 7.5 kW (10 HP) motor, giving it the strength to handle demanding jobs. It can move between 200 and 1000 liters of water per minute—that’s 12 to 60 cubic meters an hour—so it adapts well to different flow requirements. The head range is 24 to 65 meters, which means it can be set up for a variety of systems. It connects with a standard 3-inch DNM fitting, making it easy to integrate with existing piping. Despite its output, it weighs just 16 kg, which makes it easier to handle and install than you might expect for its size. This Sistema submersible pump is built to work with water up to 35°C and can handle sand content up to 50 grams per cubic meter, so it performs even when the water isn’t perfectly clean. With insulation class B, it has solid thermal protection, and the IP68 rating means it’s completely sealed against dust and water, so it can run safely outdoors or in harsher settings. The housing is made from cast iron, giving it a solid structure that holds up well under continuous use. Altogether, this pump offers strong performance for tasks like water transfer, irrigation, and industrial use, while staying compact and straightforward to work with.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Flow rate range (l/min) | 200-1000 |
| Flow rate range (m3/h) | 12-60 |
| Head Range (m) | 24-65 |
| DNM | 3″ |
| Weight (kg) | 16 |
| Liquid temperature | 35°C |
| Sand content | 50 g/m3 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | cast iron |

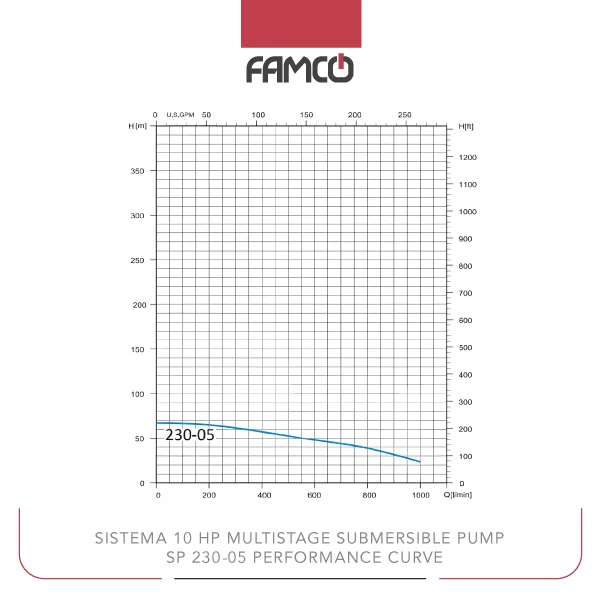

Sistema 10 HP Multistage Submersible Pump SP 230-05 Perormance Data
| Flow rate (m3/h) | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 36 | 42 | 48 | 54 | 60 |
| Flow rate (l/min) | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) | 65 | 63 | 61 | 59 | 57 | 55 | 53 | 48 | 44 | 39 | 32 | 24 |
Sistema 10 HP Multistage Submersible Pump SP 230-05 Applications
- Irrigation systems
- Water supply and distribution
- Industrial water transfer
- Construction site water management
Sistema 10 HP Multistage Submersible Pump SP 230-05 Benefits
- High power output for demanding tasks
- Durable cast iron construction
- Wide flow and head range for versatility
- Excellent protection against dust and water
Sistema 10 HP Multistage Submersible Pump SP 230-05 Price List
| No. | Name | Price |
| 1 | Sistema 10 HP Multistage Submersible Pump SP 230-05 Price | Contact us |
