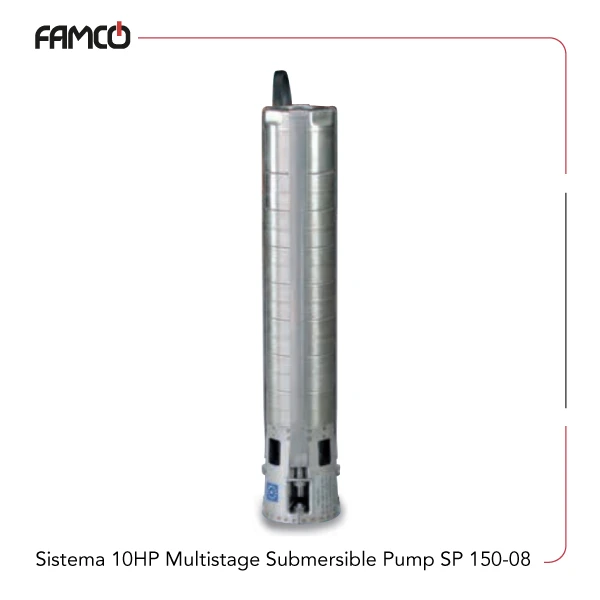

Sistema 10 HP Multistage Submersible Pump SP 150-08 Specifications
Sistema 10 HP multistage submersible pump SP 150-08 delivers 7.5 kW of power, equal to 10 HP, making it a strong option for demanding jobs. It handles flow rates from 150 to 700 liters per minute (9 to 42 cubic meters per hour), so it can adapt to different water transfer requirements. With a head range of 31 to 87 meters, this Sistema submersible pump works well across varying depths. The body is made of cast iron, and the mechanical seal uses ceramic and graphite components for consistent performance. Designed for immersion depths up to 350 meters, it is well-suited for deep well installations, especially in 6-inch wells with a diameter of 150 mm. It can operate in liquids up to 35°C, has an insulation class B, and carries an IP68 protection rating, keeping it safe from dust and water while underwater. Weighing 18.6 kg, the pump is straightforward to handle during installation and servicing.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Flow rate (l/min) | 150-700 |
| Flow rate (m3/h) | 9-42 |
| Head Range (m) | 31-87 |
| DNM (“) | 3 |
| Weight (kg) | 18.6 |
| Maximum immersion depth (mt) | 350 |
| Liquid temperature (°C) | 35 |
| Insulation class | B |
| Protection degree | IP68 |
| Body | Cast iron |
| Mechanical seal | ceramic/graphite |
| Suitable for | 6″ deep wells (DN 150 mm) |
Sistema 10 HP Multistage Submersible Pump SP 150-08 Performance Data
| Flow rate (m3/h) | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 42 |
| Flow rate (L/min) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| Head (m) | 87 | 84 | 81 | 78 | 73 | 68 | 64 | 58 | 53 | 46 | 38 | 31 |
Sistema 10 HP Multistage Submersible Pump SP 150-08 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
Sistema 10 HP Multistage Submersible Pump SP 150-08 Benefits
- High flow rate for efficient water transfer
- Deep immersion capability up to 350 meters
- Durable cast iron construction for longevity
- Reliable ceramic/graphite seal for leak prevention
Sistema 10 HP Multistage Submersible Pump SP 150-08 Price List
| No. | Name | Price |
| 1 | Sistema 10 HP Multistage Submersible Pump SP 150-08 Price | Contact us |
