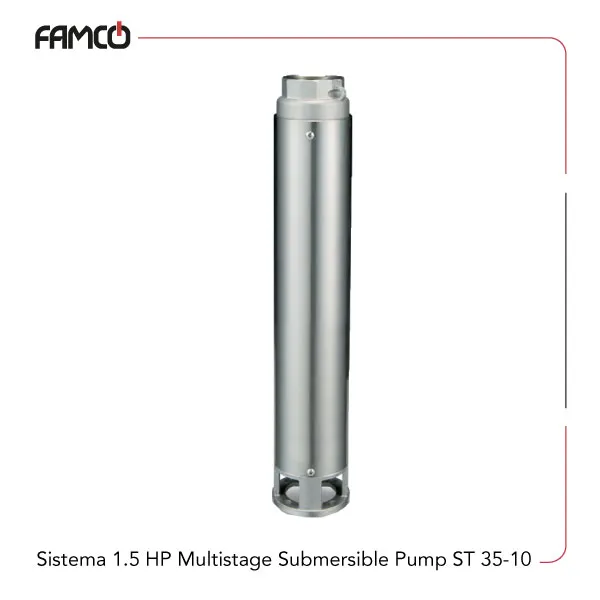

Sistema 1.5 HP Multistage Submersible Pump ST 35-10

Sistema 1.5 HP Multistage Submersible Pump ST 35-10 Specifications

This product features a power output of 1.1 kW, equivalent to 1.5 HP, making it suitable for various demanding applications. It can handle a maximum flow rate of 8.4 cubic meters per hour, which translates to 140 liters per minute, ensuring efficient fluid movement. The maximum head height it can achieve is 62 meters, allowing it to lift liquids over significant vertical distances. It is designed for deep immersion, with a maximum depth capacity of 150 meters. The liquid temperature it can operate within is up to 35°C, ensuring reliable performance in typical environments. This Sistema submersible pump has an insulation class rated F, indicating good thermal insulation properties, and a protection class of IP68, meaning it is dust-tight and protected against continuous immersion in water, suitable for harsh conditions and outdoor use.

Specification	Value
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow rate (m3/h)	8.4
Maximum Flow rate (l/min)	140
Maximum head (m)	62
Maximum depth of immersion	150mt
Liquid temperature (°C)	35
Insulation class	F
Protection class	IP68

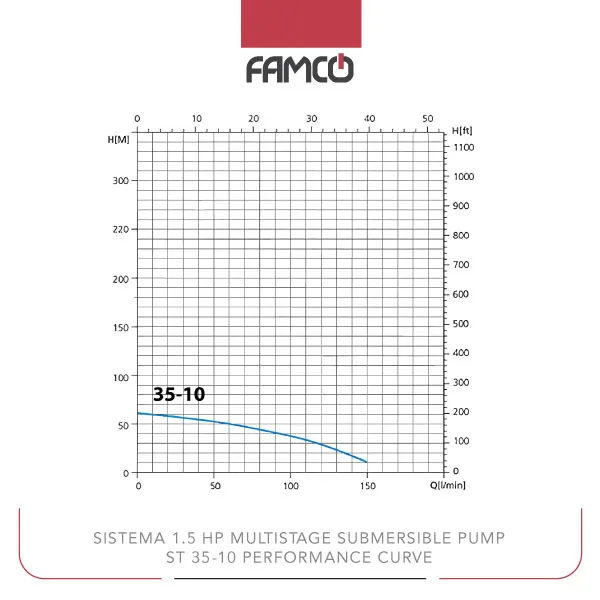

Sistema 1.5 HP Multistage Submersible Pump ST 35-10 Performance Data

Q (m3/h)	0	3	3.6	4.2	4.8	5.4	6	7.2	8.4
Q (l/min)	0	50	60	70	80	90	100	120	140
H (m)	62	53	51	48	45	41	38	29	18

Sistema 1.5 HP Multistage Submersible Pump ST 35-10 Applications

• Water transfer in industrial settings
• Deep well and borehole pumping
• Irrigation and agricultural use
• Drainage and flood control systems



Sistema 1.5 HP Multistage Submersible Pump ST 35-10 Benefits

• High efficiency with a maximum flow rate of 8.4 m3/h
• Suitable for deep immersion up to 150 meters
• Durable and protected with IP68 rating
• Operates reliably in water temperatures up to 35°C



Sistema 1.5 HP Multistage Submersible Pump ST 35-10 Price List

No.	Name	Price
1	Sistema 1.5 HP Multistage Submersible Pump ST 35-10 Price	Contact us
