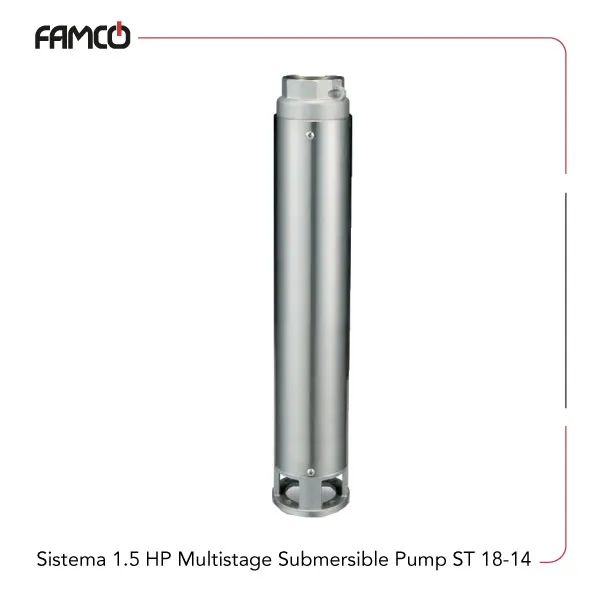

Sistema 1.5 HP Multistage Submersible Pump ST 18-14

Sistema 1.5 HP Multistage Submersible Pump ST 18-14 Specifications

This pump features a power output of 1.1 kW, equivalent to 1.5 HP, making it suitable for various demanding applications. This Sistema submersible pump can handle a flow rate of 6 cubic meters per hour, which translates to 100 liters per minute, ensuring efficient fluid transfer. The maximum head height it can achieve is 93 meters, allowing it to lift liquids over significant distances. Weighing only 4.1 kg, it is lightweight and easy to install or move around. The pump is designed for deep immersion, with a maximum depth capacity of 150 meters, making it ideal for deep well or borehole applications. It operates effectively with liquids at temperatures up to 35°C. The device is built with an insulation class F, providing good thermal protection, and features an IP68 protection rating, ensuring it is dust-tight and waterproof for prolonged underwater use.

Specification	Value
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow rate (m3/h)	6
Maximum Flow rate (l/min)	100
Maximum head (m)	93
Weight (kg)	4.1
Maximum depth of immersion	150 meters
Liquid temperature (°C)	35
Insulation class	F
Protection class	IP68

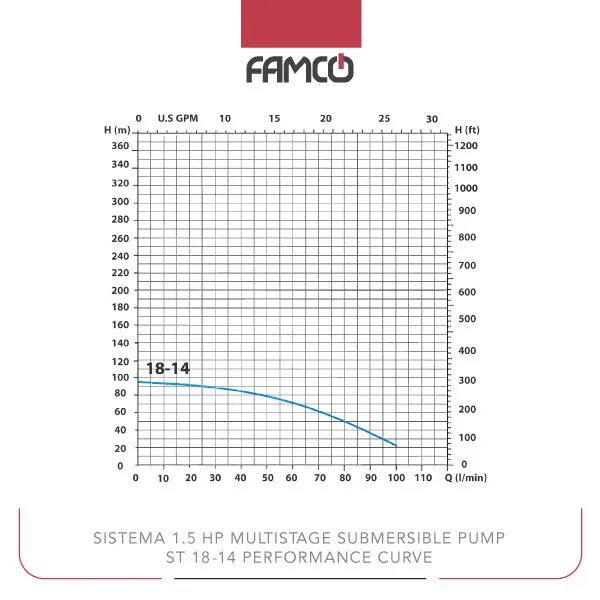

Sistema 1.5 HP Multistage Submersible Pump ST 18-14 Performance Data

Q (m3h)	0	1.5	1.8	2.1	2.4	3	3.6	4.2	4.8	5.4	6
Q (l/min)	0	25	30	35	40	50	60	70	80	90	100
H (m)	93	87	86	83	81	76	68	58	47	33	20

Sistema 1.5 HP Multistage Submersible Pump ST 18-14 Applications

• Deep well water extraction
• Irrigation systems
• Drainage and flood control
• Industrial fluid transfer



Sistema 1.5 HP Multistage Submersible Pump ST 18-14 Benefits

• High efficiency with a 1.1 kW power output
• Capable of lifting water up to 93 meters
• Suitable for deep immersion up to 150 meters
• Durable and waterproof with IP68 rating



Sistema 1.5 HP Multistage Submersible Pump ST 18-14 Price List

No.	Name	Price
1	Sistema 1.5 HP Multistage Submersible Pump ST 18-14 Price	Contact us
