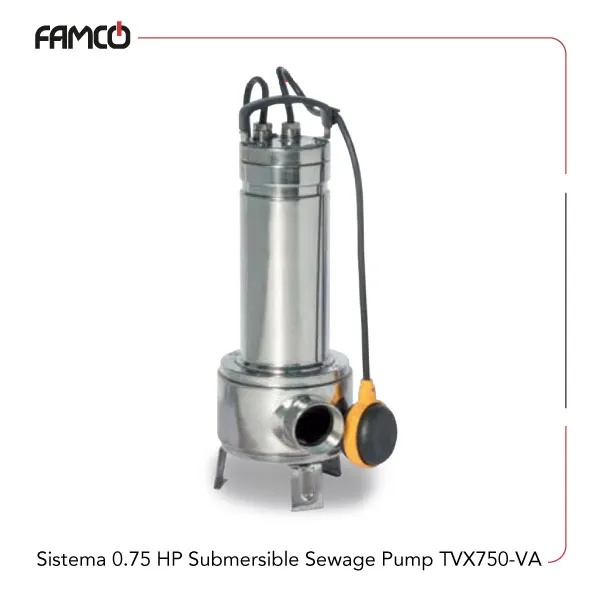

Sistema 0.75 HP Submersible Sewage Pump TVX750-VA Specifications
Sistema 0.75 HP submersible sewage pump TVX750-VA works on a single-phase electrical system. It draws 4 amperes and can move up to 15 cubic meters of water per hour, equal to 250 liters per minute. It can lift water to a height of 9 meters, making it suitable for a wide range of everyday tasks around the home or in setups where moderate temperatures are involved, as it handles liquids up to 35°C. The pump can operate while submerged up to 5 meters, giving you options when it comes to placement and use. This Sistema sewage pump is designed to handle particles thanks to inlet grain sizes of 35 mm on the TVX 750/VA model and 50 mm on the standard version. With a minimum suction level of 120 mm, it continues to work even when water levels drop. It is built for continuous operation, allowing it to run without stopping. The insulation class F provides strong thermal resistance, and the IP 68 protection rating means it is fully protected against dust and water, making it suitable for outdoor or demanding conditions.
| Specification | Value |
| Power (HP) | 0.75 |
| Power (kW) | 0.55 |
| Number of phases | Single-phase |
| Current | 4 A |
| Maximum Flow rate (m3/h) | 15 |
| Maximum Flow rate (l/min) | 250 |
| Maximum head (m) | 9 |
| Liquid temperature up to | 35°C |
| Maximum immersion depth | 5 meters |
| Grain size inlet Ø | 50 mm |
| Min. suction level | 120 mm |
| Continuous duty | Yes |
| Insulation Class | F |
| Protection | IP 68 |

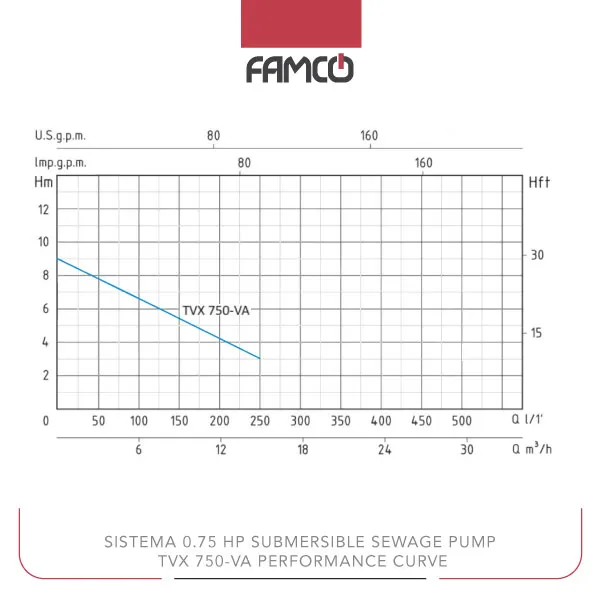

Sistema 0.75 HP Submersible Sewage Pump TVX750-VA Performance Data
| Q (m3/h) | 0 | 3.6 | 5.4 | 7.2 | 9 | 12 | 15 |
| Q (l/min) | 0 | 60 | 90 | 120 | 150 | 200 | 250 |
| H (m) | 9 | 8 | 7 | 6 | 5 | 4 | 3 |
Sistema 0.75 HP Submersible Sewage Pump TVX750-VA Applications
- Home water drainage and transfer
- Pool and fountain water circulation
- Flooded area drainage
- Irrigation and garden watering
Sistema 0.75 HP Submersible Sewage Pump TVX750-VA Benefits
- High flow rate for quick water transfer
- Durable and waterproof IP 68 protection
- Suitable for continuous operation
- Flexible inlet sizes for debris handling
Sistema 0.75 HP Submersible Sewage Pump TVX750-VA Price List
| No. | Name | Price |
| 1 | Sistema 0.75 HP Submersible Sewage Pump TVX750-VA Price | Contact us |
There are no reviews yet.
