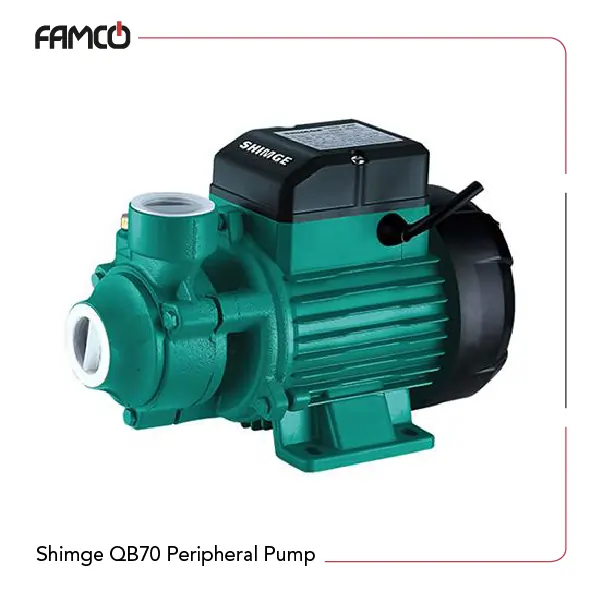

Shimge QB70 Peripheral Pump Specifications
The Shimge QB70 Peripheral Pump is a single-phase, compact, and efficient water pump designed for a variety of uses. It features a maximum flow rate of 3.6 m³/h and can achieve a maximum head of 48 meters, making it suitable for scenarios where high pressure and steady water flow are required. This pump is crafted by Shimge, a brand known for quality and innovation in water pump technology.
The pump is equipped with a 0.55 kW (0.75 HP) motor, which operates on a 220V/50Hz power supply. It includes copper windings and a built-in thermal protector, ensuring durability and safety. The pump’s IP44 protection and Class B insulation further enhance its reliability, making it capable of continuous operation in various environments.
How Does the Shimge QB70 Peripheral Pump Work?
The Shimge QB70 Peripheral Water Pump functions by using a peripheral impeller that adds energy to the water, increasing its pressure. This design is particularly effective for applications requiring high head and low flow. The pump’s motor powers the impeller, which spins at high speeds to create the necessary pressure to move water through the system.
This water pump is ideal for transferring clean water or liquids with properties similar to water, free from abrasive particles. It is commonly used in garden irrigation, water supply for greenhouses, and water transfer in small-scale agricultural and industrial settings.
Exclusive Features and Benefits of the Shimge QB70 Peripheral Pump
The Shimge QB70 Peripheral Pump small footprint makes it easy to install in limited spaces, and its high-pressure output ensures efficient water delivery, even over long distances. This pump is designed for ease of installation and maintenance, reducing downtime and operational costs.
Key features include:
- Small size and high pressure: Perfect for tight spaces and high-demand applications.
- Thermal protection: Built-in thermal protector prevents overheating, extending the life of the motor.
- Copper windings: Enhance durability and energy efficiency.
- IP44 protection: Provides resistance against dust and water splashes, suitable for outdoor use.
- Class B insulation: Ensures safe and reliable operation.
Shimge QB70 Peripheral Pump Installation and Usage
This pump is designed for easy setup, with clear instructions provided by Shimge. The pump’s motor features a fully enclosed fan cooling system, which allows it to operate continuously without overheating. This makes it ideal for applications requiring consistent water flow.
When installing the pump, it’s important to ensure the suction head does not exceed 8 meters and that the liquid temperature remains within the recommended range of up to +40°C. The ambient temperature should also not exceed +40°C, and the system should be able to handle a maximum working pressure of 6 bar. These conditions will help maintain optimal performance and extend the pump’s lifespan.
Shimge QB70 Peripheral Pump Components
- Motor: A 2-pole asynchronous motor designed for high efficiency and longevity. The motor is equipped with copper windings and a built-in thermal protector.
- Impeller: A peripheral impeller designed to increase water pressure effectively.
- Pump body: Made from durable materials, with optional upgrades like electrophoretic coating for enhanced protection against corrosion.
- Bearings: High-quality NSK bearings are available as an option for smoother operation and extended lifespan.
- Shaft: The shaft can be upgraded to 304 stainless steel for added durability and resistance to corrosion.
Important Tips for Buying Shimge QB70 Peripheral Pump
1. Assess your needs: Determine the required flow rate and head for your application. The QB70 model offers a max flow of 3.6 m³/h and a max head of 48 meters, making it suitable for various uses.
2. Check the voltage: Ensure that your power supply matches the specifications of Shimge QB70 Peripheral Pump (220V/50Hz).
3. Consider optional features: Depending on your specific requirements, you may want to opt for additional features like stainless steel shafts or upgraded bearings.
4. Installation environment: Ensure that the installation site meets the pump’s environmental limits, including temperature and pressure conditions.
5. Shimge QB70 Peripheral Pump price: Compare prices across different suppliers to ensure you get the best deal. Famcocorp is a reputable supplier that offers competitive pricing and quality assurance.
Shimge QB70 Peripheral Pump Price List
| No. | Name | Price |
| 1 | Shimge QB70 Peripheral Pump Price | Contact us |
