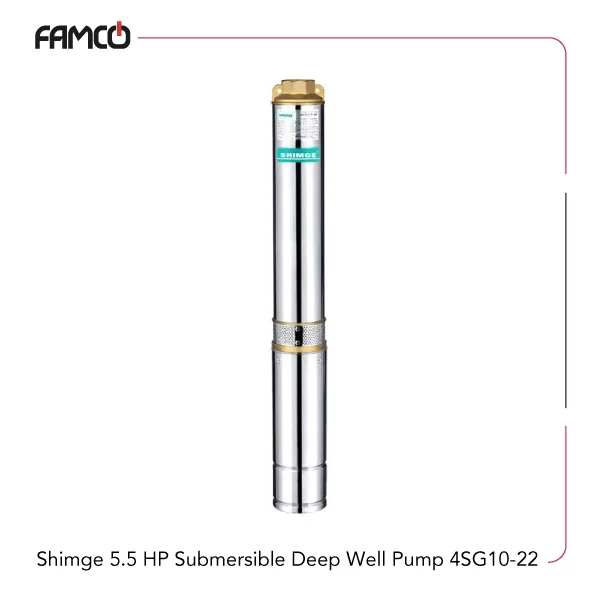

Shimge 5.5 HP Submersible Deep Well Pump 4SG10/22 Specifications
Shimge 5.5 HP submersible deep well pump 4SG10/22 operates on a three-phase power supply with a frequency of 50/60 Hz. It delivers a power output of 4 kW, equivalent to 5.5 HP, and has a rated current of 12.7 amperes. The maximum head achievable by this device is 124 meters, making it suitable for high-pressure applications. It can handle a maximum flow rate of 12.2 cubic meters per hour, which translates to about 210 liters per minute, ideal for various water transfer needs. This Shimge submersible pump is designed to function efficiently in environments with ambient temperatures below 40°C. It can tolerate sand content up to 0.01% by mass, ensuring durability in sandy conditions. Additionally, it is capable of operating in water with hydrogen sulfide concentrations up to 1.5 mg/L and chloride ion levels up to 400 mg/L. The pH range for optimal operation is between 6.5 and 8.5, ensuring compatibility with most natural water sources.
| Specification | Value |
| Frequency (Hz) | 50/60 |
| Number of phases | Three-phase |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Rated Current (A) | 12.7 |
| Maximum Head (m) | 124 |
| Maximum Flow rate (m3/h) | 12.6 |
| Maximum Flow rate (l/min) | 210 |
| Max. ambient temperature | < 40℃ |
| Sand content (in mass fraction) | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH range | 6.5 to 8.5 |
Shimge 5.5 HP Submersible Deep Well Pump 4SG10/22 Applications
- Industrial water supply systems
- Agricultural irrigation projects
- Municipal water treatment facilities
- Flood control and drainage systems
Shimge 5.5 HP Submersible Deep Well Pump 4SG10/22 Benefits
- High flow rate and pressure capacity
- Durable in sandy and chemically complex water
- Energy-efficient with moderate power consumption
- Suitable for various environmental conditions
Shimge 5.5 HP Submersible Deep Well Pump 4SG10/22 Price List
| No. | Name | Price |
| 1 | Shimge 5.5 HP Submersible Deep Well Pump 4SG10/22 Price | Contact us |
