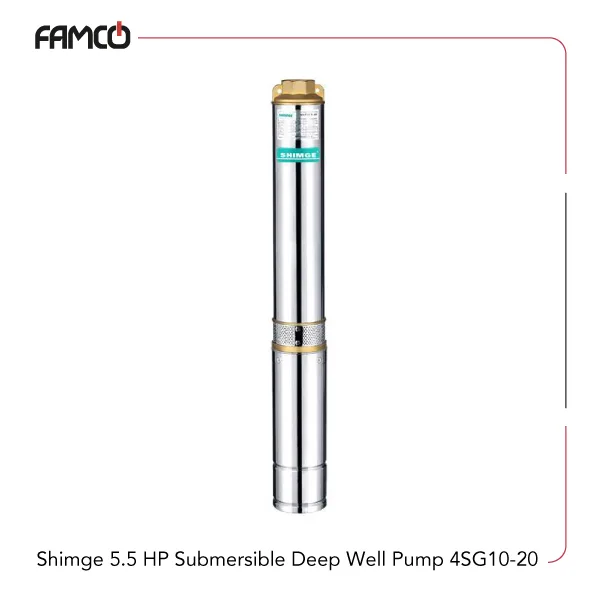

Shimge 5.5 HP Submersible Deep Well Pump 4SG10/20

Shimge 5.5 HP Submersible Deep Well Pump 4SG10/20 Specifications

Shimge 5.5 HP submersible deep well pump 4SG10/20 operates on a frequency of 50/60 Hz and is designed for three-phase power supply. It delivers a power output of 4 kW, equivalent to 5.5 HP, with a rated current of 11.5 amperes. The maximum head achievable by this device is 124 meters, making it suitable for high-pressure applications. It can handle a maximum flow rate of 12.6 cubic meters per hour, which translates to 210 liters per minute, ideal for various water transfer needs. The device functions efficiently in environments with ambient temperatures below 40°C. It is capable of operating in water containing up to 0.01% sand by mass, and can tolerate hydrogen sulfide concentrations up to 1.5 mg/L. Additionally, this shimge submersible pump can handle chloride ion levels up to 400 mg/L. The pH range for optimal operation is between 6.5 and 8.5, ensuring compatibility with most natural and treated water sources.

Specification	Value
Frequency (Hz)	50/60
Number of phases	Three-phase
Power (kW)	4
Power (HP)	5.5
Rated Current (A)	11.5
Maximum Head (m)	124
Maximum Flow rate (m3/h)	12.6
Maximum Flow rate (l/min)	210
Max. ambient temperature	< 40℃
Sand content (in mass fraction)	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH range	6.5 to 8.5

Shimge 5.5 HP Submersible Deep Well Pump 4SG10/20 Applications

• Industrial water transfer systems
• Municipal water supply projects
• Agricultural irrigation systems
• Water treatment plants



Shimge 5.5 HP Submersible Deep Well Pump 4SG10/20 Benefits

• High efficiency with a maximum head of 124 meters
• Capable of handling various water qualities
• Reliable operation in moderate temperature environments
• Suitable for large flow rate applications



Shimge 5.5 HP Submersible Deep Well Pump 4SG10/20 Price List

No.	Name	Price
1	Shimge 5.5 HP Submersible Deep Well Pump 4SG10/20 Price	Contact us
