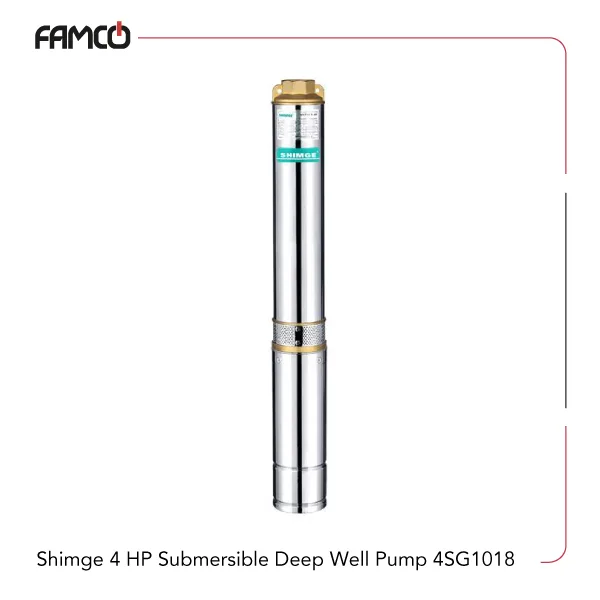

Shimge 4 HP Submersible Deep Well Pump 4SG10/18 Specifications
Shimge 4 HP submersible deep well pump 4SG10/18 operates on a frequency of 50/60 Hz and features a three-phase power system. It delivers a power output of 3 kW, equivalent to 4 HP, and has a rated current of 10.5 amperes. The maximum head it can achieve is 113 meters, making it suitable for high-lift applications. It can handle a maximum flow rate of 12.6 cubic meters per hour, which translates to 210 liters per minute, ideal for various water transfer needs. This Shimge submersible pump is designed to operate efficiently in environments with ambient temperatures below 40°C. It can tolerate water with sand content up to 0.01% by mass, ensuring durability in slightly contaminated water sources. It is capable of handling water with hydrogen sulfide concentrations up to 1.5 mg/L and chloride ion levels up to 400 mg/L. The pH range for optimal operation is between 6.5 and 8.5, ensuring compatibility with most natural and treated water sources. Overall, this product combines strong performance with adaptability to different water qualities.
| Specification | Value |
| Frequency (Hz) | 50/60 |
| Number of phases | Three-phase |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Rated Current (A) | 10.5 |
| Maximum Head (m) | 113 |
| Maximum Flow rate (m3/h) | 12.6 |
| Maximum Flow rate (l/min) | 210 |
| Max. ambient temperature | < 40℃ |
| Sand content (in mass fraction) | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
Shimge 4 HP Submersible Deep Well Pump 4SG10/18 Applications
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
- Flood control and drainage
Shimge 4 HP Submersible Deep Well Pump 4SG10/18 Benefits
- High efficiency with a maximum head of 113 meters
- Suitable for various water qualities and contaminants
- Reliable operation in moderate temperatures
- Capable of handling high flow rates up to 12.6 m3/h
Shimge 4 HP Submersible Deep Well Pump 4SG10/18 Price List
| No. | Name | Price |
| 1 | Shimge 4 HP Submersible Deep Well Pump 4SG10/18 Price | Contact us |
