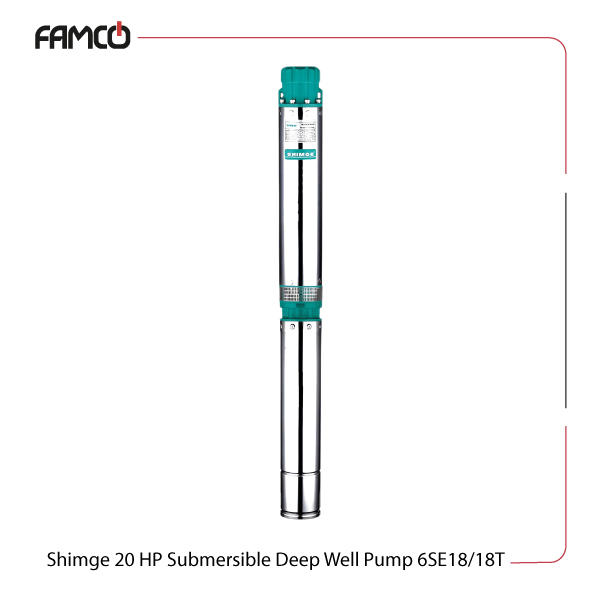

Shimge 20 HP Submersible Deep Well Pump 6SE18/18T Specifications
This product features a powerful 15 kW (20 HP) motor designed for efficient water pumping. It operates in environments with ambient temperatures below 40°C. The pump can handle 0.01% sand content, hydrogen sulfide levels up to 1.5 mg/L, and 400 mg/L of chloride ions. It functions optimally within a pH range of 6.5 to 8.5.
The maximum immersion depth is 70 meters, reaching even the deepest wells. It requires a three-phase power supply of 380V. The pump can deliver a maximum flow rate of 450 liters per minute, equivalent to 27 cubic meters per hour. Its maximum delivery head ranges from 99 to 243 meters. Designed for installation in 6-inch boreholes, this submersible pump is commonly used in industrial, agricultural, and municipal water supply systems.
| Specification | Value |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 450 |
| Max. flow rate (m3/h) | 27 |
| Max. delivery head (m) | 99-243 |
| Placement in | 6 inch boreholes |

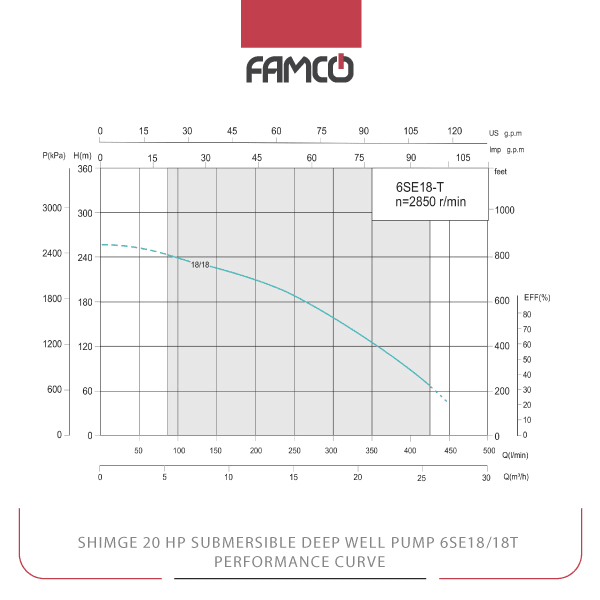

Shimge 20 HP Submersible Deep Well Pump 6SE18/18T Performance Curve
| M3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 257 | 247 | 240 | 233 | 206 | 189 | 159 | 125 | 91 | 39 |
Shimge 20 HP Submersible Deep Well Pump 6SE18/18T Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water transfer
Shimge 20 HP Submersible Deep Well Pump 6SE18/18T Benefits
- High flow rate and pressure for efficient water transfer
- Suitable for deep borehole installation up to 70 meters
- Operates reliably in challenging water conditions
- Energy-efficient with a powerful 15 kW motor
Shimge 20 HP Submersible Deep Well Pump 6SE18/18T Price List
| No. | Name | Price |
| 1 | Shimge 20 HP Submersible Deep Well Pump 6SE18/18T Price | Contact us |
