Shimge 2 HP Submersible Deep Well Pump 4SG3/19 Specifications
This product features a power output of 1.5 kW (2 HP), so it serves various water pumping needs. It has the capacity to operate efficiently in environments with ambient temperatures below 40°C. These submersible pumps can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, so it remains compatible with different water qualities. The maximum immersion depth is 70 meters. It supports both single-phase (220V) and three-phase (380V) power supplies to provide flexibility for different setups. The pump can deliver a maximum flow rate of 80 liters per minute, equivalent to 4.8 cubic meters per hour, with a maximum delivery head ranging from 43 to 140 meters. It is worth noting that this well pump fits 4-inch or larger boreholes.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 43-140 |

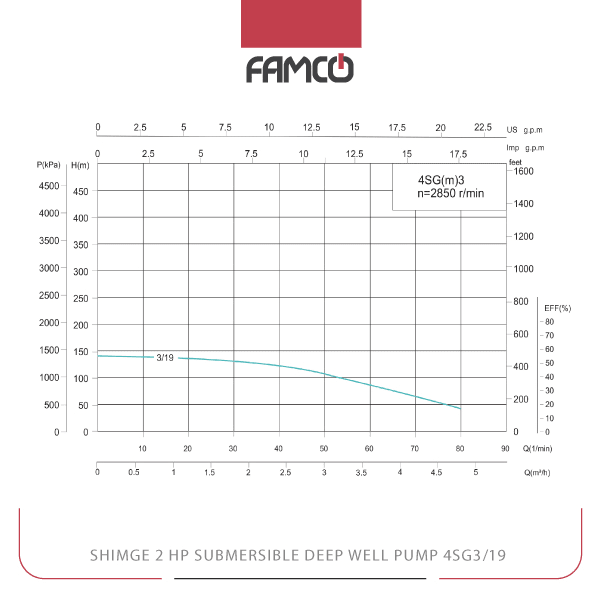

Shimge 2 HP Submersible Deep Well Pump 4SG3/19 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 140 | 138 | 136 | 130 | 120 | 106 | 87 | 66 | 43 |
Shimge 2 HP Submersible Deep Well Pump 4SG3/19 Applications
- Deep well water extraction
- Irrigation systems for agriculture
- Municipal water supply
- Industrial water transfer
Shimge 2 HP Submersible Deep Well Pump 4SG3/19 Benefits
- High efficiency with 1.5 kW power output
- Suitable for deep water sources up to 70 meters
- Operates in various water qualities with tolerance for sand and chemicals
- Flexible power options with single-phase and three-phase compatibility
Shimge 2 HP Submersible Deep Well Pump 4SG3/19 Price List
| No. | Name | Price |
| 1 | Shimge 2 HP Submersible Deep Well Pump 4SG3/19 Price | Contact us |
