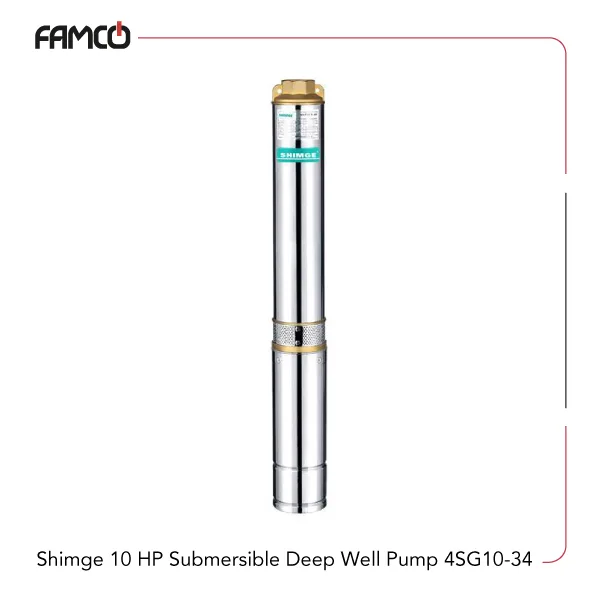

Shimge 10 HP Submersible Deep Well Pump 4SG10/34

Shimge 10 HP Submersible Deep Well Pump 4SG10/34 Specifications

Shimge 10 HP submersible deep well pump 4SG10/34 operates on a frequency of 50/60 Hz and features a three-phase power system. It delivers a power output of 7.5 kW, equivalent to 10 HP, and has a rated current of 19.6 amperes. The maximum head it can achieve is 206 meters, making it suitable for high-pressure applications. It can handle a maximum flow rate of 12.6 cubic meters per hour, which translates to 210 liters per minute, ideal for efficient water transfer. This Shimge submersible pump is designed to function effectively in environments with ambient temperatures below 40°C. It can tolerate sand content up to 0.01% by mass, ensuring durability in sandy conditions. The system is resistant to certain contaminants, with hydrogen sulfide levels up to 1.5 mg/L and chloride ion concentrations up to 400 mg/L. The pH range for optimal operation is between 6.5 and 8.5, ensuring compatibility with various water qualities.

Specification	Value
Frequency (Hz)	50/60
Number of phases	Three-phase
Power (kW)	7.5
Power (HP)	10
Rated Current (A)	19.6
Maximum Head (m)	206
Maximum Flow rate (m3/h)	12.6
Maximum Flow rate (l/min)	210
Max. ambient temperature	< 40°C
Sand content (mass fraction)	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH range	6.5 to 8.5

Shimge 10 HP Submersible Deep Well Pump 4SG10/34 Applications

• Water supply systems
• Irrigation and agriculture
• Industrial water transfer
• Municipal water management



Shimge 10 HP Submersible Deep Well Pump 4SG10/34 Benefits

• High maximum head for deep water lifting
• Strong flow rate for efficient transfer
• Durable in sandy and chemically challenging environments
• Reliable operation with stable power and current



Shimge 10 HP Submersible Deep Well Pump 4SG10/34 Price List

No.	Name	Price
1	Shimge 10 HP Submersible Deep Well Pump 4SG10/34 Price	Contact us
