Shimge 1 HP Submersible Deep Well Pump 4SG8/7

0.75 kW (1 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

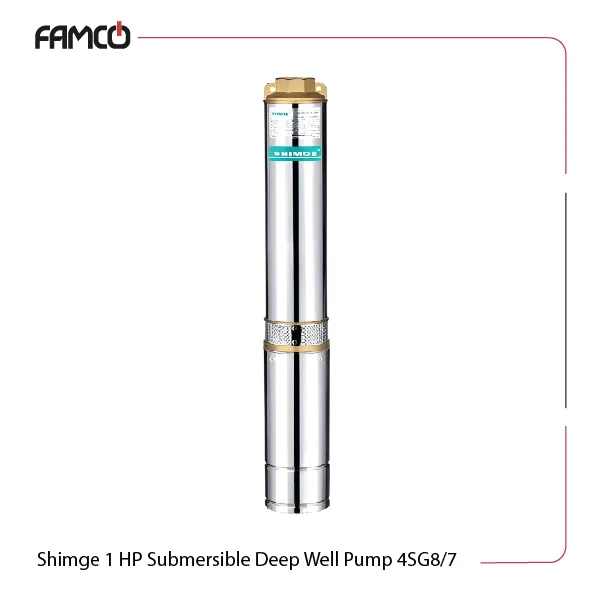

Overview of Shimge 1 HP Submersible Deep Well Pump 4SG8/7

This water pump operates with a 1 HP force. With a maximum immersion depth of 70 meters, the 4SG8/7 is more than capable of deep water extraction and distribution. Its compact size and versatile power options make it suitable for deep well applications and water supply systems. The pump’s ability to handle water with specific impurities like sand, hydrogen sulfide, and chloride ions (see the table below) ensures it performs well in challenging water conditions. Its adjustable delivery head (12-46 meters) and high flow rate (reaching 180 l/min) make it a flexible choice for providing consistent performance and durability over time. This model is provided in both single- or three-phase versions.

Shimge 1 HP Submersible Deep Well Pump 4SG8/7 (single-phase)

Shimge 1 HP Submersible Deep Well Pump 4SGm8/7 (three-phase)

Shimge 1 HP Submersible Deep Well Pump 4SG8/7 Specifications

This product features a power of 0.75 kW (1 HP), suitable for various water pumping needs. Ambient temperatures below 40°C can best implement the 4SG8/7 in their setups. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with different water qualities. The maximum immersion depth is 70 meters, so this submersible pump can handle most tasks. It supports both single-phase voltage of 220V and three-phase voltage of 380V with flexible power options. This Shimge pump has a maximum flow rate of 180 liters per minute, or 10.8 cubic meters per hour, with a delivery head ranging from 12 to 46 meters. It is safe to say that this water pump is suitable for various lifting and distribution tasks.

Specification	Value
Power (kW)	0.75
Power (HP)	1
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Three-phase voltage (V)	380
Max. flow rate (l/min)	180
Max. flow rate (m3/h)	10.8
Max. delivery head (m)	12-46

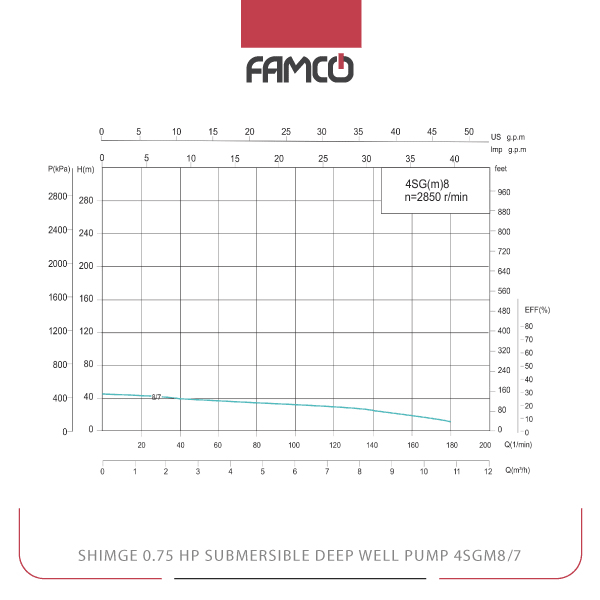

Shimge 1 HP Submersible Deep Well Pump 4SG8/7 Performance Data

M3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
Head (m)	46	44	41	37	35	33	30	26	20	12

Shimge 1 HP Submersible Deep Well Pump 4SG8/7 Applications

Deep well water extraction
Irrigation systems in agriculture
Municipal water supply
Industrial water transfer

Shimge 1 HP Submersible Deep Well Pump 4SG8/7 Benefits

High efficiency with 0.75 kW power
Suitable for deep water applications up to 70 meters
Handles water with impurities like sand and hydrogen sulfide
Flexible voltage options for different power supplies

Shimge 1 HP Submersible Deep Well Pump 4SG8/7 Price List

No.	Name	Price
1	Shimge 1 HP Submersible Deep Well Pump 4SG8/7 Price	Contact us

Brand	Shimge
Power (kW)	0.75
Power (HP)	1
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	220, 380
Maximum Flow Rate (L/min)	180
Maximum Flow Rate (m3/h)	10.8
Maximum Delivery Head (m)	46
