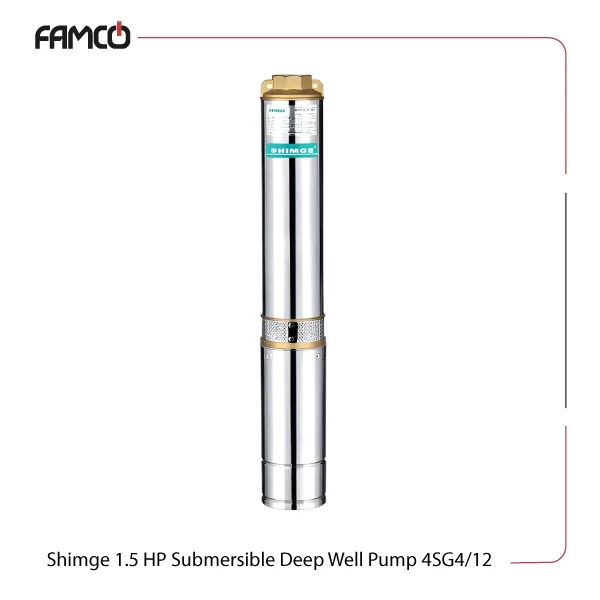

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/12 Specifications
This product features a power of 1.1 kW or 1.5 HP. It operates efficiently in environments with ambient temperatures below 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, keeping it compatible with different water qualities. The maximum immersion depth is 70 meters, and it fits 4-inch boreholes with ease. This submersible pump runs on both single- and three-phase voltages of 220 and 380V. The pump can deliver a maximum flow rate of 100 liters per minute or 6 cubic meters per hour, with a maximum delivery head ranging from 18 to 89 meters. This model is provided in both single- or three-phase versions.
Shimge 1.5 HP Submersible Deep Well Pump 4SGm4/12 (single-phase)
Shimge 1.5 HP Submersible Deep Well Pump 4SG4/12 (three-phase)
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 100 |
| Max. flow rate (m3/h) | 6 |
| Max. delivery head (m) | 18-89 |

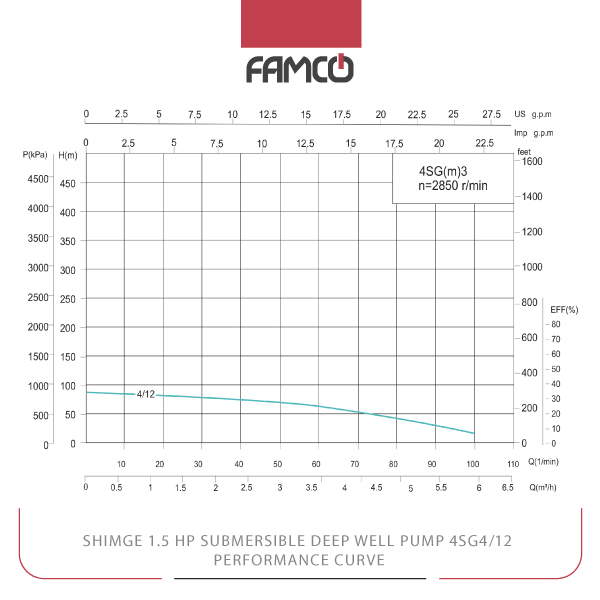

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/12 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | 6 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Head (m) | 89 | 85 | 83 | 81 | 77 | 72 | 65 | 56 | 45 | 33 | 18 |
Shimge 1.5 HP Submersible Deep Well Pump 4SG4/12 Applications
- Groundwater extraction for irrigation
- Municipal water supply systems
- Deep well water pumping
- Industrial water processing
Shimge 1.5 HP Submersible Deep Well Pump 4SG4/12 Benefits
- High efficiency with 1.1 kW power
- Suitable for deep boreholes up to 70 meters
- Handles water with impurities like sand and sulfides
- Easy to install with standard 220V power supply
Shimge 1.5 HP Submersible Deep Well Pump 4SG4/12 Price List
| No. | Name | Price |
| 1 | Shimge 1.5 HP Submersible Deep Well Pump 4SG4/12 Price | Contact us |
There are no reviews yet.
