Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9

0.55 kW (0.75 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9

This 0.75 HP Shimge pump seamlessly integrates into water supply systems. The 4SGm3/9 is a single-phase pump. Its ability to operate in environments with temperatures below 40 ℃ is complemented by handling water with specific impurities. The pump’s maximum immersion depth of 70 meters allows it to be used in deep wells. Its 80 l/min flow rate and a 65-meter maximum delivery head are suitable for many residential and small industrial uses.

Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9 Specifications

This product features a compact 0.55 kW (0.75 HP) motor manufactured specifically for efficient performance. The water it handles can have some contaminants, such as minimal sand content up to 0.01% (to see the full list, see below). This submersible pump is suitable for water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, which vouches for its stability across different water conditions. The pump can be immersed up to 70 meters deep for deep well applications. It runs on a single-phase power supply of 220V and is easy to connect in most locations. The maximum flow rate is 80 liters per minute, or 4.8 cubic meters per hour, with a delivery head ranging from 16 to 65 meters.

Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9

Specification	Value
Power (kW)	0.55
Power (HP)	0.75
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Max. flow rate (l/min)	80
Max. flow rate (m3/h)	4.8
Max. delivery head (m)	16-65

Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9 Performance Data

M3/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8
l/min	0	10	20	30	40	50	60	70	80
Head (m)	65	64	63	60	55	48	40	30	19

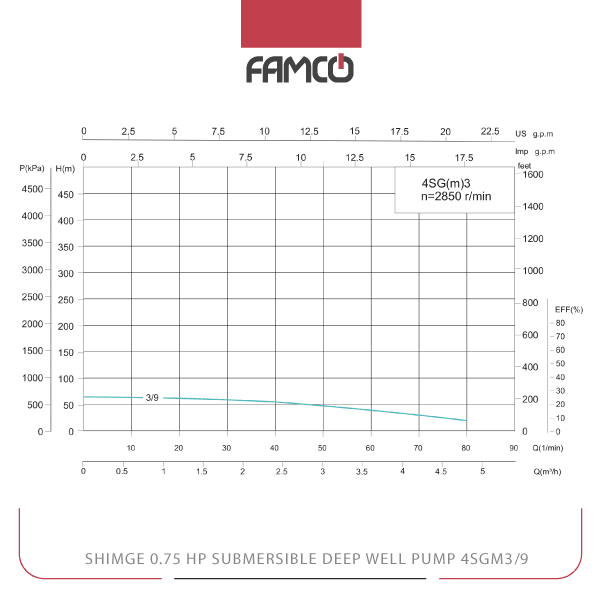

Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9 Performance Curve

Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9 Applications

Deep well water extraction
Irrigation systems in agriculture
Residential water supply
Industrial water transfer

Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9 Benefits

High efficiency with low power consumption
Suitable for deep well applications
Handles water with specific impurities
Easy to install and operate

Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9 Price List

No.	Name	Price
1	Shimge 0.75 HP Submersible Deep Well Pump 4SGm3/9 Price	Contact us

Brand	Shimge
Power (kW)	0.55
Power (HP)	0.75
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	220
Maximum Flow Rate (m3/h)	4.8
Maximum Delivery Head (m)	65
