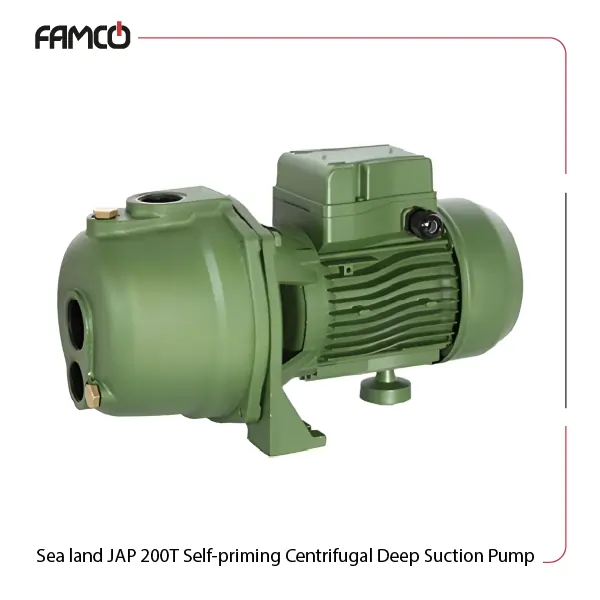

Sea land JAP 200T Self-priming Centrifugal Deep Suction Pump

Overview of Sea land JAP 200 T Self-priming Centrifugal Deep Suction Pump

Sea land JAP 200 T self-priming centrifugal deep suction pump combines advanced engineering with practical design to meet diverse fluid handling needs. Its self-priming feature ensures that the pump can start operation smoothly without manual intervention, even when dealing with deep suction issues. The centrifugal pump mechanism delivers consistent performance and high flow rates.

The pump’s strong construction and deep suction ability make it an excellent choice for demanding environments. It is particularly effective in applications requiring the movement of fluids from significant depths, such as in agricultural irrigation, chemical processing, and water treatment. Sea land JAP 200 T self-priming centrifugal deep suction pump offers both reliability and efficiency, ensuring effective fluid transfer in challenging conditions.

How does Sea land JAP 200 T Self-priming Centrifugal Deep Suction Pump Work?

Sea land JAP 200 T self-priming centrifugal deep suction water pump efficiently handles fluids by combining centrifugal force with a self-priming feature. Initially, the pump needs to be filled with liquid for priming. Once primed, it automatically maintains this state, removing air and establishing a continuous flow without manual intervention.

During operation, the pump’s centrifugal impeller spins rapidly, creating a force that propels the liquid outward and generates a steady flow. This design allows the JAP 200T to effectively draw fluids from considerable depths.

Exclusive features and Benefits Sea land JAP 200 T Self-priming Centrifugal Deep Suction Pump

1. Deep Suction Capability: The JAP 200T can efficiently pump clean water from wells with a minimum diameter of 4 inches, even when the water level is more than 8 meters deep.
2. Self-Priming Design: This pump is self-priming, meaning it can create suction and draw fluid into the pump casing without external priming. It’s ideal for scenarios where the water source is below the pump level.
3. Durable Construction:
   • Pump Body: Made of cast iron with an anti-corrosive coating.
   • Motor Bracket: Die-cast aluminum (cast iron for JAP 150-200).
   • Ejector: Cast iron with an anti-corrosive coating.
   • Impellers: Polymer (stamped brass available on demand).
   • Pump Shaft: Stainless steel (Aisi 304).
   • Mechanical Seal: Carbon-ceramics.
   • Motor: Asynchronous, squirrel cage-type, closed, with external ventilation.
4. Temperature Range:
   • Suitable for liquid temperatures up to 35°C (for domestic use, as per CEI EN 60335-2-41).
   • Ambient temperature should not exceed 40°C.
5. Performance:
   • Flow rate: Up to approximately 3.6 m³/h.
   • Maximum head: Up to approximately 50 meters.

Sea land JAP 200 T Self-priming Centrifugal Deep Suction Pump Installation and Usage

For installing the JAP 200 T self-priming centrifugal deep suction pump, follow these steps:

1. Mount the Pump: Securely install the pump on a stable, level base using appropriate anchors or brackets.
2. Connect the Suction and Discharge Pipes: Ensure all connections are tight and leak-proof. The suction pipe should be properly aligned and supported.
3. Check the Seal and Gaskets: Ensure all seals and gaskets are correctly placed and in good condition to prevent leaks.
4. Prime the Pump: Fill the pump casing with water to ensure it’s primed before starting.
5. Start the Pump: Once primed, start the pump and check for proper operation and any leaks.

Usage:

• Agricultural Irrigation: Efficiently moving water for crop and field irrigation.
• Water Supply Systems: Providing water in residential and commercial water distribution systems.
• Industrial Processes: Handling water transfer and circulation in various industrial applications.
• Construction Sites: Dewatering and water management in construction and excavation projects.
• Fire Protection Systems: Supplying water for fire fighting and prevention systems.

Sea land JAP 200T Self-priming Centrifugal Deep Suction Pump Components

The JAP 200T self-priming centrifugal deep suction pump typically includes the following components:

• Pump Casing: The outer shell that houses the impeller and other internal parts.
• Impeller: The rotating component that imparts energy to the fluid.
• Suction and Discharge Ports: Connectors for the suction and discharge pipes.
• Priming Chamber: Area used for priming the pump with water.
• Mechanical Seal: Prevents leakage between the rotating and stationary parts.
• Pump Shaft: Transfers mechanical energy from the motor to the impeller.
• Bearing Housing: Supports the pump shaft and bearings.
• Motor: Drives the pump, usually mounted directly or via a coupling.
• Drain Plug: Allows for draining and maintenance of the pump.

Important tips for buying Sea land JAP 200T Self-priming Centrifugal Deep Suction Pump

• Check Specifications: Ensure the pump meets your flow rate, pressure, and suction requirements. You can check the specifications of Sea land JAP 200T Self-priming Centrifugal Deep Suction Pump on this page.
• Verify Quality: Look for reputable manufacturers and check reviews for reliability and durability.
• Consider Materials: Verify that the materials are suitable for the fluids you’ll be pumping and the environmental conditions.
• Assess Compatibility: Make sure the pump’s size and connections match your existing piping and infrastructure.
• Review Warranty and Support: Check for warranty terms and availability of customer support or service.
• Evaluate Energy Efficiency: Choose a pump with energy-efficient features to reduce operational costs.
• Confirm Self-Priming Capability: Ensure the pump’s self-priming function suits your application and installation conditions.
• Inspect Maintenance Requirements: Consider the ease of maintenance and availability of spare parts.
• Consult Experts: Seek advice from professionals or engineers to ensure the pump fits your specific needs and applications.
• Price: You can check Sea land JAP Pump price on Famcocorp website.

You can buy Sea land JAP 200T self-priming centrifugal deep suction pump online from Famcocorp.



Sea land JAP 200T Self-priming Centrifugal Deep Suction Pump Price List

No.	Name	Price
1	Sea land JAP 200T Self-priming Centrifugal Deep Suction Pump  Price	Contact us
