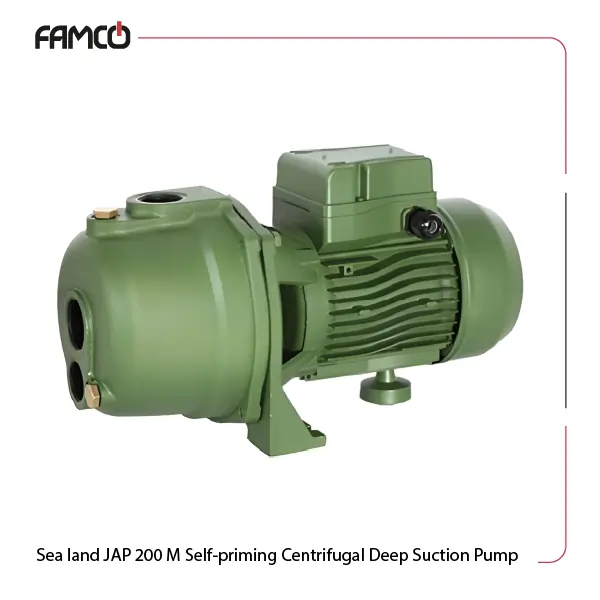

Sea land JAP 200 M Self-priming Centrifugal Deep Suction Pump

Overview of Sea land JAP 200 M Self-priming Centrifugal Deep Suction Pump

Sea land JAP 200 M self-priming centrifugal deep suction pump is a robust and efficient pump designed for demanding applications requiring top performance in challenging conditions. Its self-priming capability allows it to operate effectively even when the pump casing is not initially filled with liquid, the best choice for deep suction tasks. This pump features a centrifugal design, which utilizes rotational energy to transfer fluids, ensuring smooth and consistent flow rates. The deep suction capability enhances its efficiency in drawing water from significant depths, suitable for agricultural irrigation, water supply systems, and various industrial processes.

Constructed with high-quality materials, the JAP 200 M is engineered to withstand rigorous operational environments and provide long-lasting durability. Its user-friendly design simplifies maintenance and operation, while its advanced hydraulic design minimizes energy consumption and maximizes performance. With its reliable self-priming function and efficient centrifugal action, the JAP 200 M is a valuable asset for applications requiring dependable fluid transfer and consistent operational efficiency in challenging conditions.

You can check the specifications of Sea land JAP 200 M self-priming centrifugal deep suction pump on this page.

How does Sea land JAP 200 M Self-priming Centrifugal Deep Suction Pump Work?

Sea land JAP 200 M self-priming centrifugal deep suction pump operates based on the principles of centrifugal force and self-priming technology. Initially, when the pump is started, the air within the water pump casing and suction line is expelled, and a liquid column is established. The self-priming mechanism uses a combination of an impeller and a priming chamber to create a vacuum that draws fluid into the pump. This vacuum allows the pump to handle applications where the fluid source is located below the pump level, effectively eliminating the need for manual priming or continuous supervision.

Once primed, the pump’s centrifugal action comes into play. The impeller, driven by an electric motor, spins rapidly to create a high-speed rotation that imparts kinetic energy to the fluid. This rotational force generates a centrifugal effect, pushing the fluid outward from the center of the impeller to the pump casing. The fluid is then directed through the discharge outlet with increased pressure and flow rate. This design ensures efficient fluid transfer and consistent performance.

Exclusive features and benefits Sea land JAP 200 M Self-priming Centrifugal Deep Suction Pump

Let’s focus on the features of the Sea land JAP 200 M self-priming centrifugal deep suction pump:

1. Self-Priming: This pump is designed to automatically prime itself, which means it can start pumping water without manual priming.
2. Deep Suction: It can draw water from wells with a depth of at least 8 meters.
3. Materials: The pump body is made of cast iron with an anti-corrosive coating, and the impellers are made of polymer material.
4. Motor: The asynchronous motor is squirrel cage-type, closed, and features external ventilation.
5. Temperature Range: Suitable for liquid temperatures up to 35°C (for domestic use) or 60°C (other applications).
6. Mechanical Seal: Equipped with a carbon-ceramic mechanical seal.

Sea land JAP 200 M Self-priming Centrifugal Deep Suction Pump Installation and Usage

Before You Begin:

• Turn off power.
• Pick a flat, close location for the pump with good drainage.
• Gather tools (wrenches, sealant, bucket).

Installation:

1. Suction Pipe: Attach foot valve with strainer to pipe, then connect to pump inlet (sealant!).
2. Delivery Pipe: Connect discharge pipe to pump outlet (sealant!).
3. Prime it: Follow user manual instructions to fill pump and remove air (might involve a priming plug).
4. Electrical: Connect pump cable to grounded power source (match voltage and phase).

Testing and Final Touches:

• Turn on water supply and activate pump. Check for leaks, tighten if needed.
• Run a test: ensure pump works and delivers water properly.
• Adjust discharge valve (if present) to control water flow (refer to manual).

Usage:

• Deep Wells: Its deep suction capability (10-50 meters) makes it ideal for wells where submerging a pump isn’t feasible.
• Surface Placement: Avoids the complexities of installing and maintaining a submersible pump.
• Water Transfer: Fills tanks, cisterns, or irrigation systems from deep wells.
• Domestic Use: Fulfills household water needs when the primary water source is a deep well (within temperature limits).
• Garden Irrigation: Provides water for gardens or landscaping from a deep well source.

Sea land JAP 200 M Self-priming Centrifugal Deep Suction Pump Components

The JAP 150 self-priming centrifugal deep suction pump typically includes the following components:

• Impeller: Rotates to create fluid movement.
• Volute Casing: Encases the impeller and directs the flow.
• Pump Shaft: Connects the impeller to the motor.
• Pump Body: Houses and supports internal components.
• Mechanical Seal: Prevents leaks between the shaft and pump body.
• Suction and Discharge Ports: Inlets and outlets for fluid entry and exit.
• Priming Chamber: Facilitates self-priming by trapping fluid.

Important Tips for Buying Sea land JAP 200 M Self-priming Centrifugal Deep Suction Pump

• Check Flow Rate and Head: Ensure the pump’s flow rate and maximum head meet your specific needs. The pump should be able to handle the volume and height of fluid you need to move efficiently.
• Verify Self-Priming Capability: Confirm that the pump has reliable self-priming features suitable for your application, particularly if you’re dealing with deep suction.
• Material and Build Quality: Look for a pump made from durable, corrosion-resistant materials, especially if you’re handling abrasive or chemically aggressive fluids.
• Motor Compatibility: Ensure the pump’s motor is compatible with your power supply and has adequate power for the required performance.
• Ease of Maintenance: Choose a pump that offers easy access to components for routine maintenance and repairs, reducing downtime.
• Warranty and Support: Check for a robust warranty and good customer support to address any potential issues or service needs.
• Size and Installation: Verify that the pump’s dimensions and installation requirements fit your available space and setup.
• Price: You can check Sea land JAP 200 M self-priming centrifugal deep suction pump price on Famcocorp website.

You can buy Sea land JAP 200 M self-priming centrifugal deep suction pump online from Famcocorp.



Sea land JAP 200 M Self-priming Centrifugal Deep Suction Pump Price List

No.	Name	Price
1	Sea land JAP 200 M self-priming centrifugal deep suction pump price	Contact us
