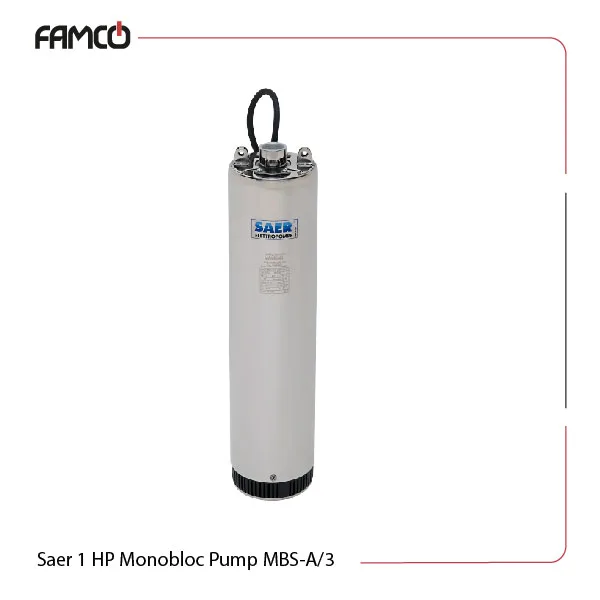

Saer 1 HP Monobloc Pump MBS-A/3 Specifications
This product pushes water up to a height range of 24.5 to 72.5 meters at various applications. This Saer monobloc pump operates at a frequency of 50 Hz and can handle liquid temperatures ranging from 0 to 40 °C. This Saer pump allows for an impressive maximum solid passage of 2.5 mm and is submersible up to 70 meters deep. The product’s IP68 protection class is designed for durability in challenging environments. The mechanical seals consist of a graphite/alumina oxide seal on the motor side and an alumina oxide/silicon carbide seal on the pump side for maximum protection. The pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel. This series of submersible pumps is available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions. The power input is rated at 1.3 kW, with an output of 0.9 kW, equivalent to 1.2 HP.
| Specification | Value | |
| H (m) | 16-45 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P1 (kW) | 1.1 | |
| P2 (kW) | 0.75 | |
| P2 (HP) | 1 | |
Saer 1 HP Monobloc Pump MBS-A/3 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel
Saer 1 HP Monobloc Pump MBS-A/3 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 520 | L (mm) | 500 |
| Weight (kg) | 20.9 | Weight (kg) | 19.6 |
Saer 1 HP Monobloc Pump MBS-A/3 Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.2 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 86 |
| H (m) | 45 | 44.5 | 44 | 42 | 39.5 | 35.5 | 31.5 | 26 | 20.3 | 16 |

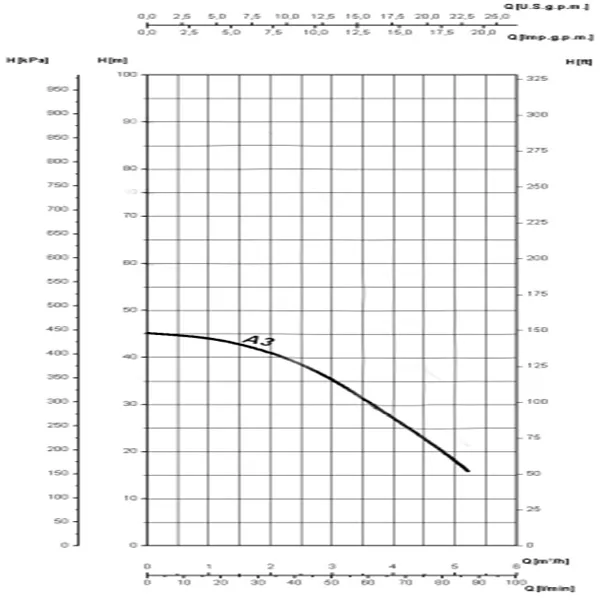

Saer 1 HP Monobloc Pump MBS-A/3 Performance Curve
Saer 1 HP Monobloc Pump MBS-A/3 Applications
- Wastewater management systems
- Irrigation and agricultural applications
- Industrial fluid transfer
- Construction site dewatering
Saer 1 HP Monobloc Pump MBS-A/3 Benefits
- High durability with AISI 304 steel construction
- Efficient operation at various depths
- Advanced sealing technology for reliability
- Versatile for multiple applications
Saer 1 HP Monobloc Pump MBS-A/3 Price List
| No. | Name | Price |
| 1 | Saer 1 HP Monobloc Pump MBS-A/3 Price | Contact us |
