Saer 1 HP MBS-X/4 Monobloc Pump Specifications
This product is designed for various applications with a height range of 21 to 58 meters. These Saer pumps operate at a frequency of 50 Hz for standard electrical systems. The maximum liquid temperature it handles is between 0 to 40 degrees Celsius for safe operation in various environments. One of the most important factors to consider in submersible pumps is their immersion depth and this one has it set at a maximum of 70 meters deep. This Saer monobloc pump manages solid particles up to 2 mm in size, which is ideal for many industrial processes. Additionally, it can be immersed up to 70 meters deep to create flexibility in installation. The power ratings include P1 at 1.1 kW and P2 at 0.75 kW, with P2 also rated at 1 HP which is efficient for its intended use.
| Specification | Value | |
| Head (m) | 21-58 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2 | |
| Max. Immersion depth (m) | 70 | |
| P2 (kW) | 0.75 | |
| P2 (HP) | 1 | |
| Voltage (V) | Single-phase versions | 220-230 V/230-240 V |
| Three-phase versions | 380-400-415 V | |
| Protection class | IP68 | |
Saer 1 HP MBS-X/4 Monobloc Pump Materials
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- motor shaft: AISI 431 stainless steel
- mechanical seals on motor side: Graphite/alumina oxide
- mechanical seals on pump side: alumina oxide/silicon carbide
Saer 1 HP MBS-X/4 Monobloc Pump Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 553 | L (mm) | 533 |
| Weight (kg) | 21.4 | Weight (kg) | 20.2 |
Saer 1 HP MBS-X/4 Monobloc Pump Technical Data
| Q (m3/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 |
| Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 |
| H (m) | 58 | 57 | 56 | 52 | 45.5 | 39.5 | 31 | 21 |

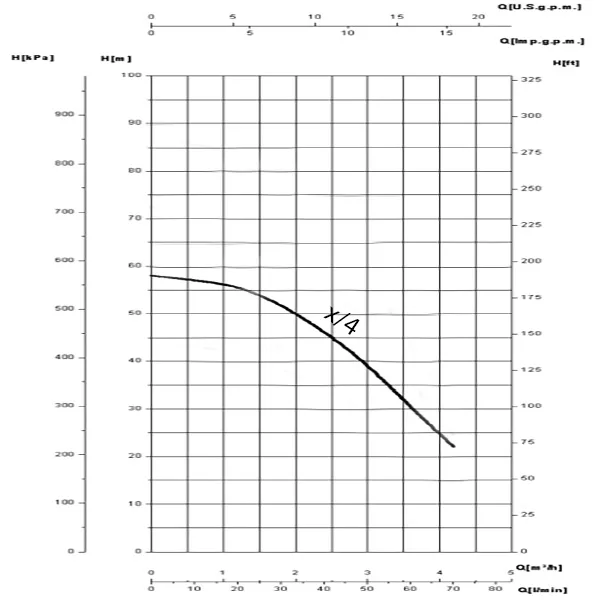

Saer 1 HP MBS-X/4 Monobloc Pump Performance Curve
Saer 1 HP MBS-X/4 Monobloc Pump Applications
- Fluid management in industrial processes
- Wastewater treatment facilities
- Agricultural irrigation systems
- Cooling systems in power plants
Saer 1 HP MBS-X/4 Monobloc Pump Benefits
- High efficiency with low power consumption
- Durable design for long-lasting performance
- Versatile applications across various industries
- Easy installation and maintenance
Saer 1 HP MBS-X/4 Monobloc Pump Price List
| No. | Name | Price |
| 1 | Saer 1 HP MBS-X/4 Monobloc Pump Price | Contact us |
