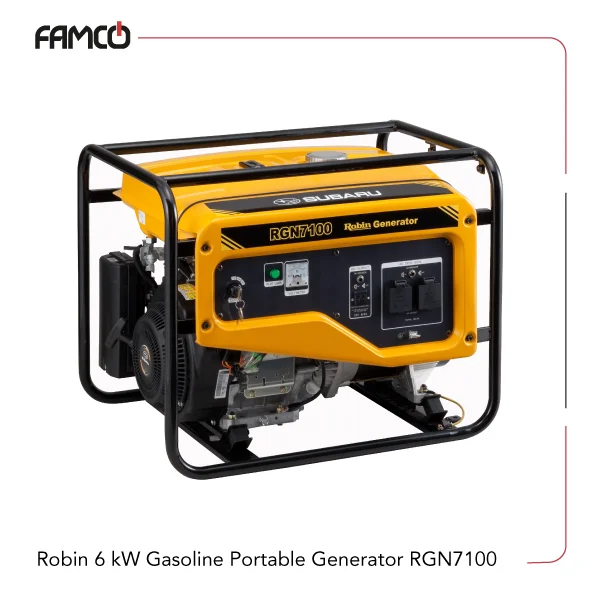

Robin 6 kW Gasoline Portable Generator RGN7100 Specifications
Robin 6 kW gasoline portable generator RGN7100 features a self-exciting, two-pole, single-phase brush design, making it suitable for various power needs. It is equipped with an AVR type voltage regulator to ensure stable output. The device supports multiple voltage ranges, including 50-220V, 50-240V, 60-110V, 60-120V, and 240V. Its maximum power output reaches 6 kW at 50Hz and 7.1 kW, while the rated power output is 4.6 kW at 50Hz and 5 kW at 60Hz, with a power factor of 1.0 for efficient energy use. The generator provides a DC output of 12V with 8.3A capacity, suitable for charging batteries or powering DC devices. Safety is enhanced with a fuse-less circuit breaker, reducing maintenance and increasing reliability. The engine, model EX35, is a robust air-cooled, 4-stroke, overhead camshaft gasoline engine with a displacement of 404 ml. This Robin generator runs on automotive unleaded gasoline and has a fuel tank capacity of 16 liters, allowing for extended operation. The engine oil capacity is 1.2 liters, and it starts easily with a recoil starter. The generator can operate continuously for approximately 5.5 hours at 50Hz and 4.8 hours at 60Hz. Its dimensions are 725 mm in length, 534 mm in width, and 580 mm in height, with a dry weight of 76 kg, which can extend to 86 kg with additional components or packaging.
| Specification | Value |
| Type | Brush, Self-exciting, 2-poles, Single phase |
| Voltage Regulator | AVR Type |
| Frequency-Rated Voltage (Hz-V) | 50-220, 50-240/60-110/220, 60-120/240 |
| Max. Power Output | 6 kW (50HZ) / 7.1 kW |
| Rated Power Output | 4.6 (50HZ) / 5 kW |
| Power factor | 1.0 |
| DC Output (V-A) | 12-8.3 |
| Safety Device Type | Fuse-less circuit breaker |
| Engine Model | EX35 |
| Engine Type | Air-cooled, 4-stroke, OHC, Gasoline engine |
| Displacement (ml) | 404 |
| Fuel | Automotive unleaded gasoline |
| Fuel Tank Capacity (L) | 16*1 |
| Engine Oil Capacity (L) | 1.2 |
| Starting System (H) | Recoil starter |
| Continuous Operating Hours (h) | 5.5 (50HZ) / 4.8 (60 Hz) |
| Dimensions L x W x H (mm) | 725(975)*2 x 534 x 580 |
| Dry Weight (kg) | 76(86)*3 |
Robin 6 kW Gasoline Portable Generator RGN7100 Applications
- Backup power for homes and offices
- Construction sites and outdoor events
- Emergency power supply during outages
- Powering tools and small machinery
Robin 6 kW Gasoline Portable Generator RGN7100 Benefits
- Stable voltage output with AVR regulation
- Easy to start with recoil system
- Long operating hours for extended use
- Lightweight and portable design
Robin 6 kW Gasoline Portable Generator RGN7100 Price List
| No. | Name | Price |
| 1 | Robin 6 kW Gasoline Portable Generator RGN7100 Price | Contact us |
