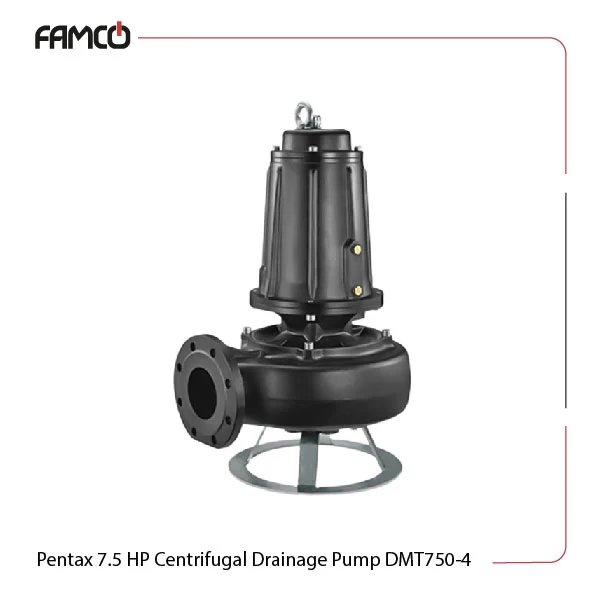

Pentax 7.5 HP Centrifugal Drainage Pump DMT750-4 Specifications
This powerful pump operates efficiently within a liquid temperature range of 0 to 40 degrees Celsius. This Pentax pump can be immersed up to 20 meters deep. You could entrust DMT750-4 submersible pump with moving water or other liquids under pressure. Users integrate this drainage pump into different agriculture, construction, and manufacturing setups with ease. With four poles, this pump ensures stable performance. The insulation class is rated F with excellent thermal protection. The pump has an IPX8 protection degree, so it is waterproof and can handle submersion. It boasts a power rating of 5.5 kW or 7.5 HP, delivering a head range of 2.6 to 17 meters. The maximum flow rate reaches 180 m3/h, making it ideal for high-demand tasks.
Operating at a frequency of 50 Hz, this line of Pentax pumps supports three-phase voltages of 230, 400, 230/400, and 400/690 volts. The mechanical seals on both the pump and motor sides are made from durable materials like silicon carbide and ceramic/graphite, ensuring longevity. The impeller and pump body are constructed from robust cast iron, providing strength and reliability.
| Specification | Value |
| Liquid temperature (℃) | 0-40 |
| Max. immersion depth (m) | 20 |
| No. of poles | 4 |
| Insulation class | F |
| Protection degree | IPX8 |
| Power rating (kW) | 5.5 |
| Power rating (HP) | 7.5 |
| Head (m) | 2.6-17 |
| Max. flow rate (m3/h) | 180 |
| Frequency (Hz) | 50 |
| Three-phase voltage (V) | 230,400,230/400, 400/690 |
Pentax 7.5 HP Centrifugal Drainage Pump DMT750-4 Materials
- Mechanical seal on pump side: silicon carbide
- Mechanical seal on motor side: ceramic/graphite
- Impeller: cast iron
- Pump body: cast iron
Pentax 7.5 HP Centrifugal Drainage Pump DMT750-4 Technical Data
| M3/h | 0 | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 | 132 | 144 | 156 | 168 | 180 |
| l/min | 0 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
| Head (m) | 17.0 | 16.0 | 15.4 | 14.7 | 13.8 | 13.0 | 12.2 | 11.4 | 10.4 | 9.4 | 8.4 | 7.3 | 6.2 | 5.1 | 3.8 | 2.6 |

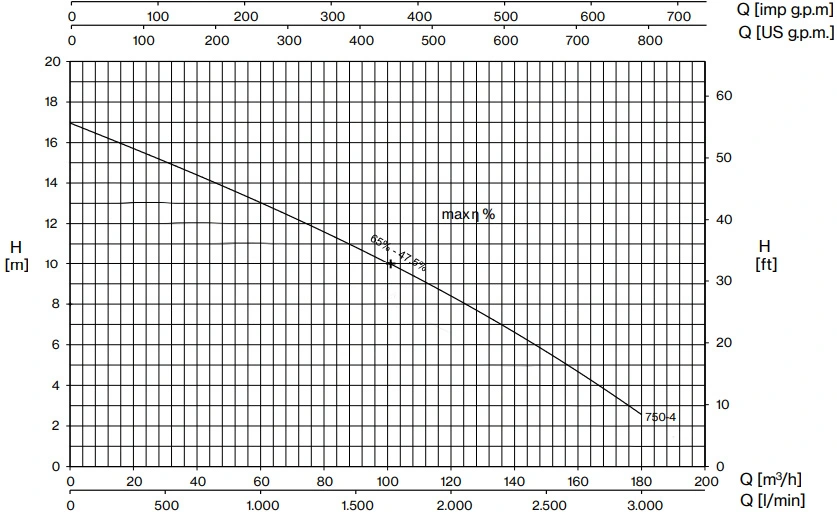

Pentax 7.5 HP Centrifugal Drainage Pump DMT750-4 Performance Curve
Pentax 7.5 HP Centrifugal Drainage Pump DMT750-4 Applications
- Irrigation systems in agriculture
- Water supply for construction sites
- Industrial liquid transfer
- Aquaculture and fish farming
Pentax 7.5 HP Centrifugal Drainage Pump DMT750-4 Benefits
- High efficiency with a maximum flow rate of 180 m3/h
- Durable construction with cast iron components
- Excellent thermal protection with insulation class F
- Versatile voltage options for different setups
Pentax 7.5 HP Centrifugal Drainage Pump DMT750-4 Price List
| No. | Name | Price |
| 1 | Pentax 7.5 HP Centrifugal Drainage Pump DMT750-4 Price | Contact us |
