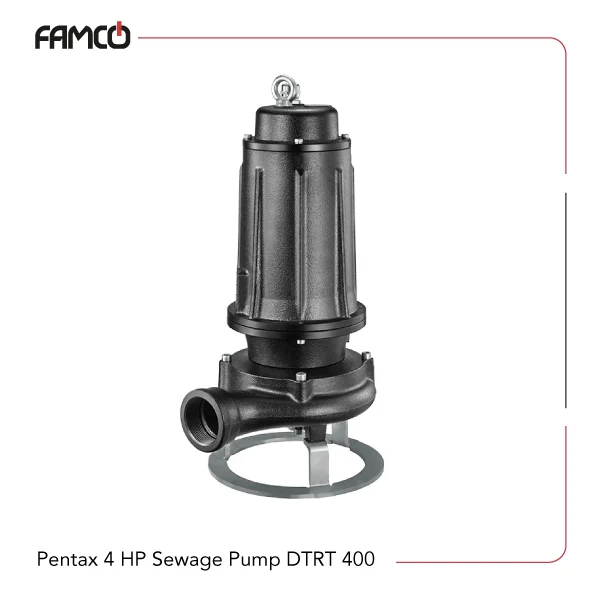

Pentax 4 HP Sewage Drainage Pump DTRT 400 Specifications
Pentax 4 HP sewage drainage pump DTRT 400 features a cast iron body and impeller, ensuring durability and strength for demanding applications. It is equipped with a double seal system that includes an oil barrier, with silicon carbide on the pump side and a sealing ring on the engine side, providing reliable sealing and preventing leaks. This Pentax sewage drainage pump shaft end is made of high-quality steel AISI 304, offering corrosion resistance and longevity. It operates efficiently within an ambient temperature range of 0 to 40 degrees Celsius. The device includes a 20-meter stainer for effective debris management. With an insulation class of F and an IPX8 protection degree, it is suitable for various environments, including wet conditions. The pump delivers a flow rate between 50 and 300 liters per minute, with a head height ranging from 21.6 to 31.8 meters. It connects to pipes with a diameter of 50 mm and weighs approximately 62.5 kilograms, making it suitable for heavy-duty tasks requiring reliable performance and durability.
| Specification | Value |
| Pump body | cast iron |
| Impeller | cast iron |
| Seal | double seal with oil barrier: pump side silicon carbide, engine side sealing ring |
| Pump shaft end | steel AISI 304 |
| Ambient temperature | 0 – 40 °C |
| STAINER | 20 m |
| Insulation class | F |
| Protection degree | IPX8 |
| Power | 3 kW |
| Flow rate range (l/min) | 50-300 |
| Head (m) | 21.6-31.8 |
| Pipe-DNM | 50 |
| Weight (kg) | 62.5 |

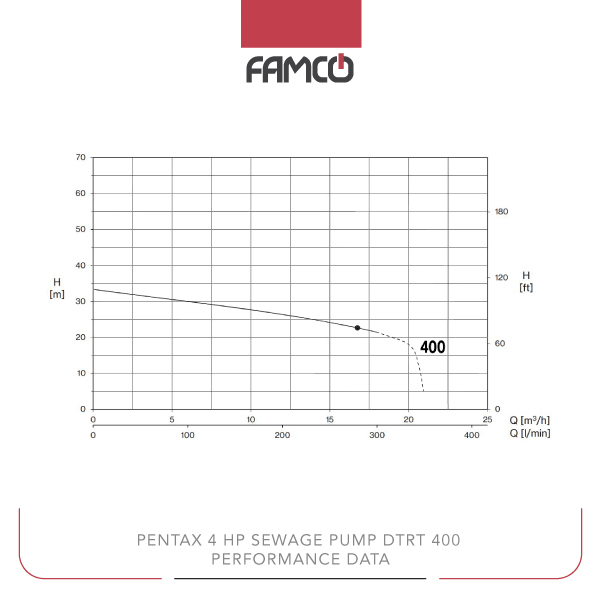

Pentax 4 HP Sewage Drainage Pump DTRT 400 Performance Data
| Flow rate (L/min) | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Flow rate (m3/h) | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| Head (m) | 33.5 | 31.8 | 30.1 | 28.5 | 26.4 | 24.4 | 21.6 |
Pentax 4 HP Sewage Drainage Pump DTRT 400 Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Flood control and drainage
- Construction site water management
Pentax 4 HP Sewage Drainage Pump DTRT 400 Benefits
- Durable cast iron construction for long-lasting use
- Reliable double seal system prevents leaks
- High flow rate and head height for versatile applications
- Protection degree IPX8 ensures safe operation in wet environments
Pentax 4 HP Sewage Drainage Pump DTRT 400 Price List
| No. | Name | Price |
| 1 | Pentax 4 HP Sewage Drainage Pump DTRT 400 Price | Contact us |
