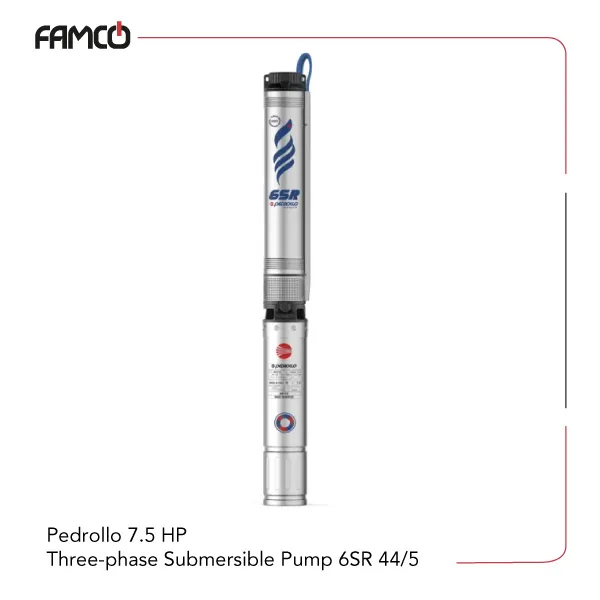

Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 44/5 Specifications
This pump has you covered in water extraction tasks in various conditions. It can operate at a maximum liquid temperature of +35 °C, making it suitable for different environments. The pump head reaches up to 62 meters, providing strong water flow capabilities. It can handle sand content up to 100 grams per cubic meter, ensuring durability even with some debris in the water. The maximum depth for operation is 200 meters when using the 6PD motor and 150 meters with the 6PSR motor, making it ideal for deep well applications. It operates in a vertical position and can start up to 20 times per hour at regular intervals, with a minimum cooling flow of 8 centimeters per second to prevent overheating. The power consumption is 5.5 kW or 7.5 HP, and it is configured for three-phase voltage supply. The Pedrollo pump 6SR series 44/5 is built for continuous duty, suitable for well diameters of 6 inches or 153 millimeters. Its impellers are made from Noryl™ and coated with a special elastomer resistant to sand, which extends the lifespan. The Pedrollo submersible pumps‘ diffusers are also made from Noryl™, and the pump shaft is constructed from AISI 304 stainless steel, ensuring corrosion resistance and strength. The weight of the pump varies depending on the motor type, with the PD version weighing 57.6 kg and the PSR version 73.2 kg, indicating a robust build for demanding applications.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 62 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (l/min) | 1000 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight (kg) | 57.6 (PD), 73.2 (PSR) |

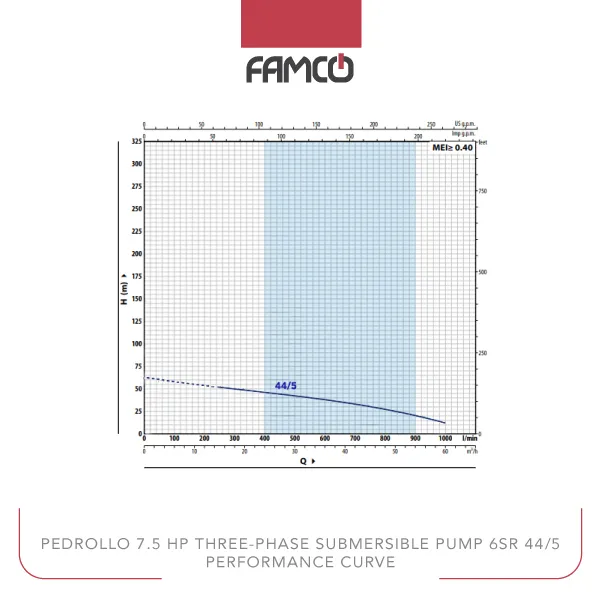

Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 44/5 Performance Curve
| m³/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| head (m) | 62 | 53.5 | 49.5 | 46 | 42 | 37.5 | 32.5 | 26 | 18.7 | 10 |
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 44/5 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 44/5 Benefits
- High durability with stainless steel shaft and sand-resistant impellers
- Suitable for deep water applications up to 200 meters
- Reliable continuous operation for demanding tasks
- Handles water with sand content up to 100 g/m³
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 44/5 Price List
| No. | Name | Price |
| 1 | Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 44/5 Price | Contact us |
