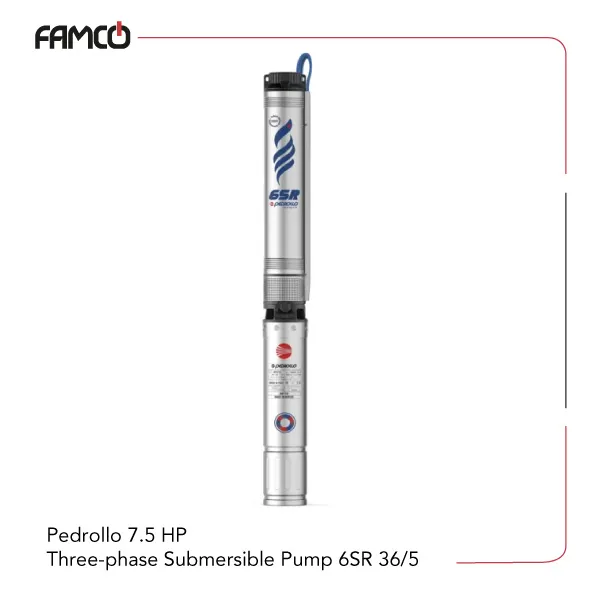

Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/5 Specifications
This pump is designed for reliable water extraction and transfer in various applications. It operates efficiently at a maximum liquid temperature of +35 °C and can handle sand content up to 100 grams per cubic meter. The pump can operate at depths of up to 200 meters when equipped with 6PD motors, or up to 150 meters with 6PSR motors, making it suitable for deep water well applications. It is intended to be used in a vertical position and can start up to 20 times per hour at regular intervals, ensuring consistent performance. The minimum cooling flow required is 8 centimeters per second, which helps maintain optimal operation. The 36/5 Pedrollo pump from 6SR series has you covered all year around, featuring a powerful 5.5 kW (7.5 HP) motor, providing a head of 62.5 meters and a maximum flow rate of 800 liters per minute. It is configured for three-phase voltage, suitable for industrial setups. The pump is built for continuous duty (S1), making it ideal for long-term operation. It fits well in wells with a diameter of 6 inches or 153 millimeters. The impellers are made from Noryl™, coated with a special elastomer resistant to sand, which prolongs the lifespan in abrasive environments. The diffusers of this Pedrollo submersible pump are also made from Noryl™, and the pump shaft is constructed from durable AISI 304 stainless steel. The weight varies depending on the motor type, with the PD model weighing 57.6 kg and the PSR model weighing 73.2 kg, ensuring sturdy and reliable performance in demanding conditions.
| Specification | Value |
| Liquid temperature | +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation position | Vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | 5.5 kW, 7.5 HP |
| Head | 62.5 meters |
| Maximum flow rate | 800 liters per minute |
| Voltage | Three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft material | AISI 304 stainless steel |
| Weight | 57.6 kg (PD), 73.2 kg (PSR) |
| Motor options | 6PD rewindable and oil filled, 6PSR rewindable and water filled |

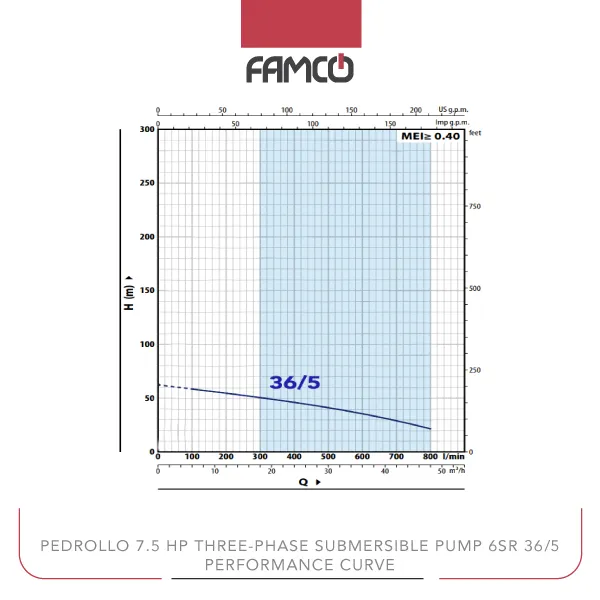

Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/5 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| head (m) | 62.5 | 58.5 | 54.5 | 50.5 | 46 | 41 | 35 | 28.5 | 21 |
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/5 Applications
- Deep well water extraction
- Industrial water transfer
- Irrigation systems
- Municipal water supply
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/5 Benefits
- High durability with stainless steel shaft and sand-resistant impellers
- Suitable for deep water applications up to 200 meters
- Reliable continuous operation for demanding tasks
- Flexible motor options for different environments
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/5 Price List
| No. | Name | Price |
| 1 | Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 36/5 Price | Contact us |
