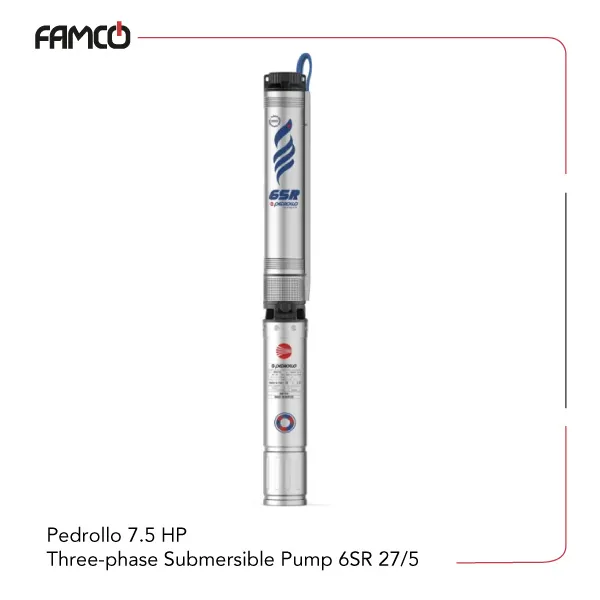

Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 27/5 Specifications
This robust vertical pump is designed for deep water applications, capable of operating at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors. It handles water temperatures up to +35°C and can process water with sand content up to 100 grams per cubic meter. The pump features a power of 5.5 kW (7.5 HP) and a maximum flow rate of 600 liters per minute, making it suitable for various industrial and water supply tasks. It is powered by three-phase voltage and is built for continuous operation under S1 duty cycle. The Pedrollo pump is compatible with well diameters of 6 inches or 153 mm, ensuring versatility for different well sizes. Its impellers are made from Noryl™ and coated with a special elastomer resistant to sand abrasion, while the diffusers are also constructed from Noryl™ for durability. The pump shaft is crafted from AISI 304 stainless steel, providing corrosion resistance and strength. The 6SR series 27/5 Pedrollo submersible pump can be supplied with either a 6PD rewindable, oil-filled motor or a 6PSR rewindable, water-filled motor, offering flexibility based on operational needs. It operates in a vertical position and requires a minimum cooling flow of 8 cm/s to maintain optimal performance. The pump starts approximately 20 times per hour at regular intervals, ensuring steady operation in demanding environments.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 68 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | Vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. flow rate (l/min) | 600 |
| Voltage | Three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight | 52.9 kg (PD), 68.5 kg (PSR) |

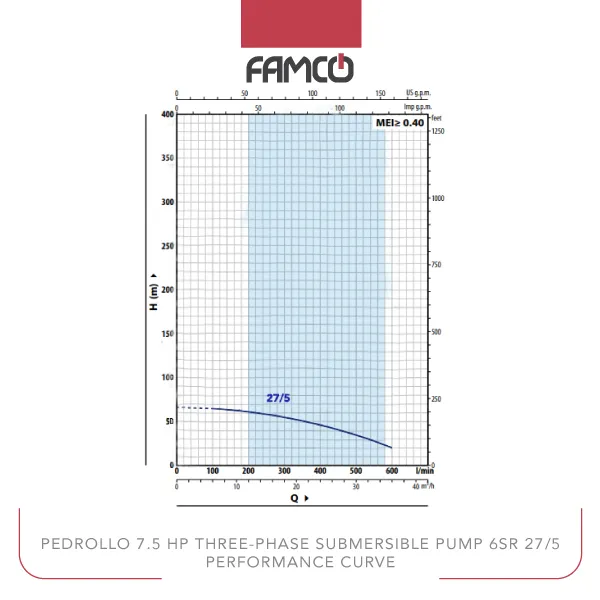

Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 27/5 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| head (m) | 68 | 66 | 62 | 57 | 50 | 37 | 22 |
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 27/5 Applications
- Deep well water extraction
- Industrial water transfer
- Irrigation systems
- Municipal water supply
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 27/5 Benefits
- High durability with stainless steel shaft and sand-resistant impellers
- Flexible motor options for different operational needs
- Capable of operating at great depths with reliable performance
- Suitable for water with sand content up to 100 g/m³
Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 27/5 Price List
| No. | Name | Price |
| 1 | Pedrollo 7.5 HP Three-phase Submersible Pump 6SR 27/5 Price | Contact us |
