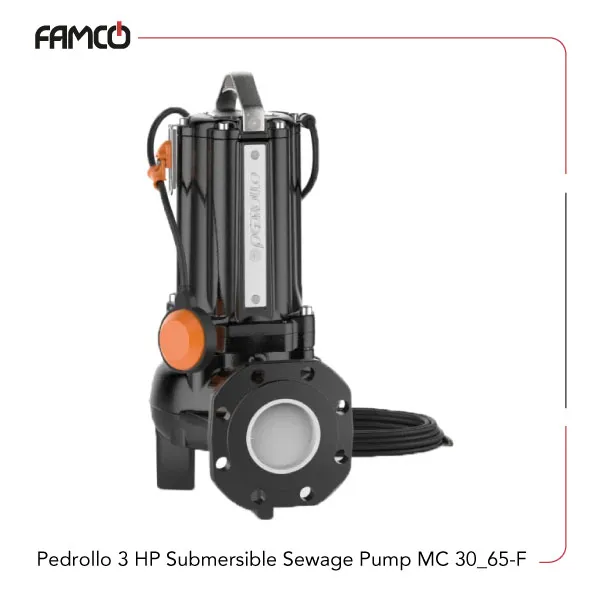

Pedrollo 3 HP Submersible Sewage Pump MC 30/65-F Specifications
Pedrollo 3 HP submersible sewage pump MC 30/65-F offers a power of 3 HP (2.2 kW), making it suitable for demanding applications. It can handle a maximum flow rate of 90 cubic meters per hour, which translates to 1500 liters per minute, ideal for high-volume water transfer. The maximum head height is 13 meters, allowing it to lift water efficiently over significant distances. It can operate at depths up to 10 meters below water level, provided the power cable is properly sized. This Pedrollo sewage pump is designed to work with liquids up to 40 degrees Celsius, making it versatile for various environments. It can transfer suspended solids up to 65 mm in diameter, suitable for handling debris and solids in water. The minimum immersion required is 360 mm, ensuring proper operation when submerged. Overall, this pump combines power, efficiency, and durability for a wide range of water transfer tasks, especially in industrial, agricultural, or municipal settings.
| Specification | Value |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Maximum Flow rate (m3/h) | 90 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 13 |
| Depth below water level | up to 10 m (with an appropriately sized power cable) |
| Liquid temperature | up to +40 °C |
| Suspended solids transfer | up to Ø 65 mm |
| Minimum immersion | 360 mm |

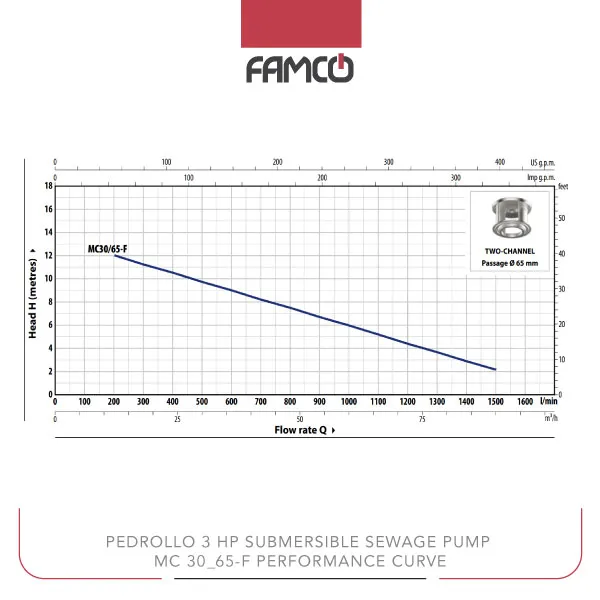

Pedrollo 3 HP Submersible Sewage Pump MC 30/65-F Performance Data
| Q (m3/h) | 0 | 12 | 24 | 36 | 48 | 60 | 66 | 72 | 90 |
| Q (l/min) | 0 | 200 | 400 | 600 | 800 | 1000 | 1100 | 1200 | 1500 |
| Head (m) | 13 | 12 | 10.5 | 9 | 7.5 | 6 | 5 | 4.5 | 2 |
Pedrollo 3 HP Submersible Sewage Pump MC 30/65-F Applications
- Industrial water transfer
- Agricultural irrigation
- Municipal water management
- Drainage and flood control
Pedrollo 3 HP Submersible Sewage Pump MC 30/65-F Benefits
- High flow rate for quick water transfer
- Handles solids up to 65 mm diameter
- Operates efficiently at depths up to 10 meters
- Suitable for liquids up to 40°C temperature
Pedrollo 3 HP Submersible Sewage Pump MC 30/65-F Price List
| No. | Name | Price |
| 1 | Pedrollo 3 HP Submersible Sewage Pump MC 30/65-F Price | Contact us |
