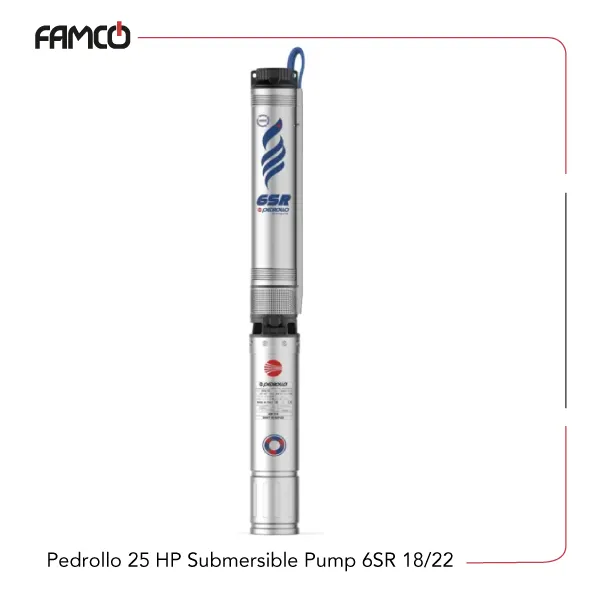

Pedrollo 25 HP Submersible Pump 6SR 18/22 Specifications
Consider getting this submersible pump if your tasks involve working in deep water at significant depths, with 6PD motors capable of reaching up to 200 meters and 6PSR motors capable of reaching up to 150 meters. It handles water temperatures up to 35 °C and can process water with a sand content of up to 100 grams per cubic meter. The pump operates vertically and is suitable for well diameters of 6 inches or 153 mm. It features a powerful 18.5 kW (25 HP) motor, providing a maximum flow rate of 450 liters per minute and a head height of 298 meters. The pump is engineered for continuous operation, with up to 20 starts per hour at regular intervals, ensuring reliable performance in demanding environments. Most Pedrollo pumps of this series include impellers made of Noryl™ coated with a special elastomer resistant to sand, and diffusers also made of Noryl™. The shaft implemented in this Pedrollo submersible pump is constructed from durable AISI 304 stainless steel, offering corrosion resistance. Dimensions vary slightly depending on the motor type, with the height measuring approximately 1367 mm for both models, and other dimensions ranging from 883 to 2257 mm. The pump weighs between 98.8 kg and 116.4 kg, making it suitable for heavy-duty applications. It requires a minimum cooling flow of 8 cm/s to maintain optimal operation. The pump is powered by a three-phase voltage supply, ensuring efficient energy use and reliable performance in continuous duty scenarios.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 298 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | 200 m with 6PD motors, 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Max. flow rate (l/min) | 450 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
Pedrollo 25 HP Submersible Pump 6SR 18/22 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 1367 | 1367 | |
| h2 | 883 | 890 | |
| h3 | 2250 | 2257 | |
| Weight (kg) | 98.8 | 116.4 | |

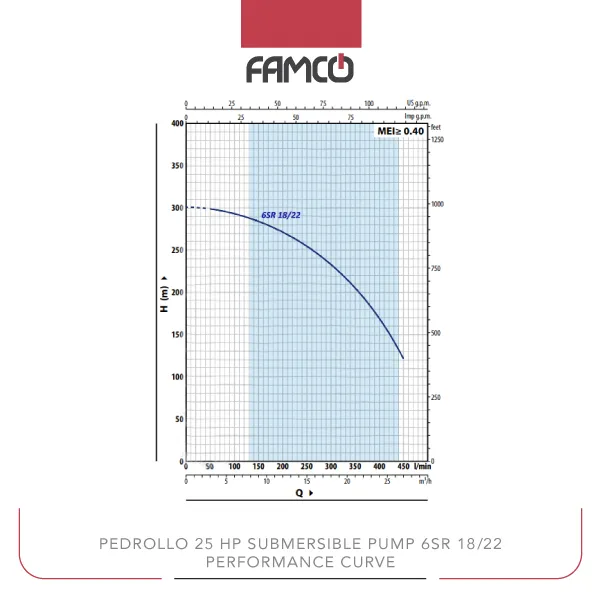

Pedrollo 25 HP Submersible Pump 6SR 18/22 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 298 | 296 | 291 | 282 | 270 | 252 | 230 | 202 | 165 | 118 |
Pedrollo 25 HP Submersible Pump 6SR 18/22 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply
- Industrial water transfer
Pedrollo 25 HP Submersible Pump 6SR 18/22 Benefits
- High efficiency with a powerful motor and high flow rate
- Durable construction with corrosion-resistant materials
- Suitable for deep water and sandy conditions
- Reliable continuous operation for demanding tasks
Pedrollo 25 HP Submersible Pump 6SR 18/22 Price List
| No. | Name | Price |
| 1 | Pedrollo 25 HP Submersible Pump 6SR 18/22 Price | Contact us |
