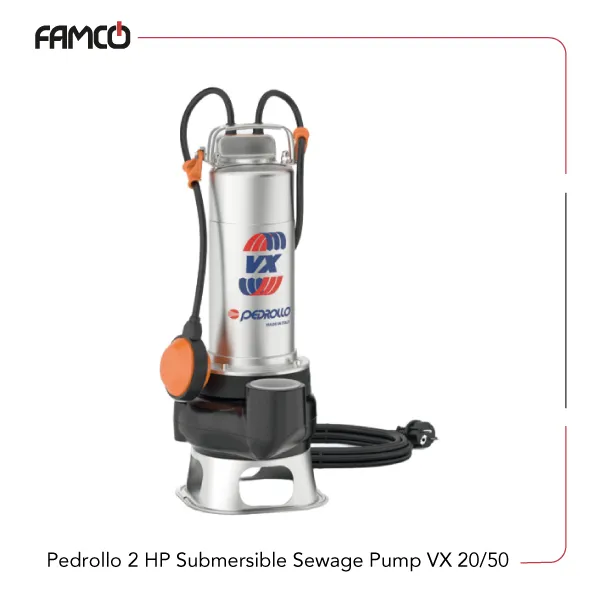

Pedrollo 2 HP Submersible Sewage Pump VX 20/50 Specifications
This pump features a durable cast iron body and a VORTEX impeller made from high-quality AISI 304 stainless steel, ensuring resistance to corrosion and efficient handling of various liquids. It is equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, graphite, and NBR materials for enhanced durability and leak prevention. Operating at approximately 2900 rpm, the VX 20/50 Pedrollo sewage pump delivers a flow rate of 750 liters per minute and a maximum head of 13.5 meters. It supports both single-phase and three-phase power supplies, with voltages of 230V and 400V, respectively, and a frequency of 50Hz. The device weighs 20.7 kg in single-phase and 18.5 kg in three-phase configurations, making it relatively lightweight for its class. Designed to operate in liquids up to 40°C, it can be submerged up to 5 meters deep. The Pedrollo submersible pump features insulation rated at Class F, providing good thermal resistance, and an IP X8 protection rating, ensuring safety against water ingress during operation. Its robust construction and high-performance seals make it suitable for various industrial and domestic applications, especially where reliable liquid transfer is needed in challenging environments.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | VORTEX type in AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide / Graphite / NBR |
| Double mechanical seal on motor side | Silicon carbide / Silicon carbide / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 13.5 |
| Flow rate (l/min) | 750 |
| Voltage (V) | 230, 400 |
| Frequency (Hz) | 50 |
| Weight (kg) | 20.7 (single-phase), 18.5 (three-phase) |
| Max. Liquid temperature (°C) | +40 °C |
| Max. immersion depth (m) | 5 |
| Insulation | Class F |
| Protection | IP X8 |
Pedrollo 2 HP Submersible Sewage Pump VX 20/50 Performance Data
| m³/h | 0 | 3 | 6 | 12 | 18 | 24 | 27 | 30 | 33 | 36 | 39 | 45 |
| l/min | 0 | 50 | 100 | 200 | 300 | 400 | 450 | 500 | 550 | 600 | 650 | 750 |
| H metres | 13.5 | 13 | 12.5 | 11.5 | 10.7 | 9.5 | 9 | 8 | 7.5 | 6.5 | 5 | 2.5s |
Pedrollo 2 HP Submersible Sewage Pump VX 20/50 Applications
- Water transfer in industrial facilities
- Drainage and sewage management
- Irrigation systems
- Flood control and water removal
Pedrollo 2 HP Submersible Sewage Pump VX 20/50 Benefits
- Durable cast iron construction for long-lasting use
- Corrosion-resistant stainless steel impeller
- Supports both single and three-phase power supplies
- High flow rate and reliable performance
Pedrollo 2 HP Submersible Sewage Pump VX 20/50 Price List
| No. | Name | Price |
| 1 | Pedrollo 2 HP Submersible Sewage Pump VX 20/50 Price | Contact us |
