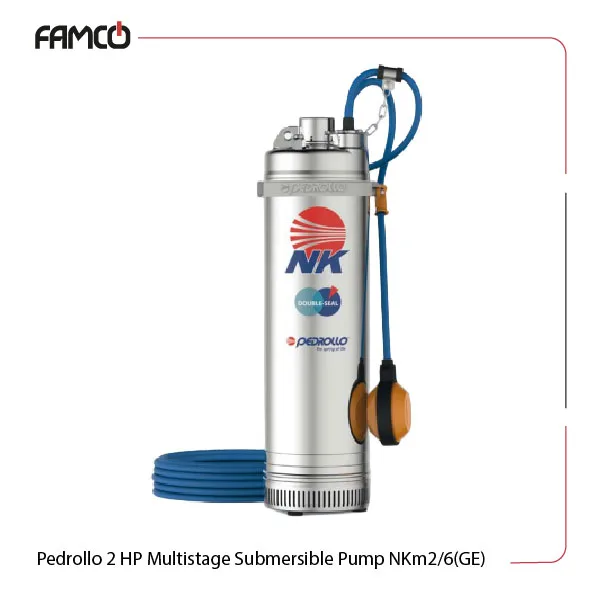

Pedrollo 2 HP Multistage Submersible Pump NKm2/6(GE) Specifications
This product features a powerful 1.5 kW motor, which is the equivalent of 2 HP. It operates efficiently with a head range of 48 to 92 meters. The unit is designed for both single-phase (230 V) and three-phase (400 V) power supply. This pump weighs 18.6 kg for single-phase and 17.3 kg for three-phase, which makes this series of Pedrollo pumps manageable yet sturdy. The frequency is set at 50 Hz, so it is compatible with standard electrical systems. The insulation class of F enables this submersible pump to provide excellent thermal protection. The IP X8 rating guarantees water resistance in submersion tasks up to 20 meters. It can handle liquid temperatures up to +40 °C and has a maximum sand content of 150 g/m³. The double mechanical seals on both the motor and pump sides are made from quality materials.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 48-92 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase (kg) | 18.6 |
| Weight in three-phase (kg) | 17.3 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content | 150 g/m³ |
Pedrollo 2 HP Multistage Submersible Pump NKm2/6(GE) Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 2 HP Multistage Submersible Pump NKm2/6(GE) Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 97 | 94 | 90 | 82 | 76 | 68.5 | 59.5 | 48 |

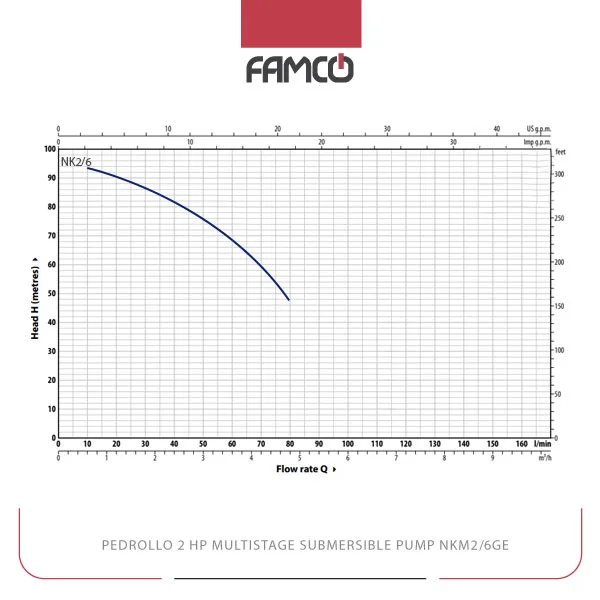

Pedrollo 2 HP Multistage Submersible Pump NKm2/6GE Performance Curve
Pedrollo 2 HP Multistage Submersible Pump NKm2/6GE Applications
- Water transfer for irrigation systems
- Drainage in construction sites
- Sewage and wastewater management
- Aquaculture and fish farming
Pedrollo 2 HP Multistage Submersible Pump NKm2/6GE Benefits
- High efficiency with a powerful motor
- Durable construction with advanced sealing
- Versatile applications across various industries
- Water-resistant design for reliable performance
Pedrollo 2 HP Multistage Submersible Pump NKm2/6GE Price List
| No. | Name | Price |
| 1 | Pedrollo 2 HP Multistage Submersible Pump NKm2/6GE Price | Contact us |
