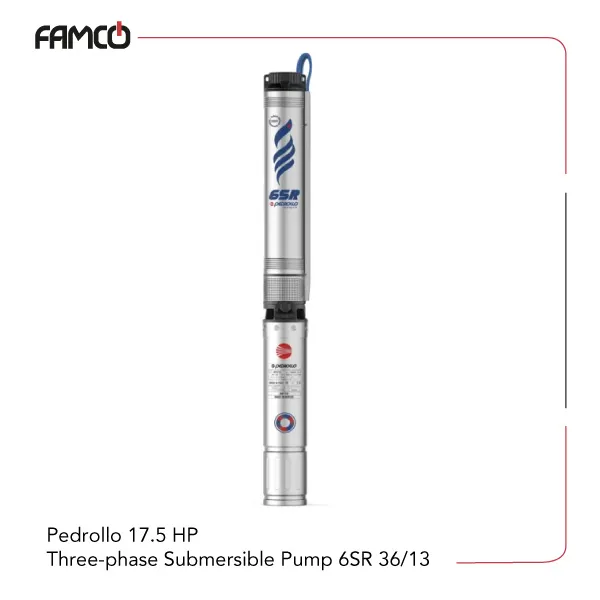

Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 36/13 Specifications
This 6SR Pedrollo pump is designed for demanding water extraction tasks. It operates efficiently at a maximum liquid temperature of +35 °C and can handle sand content up to 100 grams per cubic meter. The Pedrollo pump is suitable for vertical installation and can operate at depths of up to 200 meters when equipped with 6PD motors, or 150 meters with 6PSR motors. It features a powerful 13 kW (17.5 HP) motor, capable of delivering a maximum flow rate of 800 liters per minute and a head height of 162 meters. The pump is configured for three-phase voltage and is designed for continuous operation under S1 duty cycle, making the Pedrollo submersible pump ideal for long-term use. It is compatible with well diameters of 6 inches (153 mm). The impellers are made from Noryl™ and are coated with a special elastomer resistant to sand abrasion, ensuring durability. The diffusers are also made from Noryl™, and the pump shaft is constructed from AISI 304 stainless steel, providing corrosion resistance and strength. The pump can be supplied with motors that are either 6PD rewindable and oil-filled or 6PSR rewindable and water-filled, offering flexibility based on operational needs. It weighs approximately 92.5 kg for the PD model and 106.5 kg for the PSR model, ensuring stability during operation.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 162 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 13 |
| Power (HP) | 17.5 |
| Max. flow rate (l/min) | 800 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight | 92.5 kg (PD), 106.5 kg (PSR) |

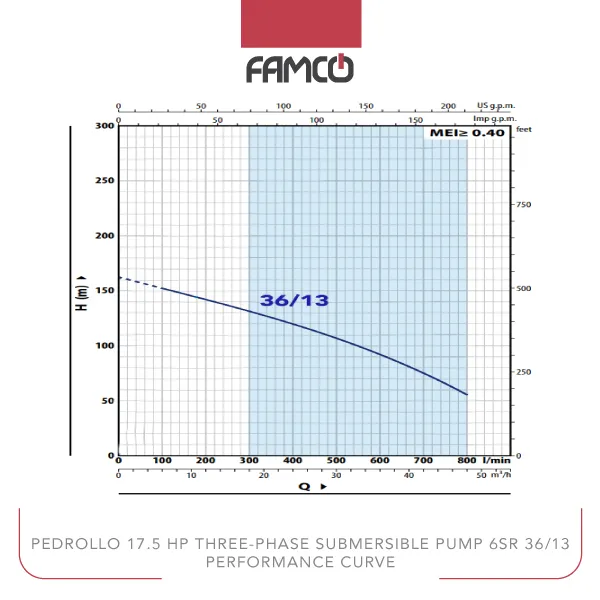

Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 36/13 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| head (m) | 162 | 152 | 142 | 131 | 119 | 106 | 91 | 74.5 | 54.5 |
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 36/13 Applications
- Deep well water extraction
- Irrigation systems
- Municipal water supply
- Industrial water transfer
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 36/13 Benefits
- High flow rate and strong head for efficient water pumping
- Durable materials resist sand and corrosion
- Suitable for deep water applications up to 200 meters
- Flexible motor options for different operational needs
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 36/13 Price List
| No. | Name | Price |
| 1 | Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 36/13 Price | Contact us |
There are no reviews yet.
