Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 27/12 Specifications
This robust pump is designed for efficient water extraction in various conditions. It features a powerful 13 kW (17.5 HP) motor, capable of delivering a maximum flow rate of 600 liters per minute and a head height of 164 meters. The pump operates in a vertical position and is suitable for well diameters of 6 inches (153 mm). It can handle water temperatures up to +35°C and is equipped with impellers made from Noryl™ and coated with a special elastomer resistant to sand, giving this Pedrollo submersible pump increased durability in sandy environments. The diffusers are also made from Noryl™, contributing to the pump’s overall resilience. The shaft is constructed from AISI 304 stainless steel, providing corrosion resistance. It can operate at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors, making this Pedrollo pump versatile for deep well applications. The pump is designed for continuous operation (S1 duty cycle) and can start up to 20 times per hour at regular intervals. It requires a minimum cooling flow of 8 cm/s to maintain optimal performance. The pump weighs 82.8 kg with a 6PD motor and 96.8 kg with a 6PSR motor. It is compatible with motors that are either oil-filled or water-filled, both rewindable, offering flexibility depending on operational needs.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 164 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | 6PD motors:’200 m, 6PSR motors: 150 m |
| Operation | Vertical position |
| Starts per hour | 20 |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 13 |
| Power (HP) | 17.5 |
| Max. flow rate (l/min) | 600 |
| Voltage | Three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight | PD: 82.8, PSR: 96.8 |
| Extra | Motor options: 6PD rewindable and oil filled, 6PSR rewindable and water filled |

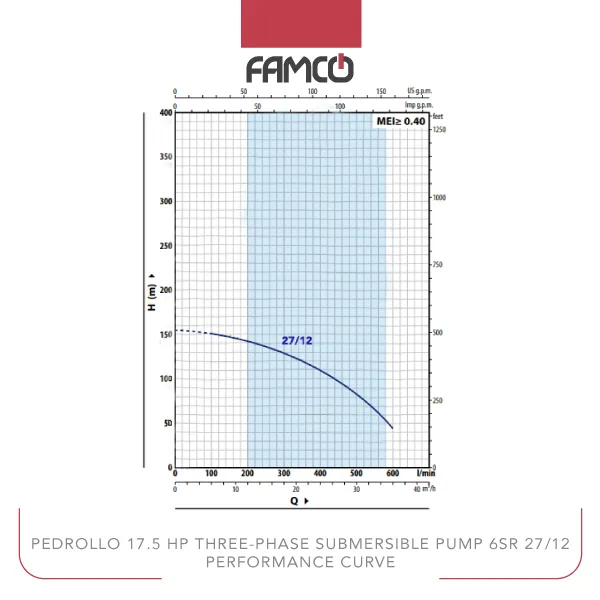

Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 27/12 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| head (m) | 164 | 159 | 149 | 137 | 120 | 89 | 53 |
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 27/12 Applications
- Deep well water extraction
- Municipal water supply systems
- Industrial water pumping
- Agricultural irrigation
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 27/12 Benefits
- High flow rate and strong head height for efficient water delivery
- Durable construction with sand-resistant impellers and stainless steel shaft
- Suitable for deep water levels up to 200 meters
- Flexible motor options for various operational needs
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 27/12 Price List
| No. | Name | Price |
| 1 | Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 27/12 Price | Contact us |
