Pedrollo 15 HP Three-phase Submersible Pump 6SR 27/10 Specifications
This pump is designed for deep water applications, capable of operating at a maximum depth of 200 meters with 6PD motors and 150 meters with 6PSR motors. It handles water temperatures up to 35°C and can process water with sand content up to 100 grams per cubic meter. The Pedrollo submersible pump operates vertically and is suitable for well diameters of 6 inches or 153 millimeters. It features a powerful 11 kW (15 HP) motor, providing a maximum flow rate of 600 liters per minute and a head height of 136 meters. The pump is built with durable components, including Noryl™ impellers coated with a special elastomer resistant to sand abrasion, and Noryl™ diffusers. The shaft is made from AISI 304 stainless steel, ensuring corrosion resistance. It can start up to 20 times per hour at regular intervals, with a minimum cooling flow requirement of 8 centimeters per second. The Pedrollo pump is designed for continuous operation (S1 duty cycle) and is powered by a three-phase electrical supply. It weighs approximately 72.6 kg for the PD model and 89.3 kg for the PSR model, making it robust yet manageable for installation and maintenance.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 136 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | Vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Max. flow rate (l/min) | 600 |
| Voltage | Three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight | 72.6 kg (PD), 89.3 kg (PSR) |

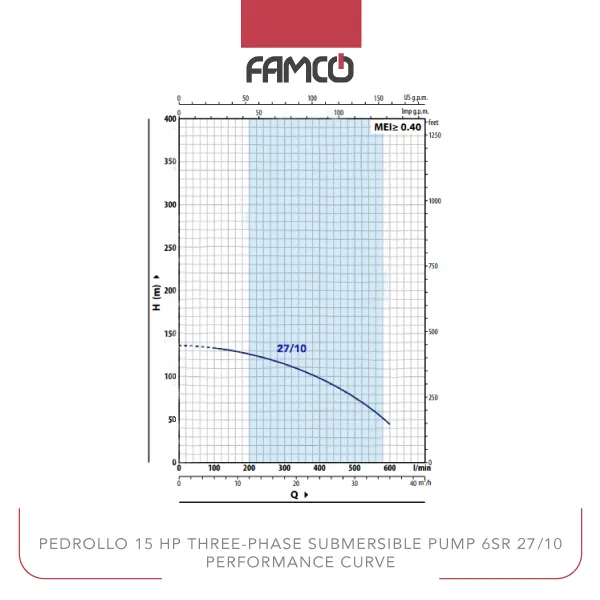

Pedrollo 15 HP Three-phase Submersible Pump 6SR 27/10 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| head (m) | 136 | 132 | 124 | 114 | 100 | 74 | 44 |
Pedrollo 15 HP Three-phase Submersible Pump 6SR 27/10 Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water transfer
Pedrollo 15 HP Three-phase Submersible Pump 6SR 27/10 Benefits
- High efficiency with a maximum flow rate of 600 l/min
- Durable construction with corrosion-resistant materials
- Suitable for deep water applications up to 200 meters
- Sand-resistant impellers extend pump lifespan
Pedrollo 15 HP Three-phase Submersible Pump 6SR 27/10 Price List
| No. | Name | Price |
| 1 | Pedrollo 15 HP Three-phase Submersible Pump 6SR 27/10 Price | Contact us |
