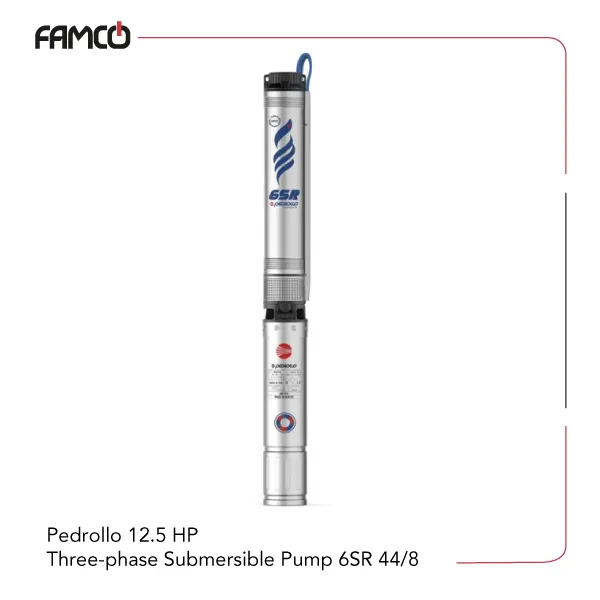

Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 44/8 Specifications
This robust vertical pump is designed for deep water applications, capable of operating at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors. It handles water temperatures up to 35°C and can process water with sand content up to 100 grams per cubic meter. The Pedrollo pump is suitable for well diameters of 6 inches (153 mm) and features a maximum flow rate of 1000 liters per minute, making it ideal for various water transfer tasks. It operates with a power of 9.2 kW (12.5 HP) and is configured for three-phase voltage supply. The pump runs continuously in an S1 duty cycle, with up to 20 starts per hour at regular intervals, ensuring reliable operation in demanding environments. Its impellers are made from Noryl™ and coated with a special elastomer resistant to sand abrasion, while the diffusers are also crafted from Noryl™. The shaft is constructed from durable AISI 304 stainless steel, providing corrosion resistance and strength. The Pedrollo submersible pump weighs 72.4 kg for the PD model and 88.8 kg for the PSR model, reflecting its sturdy build. It requires a minimum cooling flow of 8 cm/s to maintain optimal performance. The pump can be supplied with different motor configurations, either 6PD rewindable and oil-filled or 6PSR rewindable and water-filled, offering flexibility for various operational needs.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 99 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 9.2 |
| Power (HP) | 12.5 |
| Max. flow rate (l/min) | 1000 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight (kg) | 72.4 (PD), 88.8 (PSR) |
| Extra | The pump can be supplied with motor: 6PD rewindable and oil filled or 6PSR rewindable and water filled |

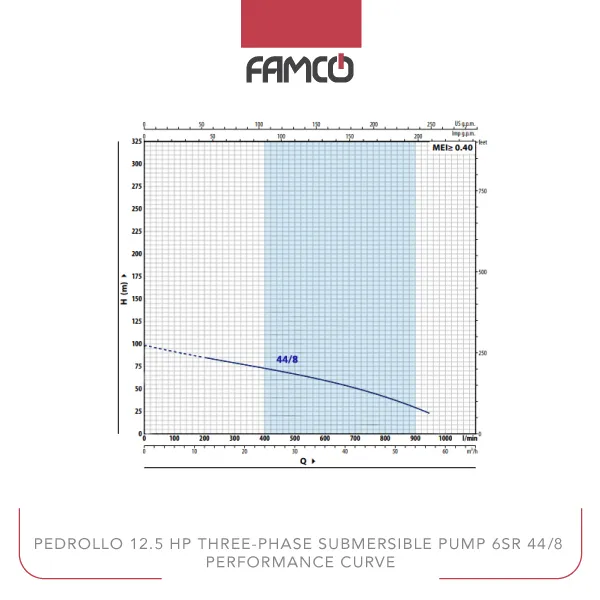

Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 44/8 Performance Data
| m³/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| head (m) | 99 | 86 | 80 | 74 | 67 | 60 | 51.5 | 41.5 | 30 | 15.5 |
Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 44/8 Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water transfer
Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 44/8 Benefits
- High durability with stainless steel shaft and sand-resistant impellers
- Flexible motor options for different environments
- Capable of operating at great depths up to 200 meters
- Reliable continuous operation with up to 20 starts per hour
Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 44/8 Price List
| No. | Name | Price |
| 1 | Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 44/8 Price | Contact us |
There are no reviews yet.
