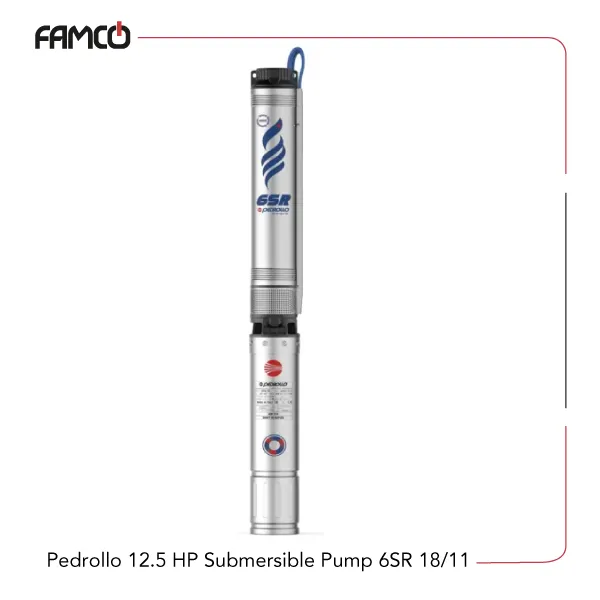

Pedrollo 12.5 HP Submersible Pump 6SR 18/11 Specifications
This robust pump is designed for deep water applications, capable of operating at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors. It handles water temperatures up to +35°C and can manage sand content up to 100 grams per cubic meter, turning this Pedrollo pump into a suitable choice for difficult tasks. The pump operates in a vertical position and is built for continuous use, with a duty cycle classified as S1. It features a powerful motor rated at 9.2 kW (12.5 HP), providing a maximum head of 149 meters and a flow rate of 450 liters per minute. The pump is configured for a three-phase power supply and is compatible with well diameters of 6 inches, equal to 153 mm. Its impellers are made from Noryl™, coated with a special elastomer resistant to sand. The diffusers are also made from Noryl™, and the pump shaft is constructed from AISI 304 stainless steel for corrosion resistance. Dimensions vary slightly depending on the model, with heights of 845 mm, 700 mm, and 1545 mm, and weights of 66.5 kg for the PD Pedrollo submersible pump model and 82.9 kg for the PSR model.
| Specification | Value |
| Liquid temperature | +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth with 6PD motors | 200 m |
| Maximum operating depth with 6PSR motors | 150 m |
| Operation position | Vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | 9.2 kW / 12.5 HP |
| Head | 149 m |
| Max flow rate | 450 l/min |
| Voltage | Three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ with special sand-resistant elastomer coating |
| Diffusers | Noryl™ |
| Pump shaft material | AISI 304 stainless steel |
Pedrollo 12.5 HP Submersible Pump 6SR 18/11 Applications Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 1324 | 1324 | |
| h2 | 765 | 750 | |
| h3 | 2089 | 2074 | |
| Weight (kg) | 83.6 | 100.3 | |
Pedrollo 12.5 HP Submersible Pump 6SR 18/11 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 149 | 148 | 145.5 | 141 | 135 | 126 | 115 | 101 | 83 | 59 |
Pedrollo 12.5 HP Submersible Pump 6SR 18/11 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water treatment
Pedrollo 12.5 HP Submersible Pump 6SR 18/11 Benefits
- High durability with stainless steel shaft and sand-resistant impellers
- Capable of operating at great depths up to 200 meters
- Suitable for continuous operation with a reliable duty cycle
- Handles sand content efficiently, reducing maintenance needs
Pedrollo 12.5 HP Submersible Pump 6SR 18/11 Price List
| No. | Name | Price |
| 1 | Pedrollo 12.5 HP Submersible Pump 6SR 18/11 Price | Contact us |
There are no reviews yet.
