Pedrollo 1.5 HP Submersible Sewage Pump VX 15/35 Specifications
This pump features a durable cast iron body and a VORTEX impeller made from high-quality AISI 304 stainless steel, ensuring corrosion resistance and efficient handling of liquids. It is equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, graphite, and NBR materials for enhanced durability and leak prevention. Operating at approximately 2900 rpm, the 15/35 Pedrollo submersible pump, from the VX series, delivers a flow rate of 500 liters per minute and a head of 14 meters, making it suitable for various fluid transfer applications. The device supports both single-phase and three-phase power supplies, with voltages of 230V and 400V, and a frequency of 50Hz. Its compact design weighs 18 kg for single-phase and 16.4 kg for three-phase models, facilitating easy installation and maintenance. The pump can operate in liquids up to 40°C and can be immersed up to 5 meters deep. This Pedrollo sewage pump features a Class F insulation system for safety and efficiency, along with an IP X8 protection rating, ensuring reliable operation in demanding environments. Overall, this pump is ideal for applications requiring robust construction, corrosion resistance, and high performance in fluid handling tasks.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | VORTEX type in AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide / Graphite / NBR |
| Double mechanical seal on motor side | Silicon carbide / Silicon carbide / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 14 |
| Flow rate (l/min) | 500 |
| Voltage (V) | 230, 400 |
| Frequency (Hz) | 50 |
| Weight (kg) | 18, 16.4 |
| Max Liquid temperature (°C) | +40 °C |
| Max immersion depth (m) | 5 |
| Insulation | Class F |
| Protection | IP X8 |

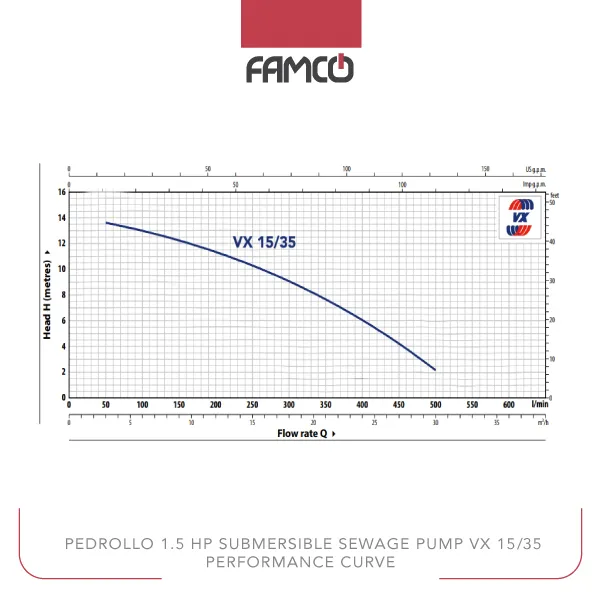

Pedrollo 1.5 HP Submersible Sewage Pump VX 15/35 Performance Data
| m³/h | 0 | 3 | 6 | 12 | 18 | 21 | 24 | 27 | 30 |
| l/min | 0 | 50 | 100 | 200 | 300 | 350 | 400 | 450 | 500 |
| H metres | 14 | 13.5 | 12.8 | 11.2 | 9 | 7.7 | 6 | 4 | 2 |
Pedrollo 1.5 HP Submersible Sewage Pump VX 15/35 Applications
- Water circulation in industrial systems
- Drainage and wastewater management
- Irrigation systems
- Chemical transfer in processing plants
Pedrollo 1.5 HP Submersible Sewage Pump VX 15/35 Benefits
- Durable cast iron construction for long-lasting use
- Corrosion-resistant stainless steel impeller
- Double mechanical seals for leak prevention
- Supports multiple voltage options for versatility
Pedrollo 1.5 HP Submersible Sewage Pump VX 15/35 Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Submersible Sewage Pump VX 15/35 Price | Contact us |
