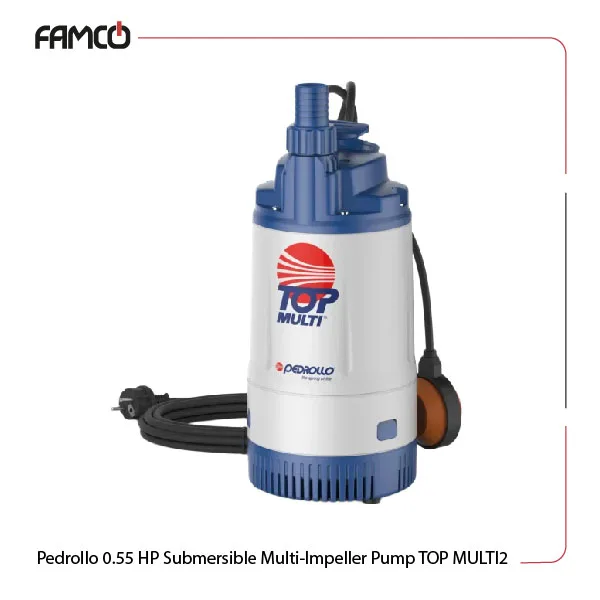

Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Specifications
This product could be the final solution for your water management needs. The Top Multi2 operates at a maximum depth of 10 meters and can handle liquid temperatures up to 40 °C. This pump has a draining capability of 35 mm on the bottom side. It also includes a float switch and anti-vibration feet for stability. The voltage requirement is 230V, with a power output of 0.55 kW (0.75 HP). The head range in this series of Pedrollo pumps is between 6 and 40 meters to make it as versatile as possible in different settings. This pump body is made from durable technopolymer, while the impellers are crafted from Noryl™ to give them strength and longevity. Additionally, these submersible pumps feature a double mechanical seal for enhanced reliability that stems from the use of high-quality materials like ceramic, graphite, and NBR.
| Specification | Value |
| Maximum operating depth below water level | 10 m max. |
| Liquid temperature | up to +40 °C |
| Draining capability | up to 35 mm on the bottom side |
| Includes | Float switch, Anti-vibration feet |
| Voltage (V) | 230 |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 6-40 |
Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Materials
- body: Technopolymer
- Impellers: Noryl™
- Double mechanical seal on Motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: SIC/Graphite/NBR
Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||
| PORT
DN |
a | h | 6.9 |
| 1¼” | 178 | 380 | |
Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Technical Data
| m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.5 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 75 | 80 |
| H (m) | 40 | 38.5 | 36 | 32.5 | 28 | 23 | 17.7 | 12 | 9 | 6 |
Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Performance Curve
Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Applications
- Residential drainage systems
- Irrigation for gardens and farms
- Construction site dewatering
- Aquarium water circulation
Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Benefits
- High efficiency with low power consumption
- Durable materials for long-lasting use
- Versatile applications across different settings
- Easy installation with included accessories
Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Price List
| No. | Name | Price |
| 1 | Pedrollo 0.55 HP Submersible Multi-Impeller Pump TOP MULTI2 Price | Contact us |
