MTU 880 kVA Diesel Generator Set 12V1600DS880 Specifications
This generator offers 880 kVA standby power with a voltage range of 380-415V and a frequency of 50Hz. It features advanced cooling options, including air-to-air and water-to-air charge air cooling, with optimal performance in various environments. The engine is a 4-cycle, 12V arrangement with a displacement of 22.44 liters, with a rated speed of 1500 RPM. This MTU dg set has a large fuel tank capacity of 800 liters, which provides long operational hours, with fuel consumption rates of 181.1 liters per hour at full load, 138.2 liters at 75%, and 96.4 liters at half load. This MTU diesel generator is powered by Leroy Somer, a reputable brand known for durability and efficiency.
The unit’s oil capacity is 72.5 liters, and its coolant capacity is 65 liters, supporting continuous operation. The generator can be housed in various configurations, including open power units and enclosed units, with optional sound attenuation enclosures that reduce noise levels to 78 dB(A).
Dimensions vary depending on the configuration, with open units measuring approximately 3630-3762 mm in length, 1960-2095 mm in width, and weighing between 5450-5700 kg. Enclosed units are reasonably larger, with lengths of 5900 mm and weights up to 9000 kg. Adding the canopy to the diesel genset has its merits, since it provides protection and noise control. See full specs below.
| Specification | Value |
| Standby power (kVA) | 880 |
| Voltage (V) | 380-415 |
| Frequency (Hz) | 50 |

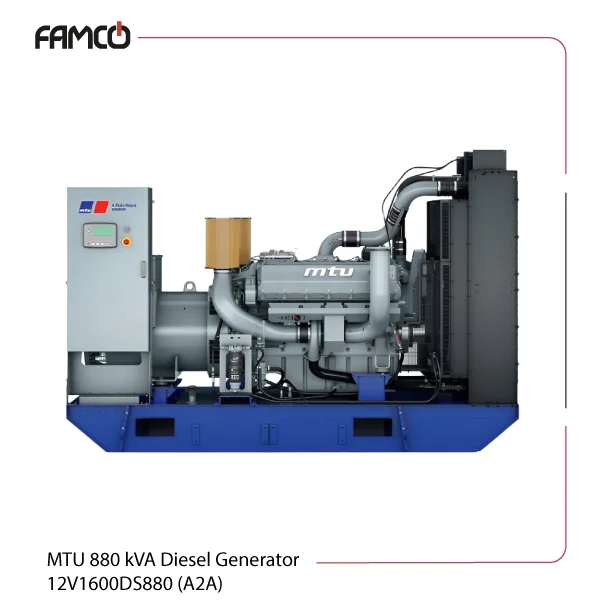

| Cooling system | Air-to-air charge air cooling (A2A/TD) |

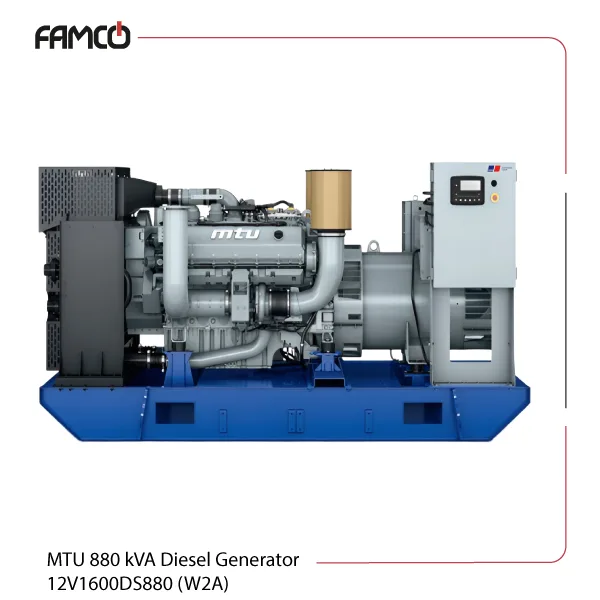

| Water-to-air charge-air cooling (W2A/TB) | |
| Engine type | 4-cycle, 12V arrangement |
| Displacement (L) | 22.44 |
| Rated rpm speed | 1500 |
| Fuel tank capacity (L) | 800 |
| Fuel consumption at 100% load (l/h) | 181.1 |
| Fuel consumption at 75% load (l/h) | 138.2 |
| Fuel consumption at 50% load (l/h) | 96.4 |
| Total oil capacity (L) | 72.5 |
| Total coolant capacity (L) | 65 |
| Generator brand | Leroy Somer |

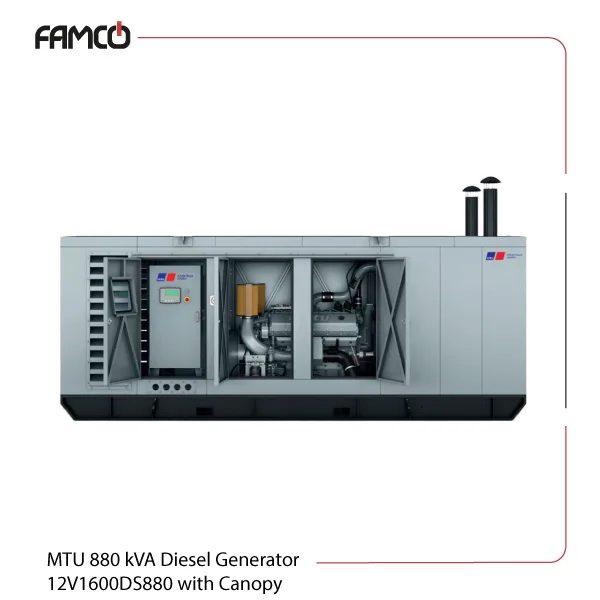

| Canopy enclosure | Optional, Basic sound attenuation “Silent” 78 dB(A) |

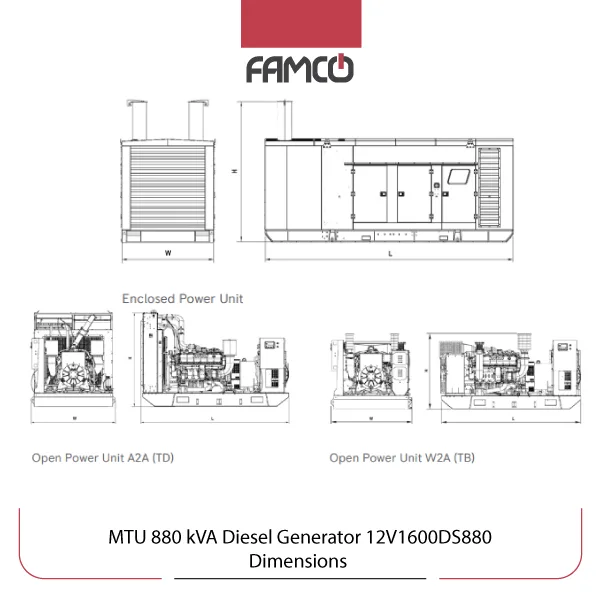

MTU 880 kVA Diesel Generator Set 12V1600DS880 Dimensions and Weight
| System | Dimensions (LxWxH) | Weight (wet/with standard accessories) |
| Open power unit (OPU) (A2A/TD) | 3630 x 2060 x 2525 mm | 5700 kg |
| Open power unit (OPU) (W2A/TB) | 3762 x 2095 x 1960 mm | 5450 kg |
| Enclosed power unit (EPU) without tail pipe | 5900 x 2245 x 2530 mm | 8900 kg |
| Enclosed power unit (EPU) with tail pipe | 5900 x 2245 x 3500 mm | 9000 kg |
MTU 880 kVA Diesel Generator Set 12V1600DS880 Applications
- Industrial power backup
- Construction sites
- Hospitals and healthcare facilities
- Data centers and server rooms
MTU 880 kVA Diesel Generator Set 12V1600DS880 Benefits
- High power output of 880 kVA for demanding applications
- Flexible cooling options for various environments
- Long operational hours thanks to large fuel tank
- Reduced noise levels with optional soundproof enclosures
MTU 880 kVA Diesel Generator Set 12V1600DS880 Price List
| No. | Name | Price |
| 1 | MTU 880 kVA Diesel Generator Set 12V1600DS880 Price | Contact us |
