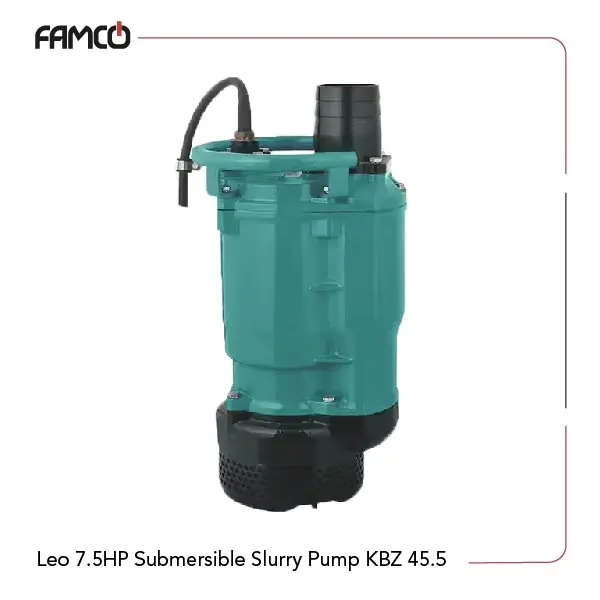

Leo 7.5HP Submersible Slurry Pump KBZ 45.5 Specifications
Leo 7.5HP submersible slurry pump KBZ 45.5 is designed with a powerful cast iron construction for durability. It also features a steel handle to make it more maneuverable. The motor and pump’s body are also made of cast iron to maximize longevity. The mechanical seal is chosen with utmost care being Sic-Sic/Sic-Sic with excellent sealing performance. The impeller and inlet plate are crafted from high chrome alloy to enhance resistance to wear and corrosion. Data shows this Leo submersible pump can handle a maximum liquid temperature of +40℃ and has an impressive maximum immersion depth of 25 meters. The winding is made of copper to ensure efficient performance. With an insulation class of B and a protection class of IP68, this pump is withstands harsh conditions. The maximum flow rate is 105 m³/h (1.75 m³/min), with an impeller passage of 8.5 mm, making it suitable for various applications.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max. Immersion depth | 25 m |
| Insulation class | B |
| Protection class | IP68 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max head | 23 |
| Max Flow rate (m³ /h) | 105 |
| Max Flow rate (l /min) | 1175 |
| Impeller Passage (mm) | 8.5 |
Leo 7.5HP Submersible Slurry Pump KBZ 45.5 Materials
- Hose coupling: Cast Iron
- Motor Cover: Cast Iron
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW )
- Handle: Steel
- Impeller: High Chrome alloy
- Pump Body: Cast Iron
- Inlet Plate: Ductile Iron
- Winding: Copper
Leo 7.5HP Submersible Slurry Pump KBZ 45.5 Performance Curve
Leo 7.5HP Submersible Slurry Pump KBZ 45.5 Applications
- Deep well water extraction
- Irrigation systems
- Industrial liquid transfer
- Sewage and wastewater management
Leo 7.5HP Submersible Slurry Pump KBZ 45.5 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate for efficient liquid movement
- Suitable for deep immersion applications
- Reliable performance in harsh conditions
Leo 7.5HP Submersible Slurry Pump KBZ 45.5 Price List
| No. | Name | Price |
| 1 | Leo 7.5HP Submersible Slurry Pump KBZ 45.5 Price | Contact us |
